35Modul-AIR Exhaust Air Heat Pump Installation Guide
Modul-AIR Timber Stud Build-up
The exploded view on the following page details the required wall build-up to adequately support the
Modul-AIR if the dwelling has timber studs. The wall build-up incorporates extra timber support noggins for
the Modul-AIR bracket to be directly fixed to. The build-up also incorporates a sheet of 3/4” plywood fixed
directly to the stud before the plasterboard is used as the standard wall finish.
Item Description Qty.
1 Modul-AIR 1
2 Modul-AIR Wall Bracket 1
3 Timber Noggin 7
4 Concrete Floor Slab 1
5 ¾” Plywood Sheet 1
6 Standard Wall Finish 1
7 Heavy Hex Flange Screw, M8 X 80 4
8 Timber Stud Wall 4
N.B. Must be installed using timber studs.

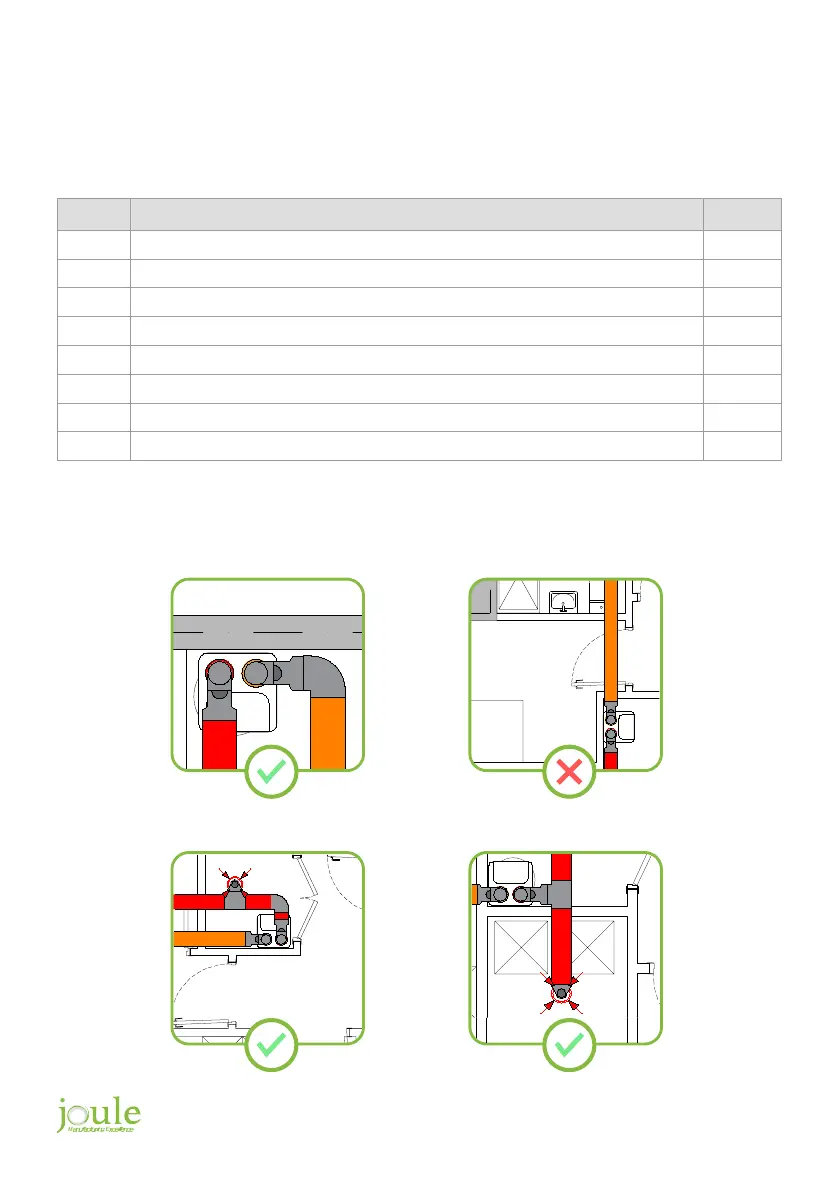

EX
Modul-AIR
220/90
BEND
H-90°
Solid External Party Wall
Internal Wall Adjoining Hallway Internal Wall Adjoining Utility
Internal Wall Adjoining Bedroom
Modul-AIR
EXHAUST 220/90 X 2M DUCT
STORE
BEDROOM
EX
220/90 X 2M DUCT
Modul-AIR
220/90
BEND
H-90°
STORE
HALLWAY
T-PIECE
220/90
220/90
125Ø
EXTRACT
VALVE
Modul-AIR
T-PIECE
220/90
220/90
125Ø
EXTRACT
VALVE
STORE
UTILITY
