37Modul-AIR Exhaust Air Heat Pump Installation Guide
Modul-AIR and Green Comfort Timber Stud Build-up
The exploded view on the following page details the required wall build-up to adequately support the Modul-AIR
and Green Comfort module if the dwelling has timber studs. The wall build-up incorporates extra timber support
noggins for the Modul-AIR and Green Comfort brackets to be directly fixed to. The build-up also incorporates a
sheet of 3/4” plywood fixed directly to the stud before the plasterboard is used as the standard wall finish.

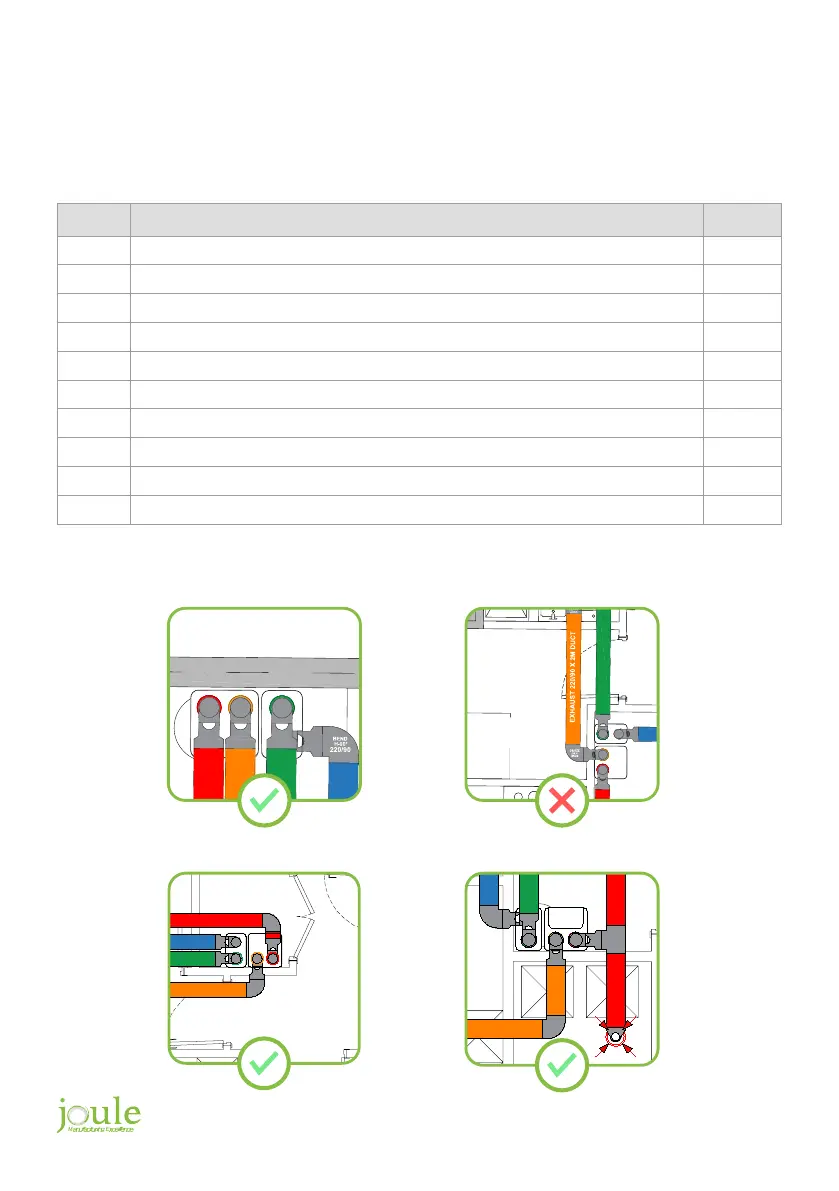

Item Description Qty.
1 Modul-AIR 1
2 Green Comfort 1
3 Modul-AIR Wall Bracket 1
4 Green Comfort Wall Bracket 1
5 Heavy Hex Flange Screw, M8 X 80 4
6 Standard Wall Finish 1
7 ¾” Plywood Sheet 1
8 Timber Stud Wall 4
9 Timber Noggin 8
10 Concrete Floor Slab 1
N.B. Must be installed using timber studs.
Solid External Party Wall
Internal Wall Adjoining Hallway Internal Wall Adjoining Utility
Internal Wall Adjoining Bedroom
STORE
HALLWAY
EXTRACT 220/90 X 2M DUCT
BEND
H-90°
220/90
BEND
H-90°
220/90
220/90
BEND
H-90°
T-PIECE
220/90
220/90
125Ø
STORE
EXTRACT
VALVE
220/90
BEND
H-90°
Modul-AIR
To Next Page
