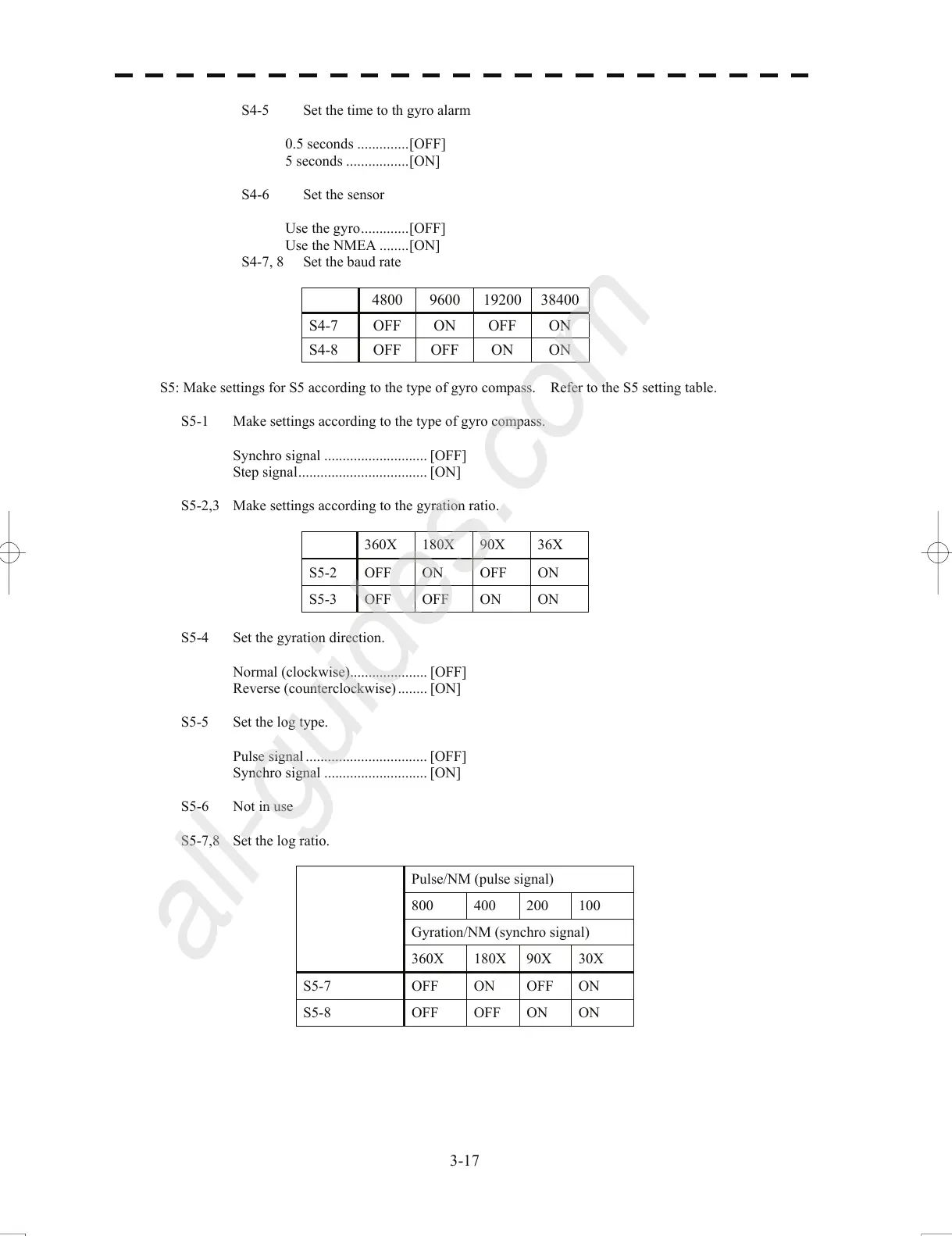

S4-5 Set the time to th gyro alarm
0.5 seconds ..............[OFF]
5 seconds .................[ON]
S4-6 Set the sensor
Use the gyro.............[OFF]
Use the NMEA ........[ON]
S4-7, 8 Set the baud rate
4800 9600 19200 38400
S4-7 OFF ON OFF ON
S4-8 OFF OFF ON ON
S5: Make settings for S5 according to the type of gyro compass. Refer to the S5 setting table.
S5-1 Make settings according to the type of
gyro
compass.
Synchro signal ............................ [OFF]
Step signal................................... [ON]
S5-2,3 Make settings according t
o
the gyration ratio.
360X 180X 90X 36X
S5-2 OFF ON OFF ON
S5-3 OFF OFF ON ON
S5-4 Set the gyration direction.
Normal (clockwise)..................... [OFF]
Reverse (counterclockwise) ........ [ON]
S5-5 Set the log type.
Pulse signal ................................. [OFF]
Synchro signal ............................ [ON]
S5-6 Not in use
S5-7,8 Set the log ratio.
Pulse/NM (pulse signal)
800 400 200 100
Gyration/NM (synchro signal)
360X 180X 90X 30X
S5-7 OFF ON OFF ON
S5-8 OFF OFF ON ON
