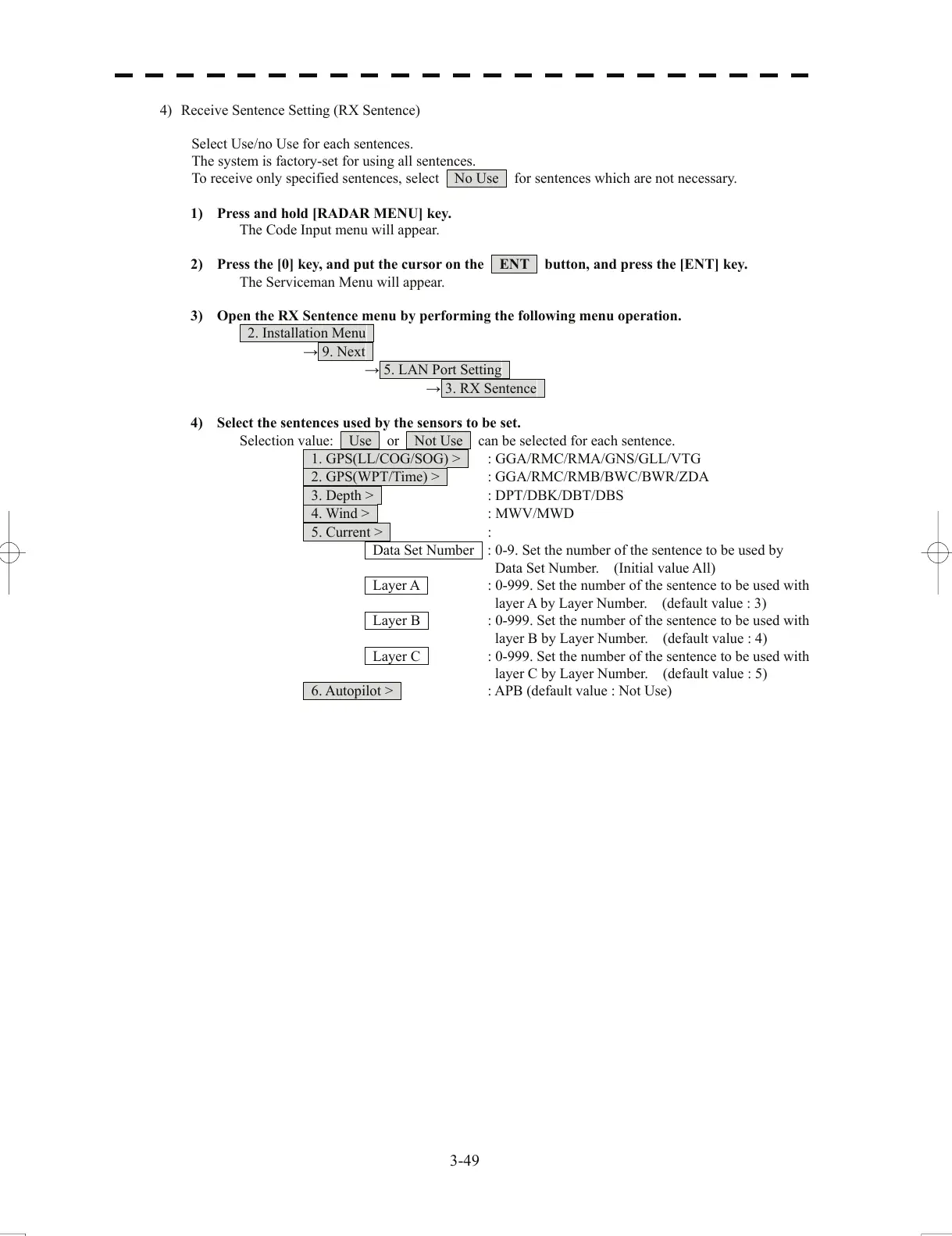

4) Receive Sentence Setting (RX Sentence)
Select Use/no Use for each sentences.
The system is factory-set for using all sentences.
To receive only specified sentences, select No Use for sentences which are not necessary.
1) Press and hold [RADAR MENU] key.
Th
e Code Input menu will appear.
2) Press the [0] key, and put the cursor on the ENT button, and press the [ENT] key.
The Serviceman Menu will appear.
3) Open
the RX Sentence menu by performing the
following menu operation.
2. Installation Menu
→ 9. Next
→ 5. LAN Port Setting
→ 3. RX Sentence
4) Select the sentences use
d by the sensors to be set.
Selection value: Use or Not Use can be selected for each sentence.
1. GPS(LL/COG/SOG) > : GGA/RMC/RMA/GNS/GLL/VTG
2. GPS(WPT/Time) > : GGA/RMC/RMB/BWC/BWR/ZDA
3. Depth > : DPT/DBK/DBT/DBS
4. Wind > : MWV/MWD
5. Current > :
Data Set Number : 0-9. Set the number of the sentence to be used by
Data Set Number. (Initial value All)
Layer A : 0-999. Set the number of
the sentence to be used with
layer A by Layer Number. (default value : 3)
Layer B : 0-999. Set the number of
the sentence to be used with
layer B by Layer Number. (default value : 4)
Layer C : 0-999. Set the number of
the sentence to be used with
layer C by Layer Number. (default value : 5)
6. Autopilot > : APB (default value : Not Use)
3-49
