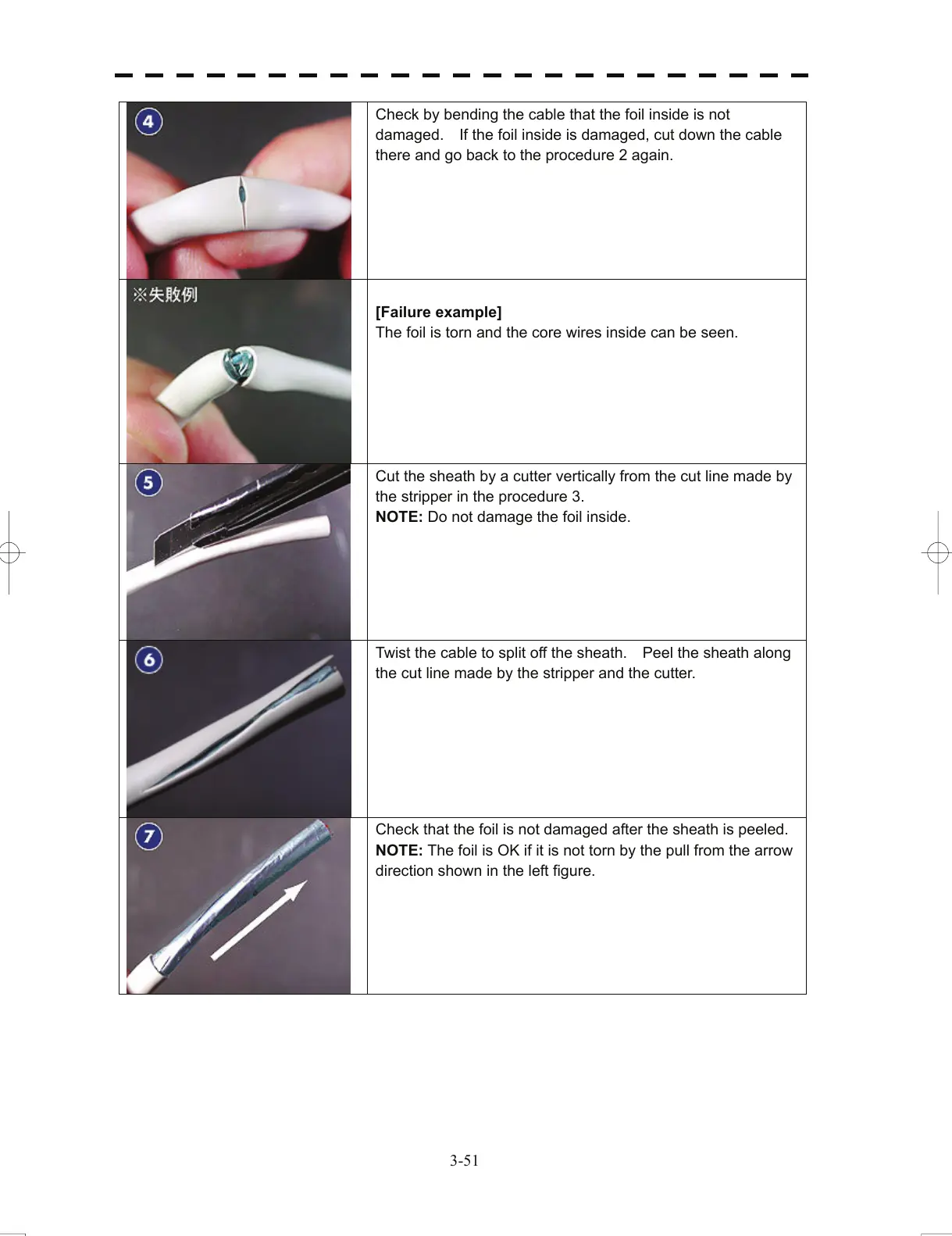

Check by bending the cable that the foil inside is not
damaged. If the foil inside is damaged, cut down the cable
there and go back to the procedure 2 again.
[Failure example]
The foil is torn and the core wires inside can be seen.
Cut the sheath by a cutter vertically from the cut line made by
the stripper in the procedure 3.
NOTE: Do n
o
t damage the foil inside.
Twist the cable to split off the sheath. Peel the sheath along
the cut line made by the stripper and the cutter.
Check that the foil is not damaged after the sheath is peeled.
NOTE: The foil is OK if it is not torn by the pull from the arrow
direction shown in the lef
t figure.
3-51
