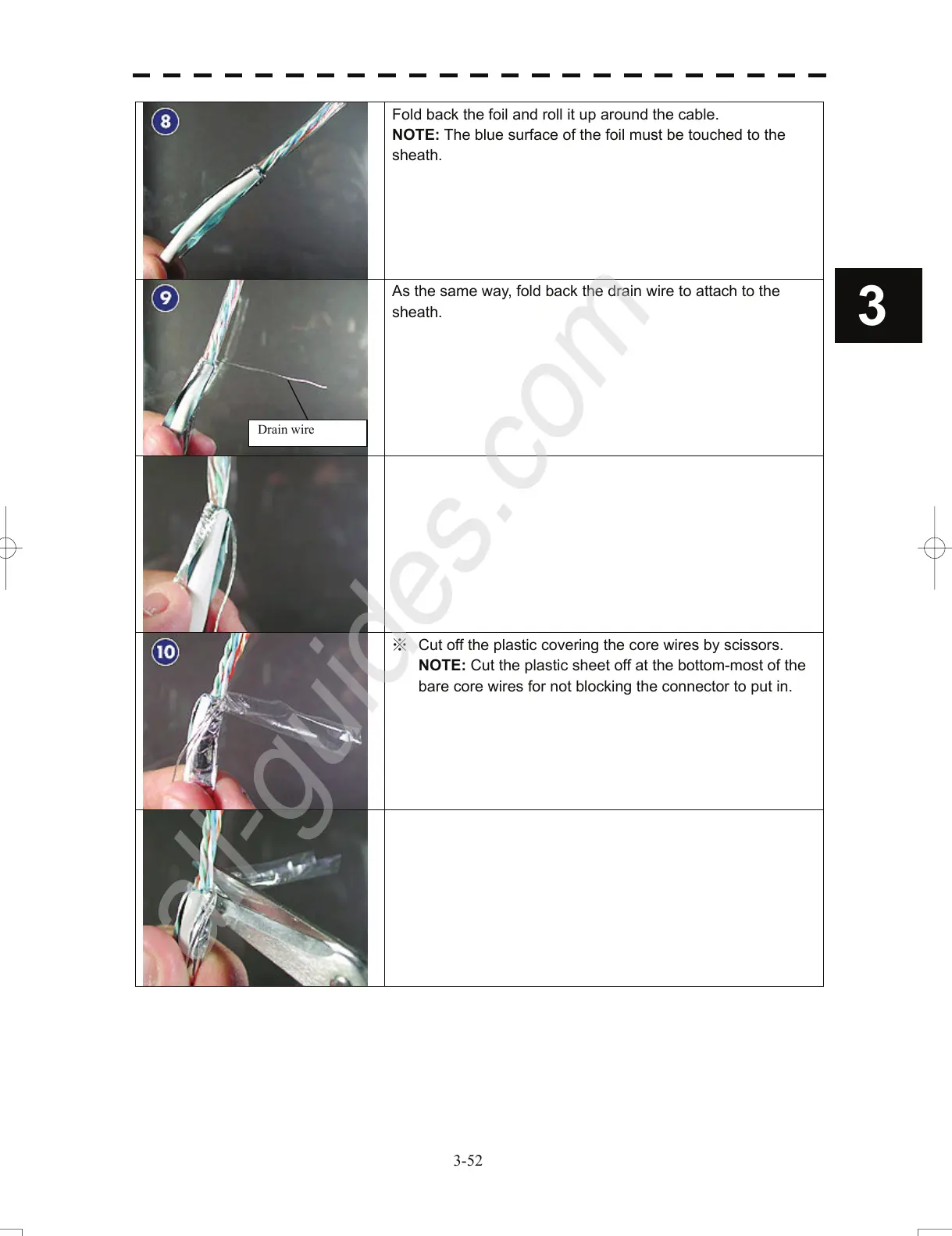

Fold back the foil and roll it up around the cable.
NOTE: The blue surface of the foil must be touched to the
sheath.
As the same way, fold back the drain wire to attach to the
sheath.
※ Cut off the plastic covering the core wires by scissors.
NOTE: Cut the plastic sheet off at the bottom-most of the
bare core wires for not blocking the connector to put in.
3
Drain wire
