– 19 –

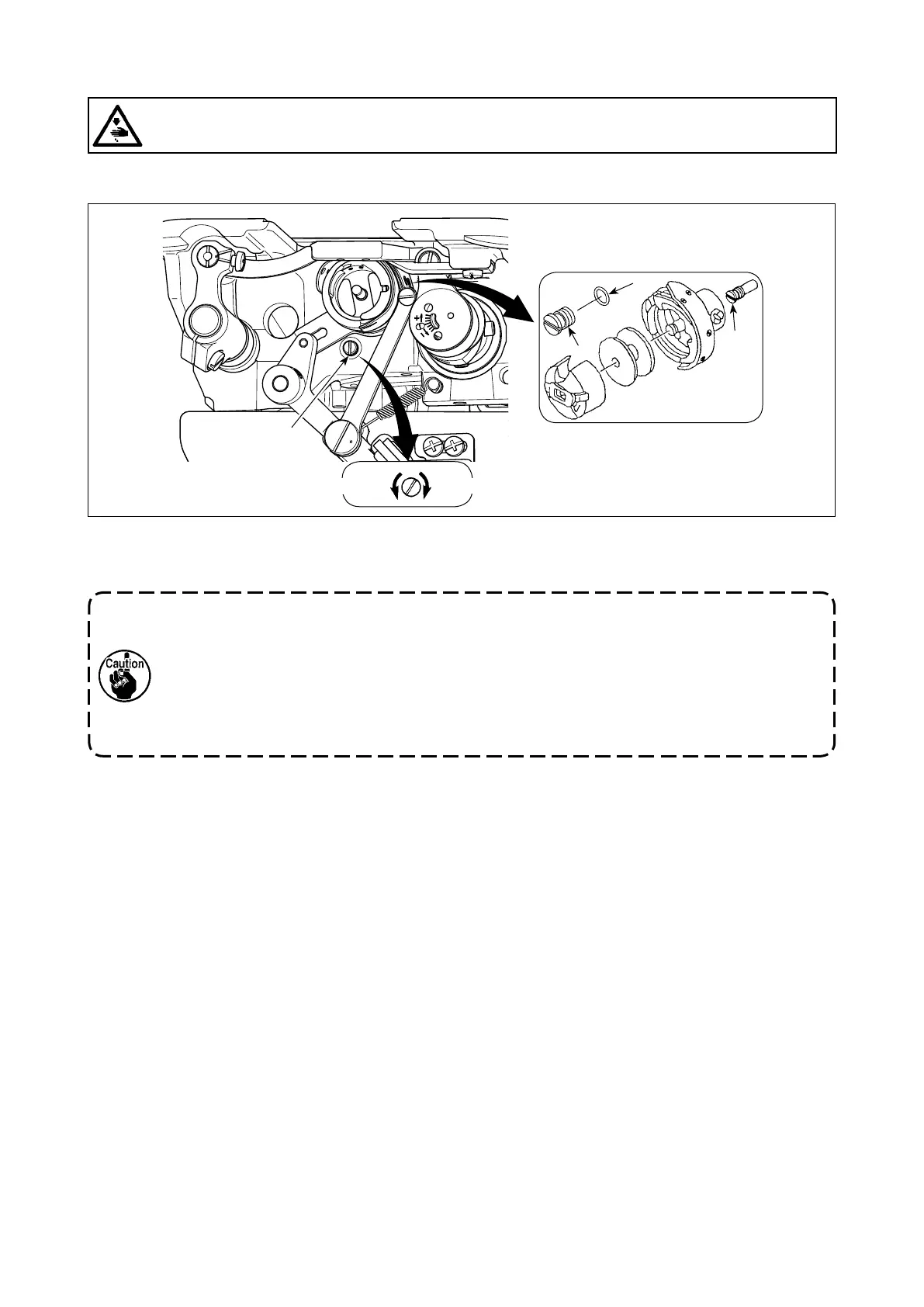

Tighten (turn clockwise) oil amount adjustment screw
to increase the amount of oil in the hook, or loosen
(turn counterclockwise) to decrease it.
[When using RP hook (hook for dry head) for DDL-8000A-PMS type]
1. Remove hook driving shaft oil wick setscrew
and attach hook driving shaft stopper screw
(part number : 11079506) and rubber ring
(part number : RO036080200).
2. Loosen oil amount adjustment screw
up to the minimum so as to reduce the oil amount in
the hook. However, do not completely stop the oil and be careful not to allow oil adjustment
screw
to come o󰀨.
3. Never drain the oil in the oil tank even when RP hook (hook for dry head) is used.
3-11-1. Adjusting the amount of oil in the hook
3-11. Adjusting the amount of oil (oil splashes) in the hook
WARNING :
Be extremely careful about the operation of the machine since the amount of oil has to be checked
by turning the hook at a high speed.
Decrease
Increase
