Be sure to mount the machine head sup-
port rod
❹
on the machine table so that
its height from the table surface becomes
56 to 60 mm.
4) Securely attach head support rod
❹
to the table
until it goes no further.

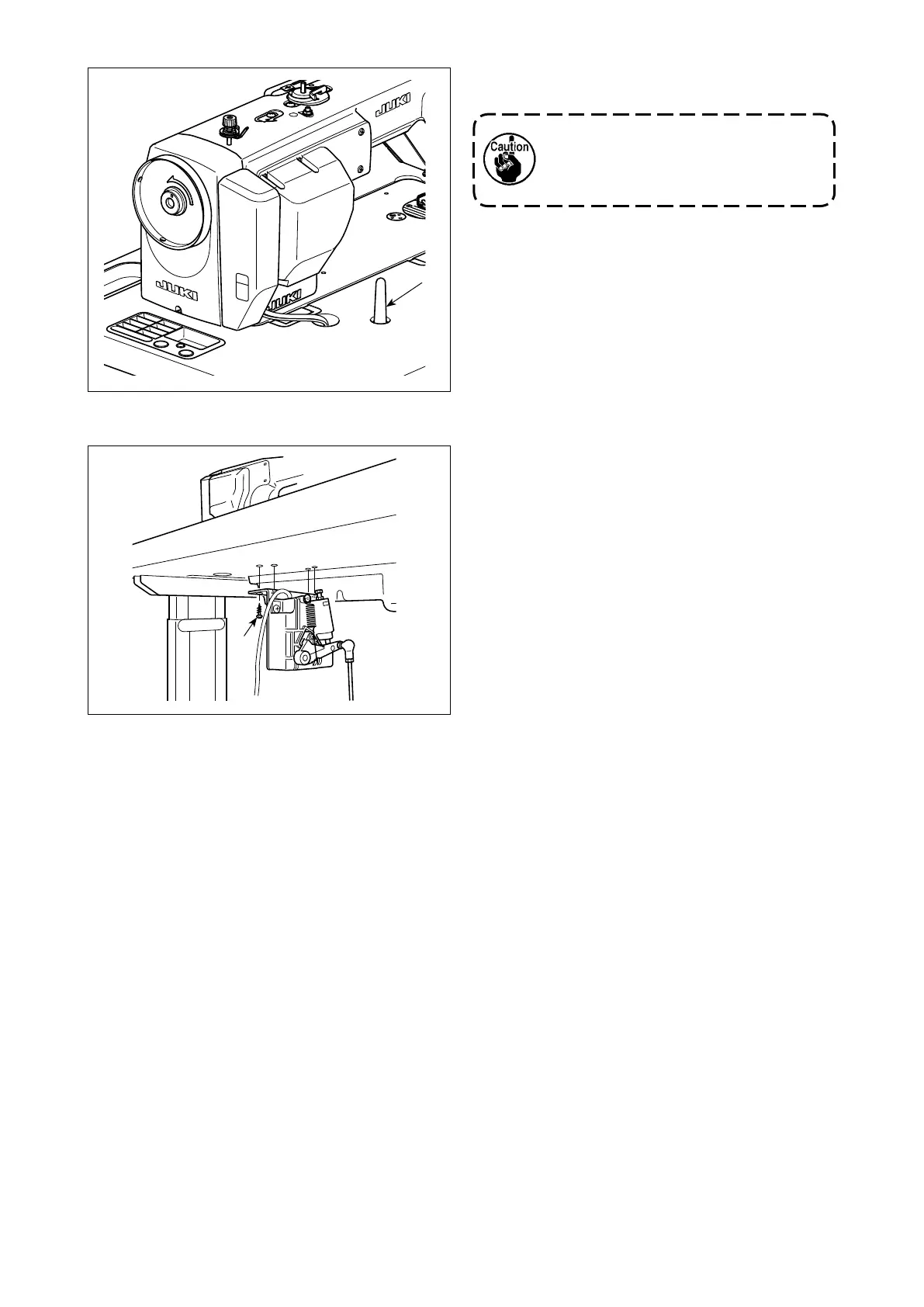

2-4. Installing the pedal sensor
1) Install the pedal sensor to the table with mounting
screws
❶
supplied with the unit.
It is necessary to install the pedal sensor at such
a position that the connecting rod is perpendicular
to the table.
2) After the completion of installation of the pedal
sensor on the table, place the sewing machine
head on the table.
