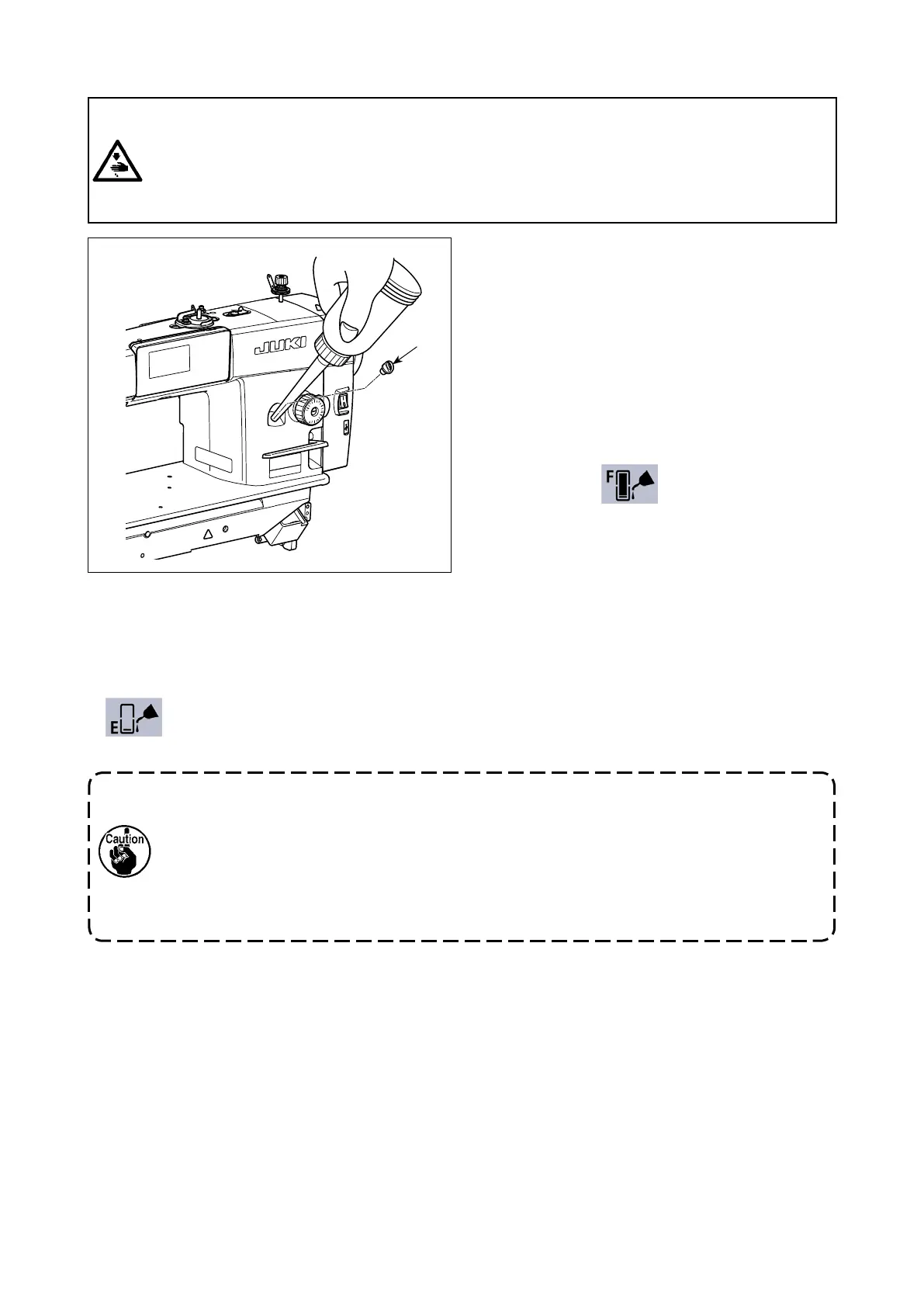

– 12 –
Fill the oil tank with oil for hook lubrication before
operating the sewing machine.
1) Turn ON the power switch. Remove oil hole cap
. Pour NEW Defrix Oil No. 1 (part number:
40214221 or MDFRX16000C0) supplied with the
unit or JUKI CORPORATION GENUINE OIL 7 (part
number: 40102087) into the oil tank through the
oil hole.
2) When the oil amount in the oil tank reaches the
maximum amount, ashes on and o󰀨 on the
operation panel and the voice warning is
given.
Stop oiling.
If the oil is lled excessively, it will leak from the
air vent hole in the oil tank or proper lubrication
will be not performed. In addition, when the oil is
vigorously lled, it may overow from the oil hole.
So, be careful.
2-14. Lubrication
WARNING :
1. Do not connect the power plug until the lubrication has been completed so as to prevent accidents
due to abrupt start of the sewing machine.
2. To prevent the occurrence of an inammation or rash, immediately wash the related portions if oil
adheres to your eyes or other parts of your body.
3. In the case of adding oil to the sewing machine while it is energized, do not place your hands into
the moving parts for the sake of safety.
1. When you use a new sewing machine or a sewing machine after an extended period of dis-
use, use the sewing machine after performing break-in at 2,000 sti/min or less.
2. For the oil for hook lubrication, purchase JUKI NEW DEFRIX OIL No. 1 (part number : MD-
FRX1600C0) or JUKI CORPORATION GENUINE OIL 7 (part number : 40102087).
3. Be sure to lubricate clean oil.
4. Do not operate the machine with the oil hole cap
removed. Never remove cap
from the
oil inlet in any case other than oiling. In addition, take care not to lose it.
3) When the remaining amount of oil in the oil tank has reduced, ashes on and o󰀨 on the operation panel
and the voice warning is given.
Rell the oil tank with oil.
