– 106 –
2) The top end plane of wiper
3
should be posi-
tioned to be almost parallel to the end plane of
clamp head
4
. Besides, set the clamp head so
that the upper side is the protruding section.
3) Adjust the maximum stroke of the wiper to the
position of 1 to 3 mm from the left end plane of
the presser of standard delivery.
™
Presser (asm.) of standard delivery
(Part No. 40003542)
™
Optional
Presser (asm.) for narrow width
(Part No. 40003549)
■
Position of the wiper
1) Adjust the white marker dot on the handwheel
1
to
the position where it is aligned with the marker dot
on the pulley cover
2
, quietly press wiper link A to
move wiper
3
. The wiper recedes by the ratchet
when going and the position where the wiper returns
to its home position is in the center of needle or the
position exceeding the center of needle.
Besides, adjust with wiper setscrew
5
so that when
wiper
3
comes to the position of the center of
needle when returning, the clearance between the
wiper and the needle tip should be approximately
2 mm and that between the wiper and the side of
needle should be approximately 1 mm.
2 mm
0.5 to 1
mm
Needle
(8 mm zigzag
extreme left)
Needle
(8 mm zigzag
extreme left)
WArNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
To be convex by 1 to 3 mm
To be almost
parallel

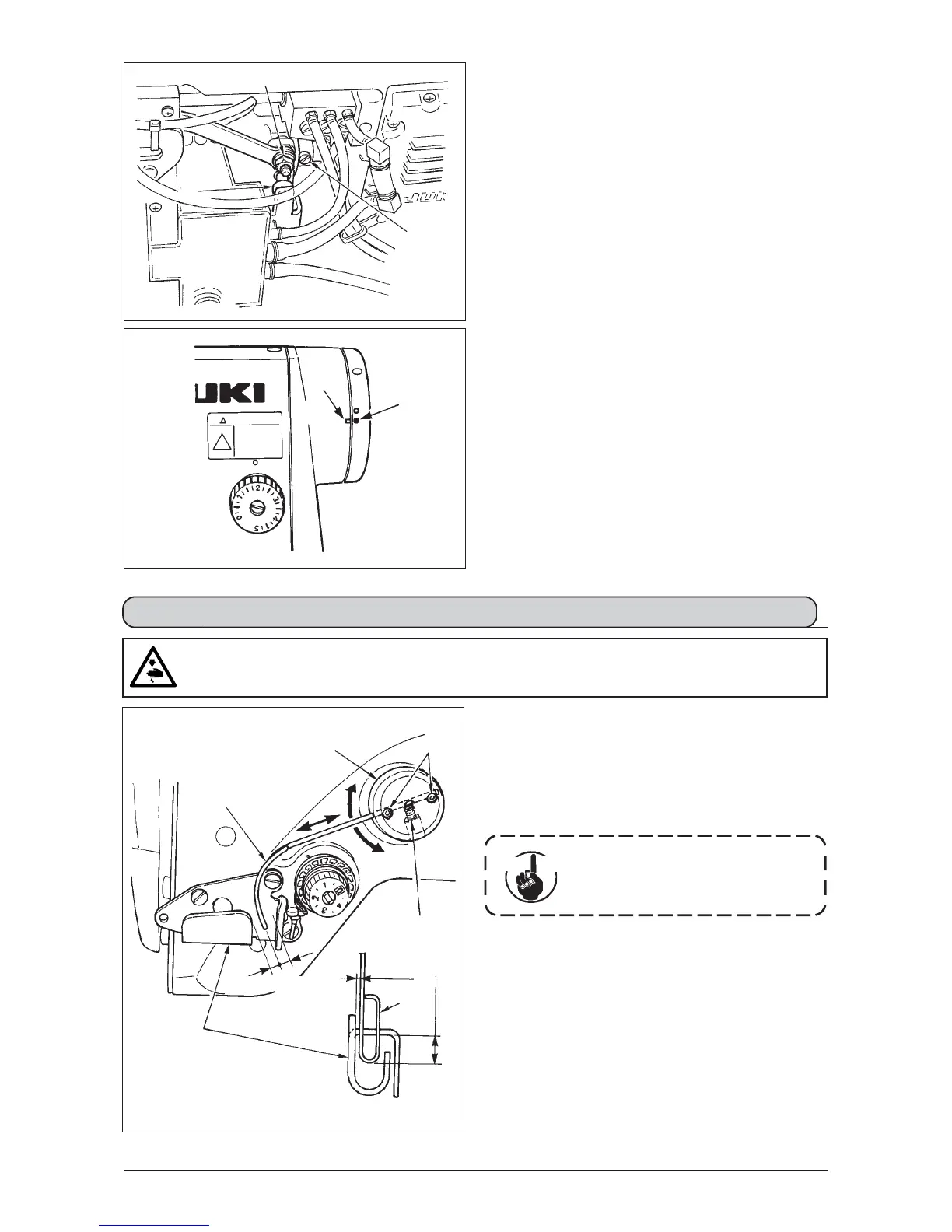

8-13. Adjusting the bird's nest prevention (CB) type wiper
3
2
1
4
3
4
3
5
