JUKI IT-100D - Lubrication (LZ-2290 A-SS • A-SU (-7) )

– 13 –
9) Connect the air pipe
!2
and set the air pressure
to 0.6 MPa.
Fill the oil tank with oil for hook lubrication before
operating the sewing machine.
1) Remove oil hole cap
1
and ll the oil tank with
JUKI New Defrix Oil No. 1 using the oiler supplied
with the machine.
2) Fill the oil tank with oil up to the place where the
top of oil amount indicating rod
3
aligns with
the upper engraved line of oil amount indicating
window
2
. If the oil is lled excessively, it will
leak from the air vent hole in the oil tank or proper
lubrication will be not performed. So, be careful.
3) When you operate the sewing machine, rell oil if
the top end of oil amount indicating rod
3
comes
down to the lower engraved marker line of oil
amount indicating window
2
.

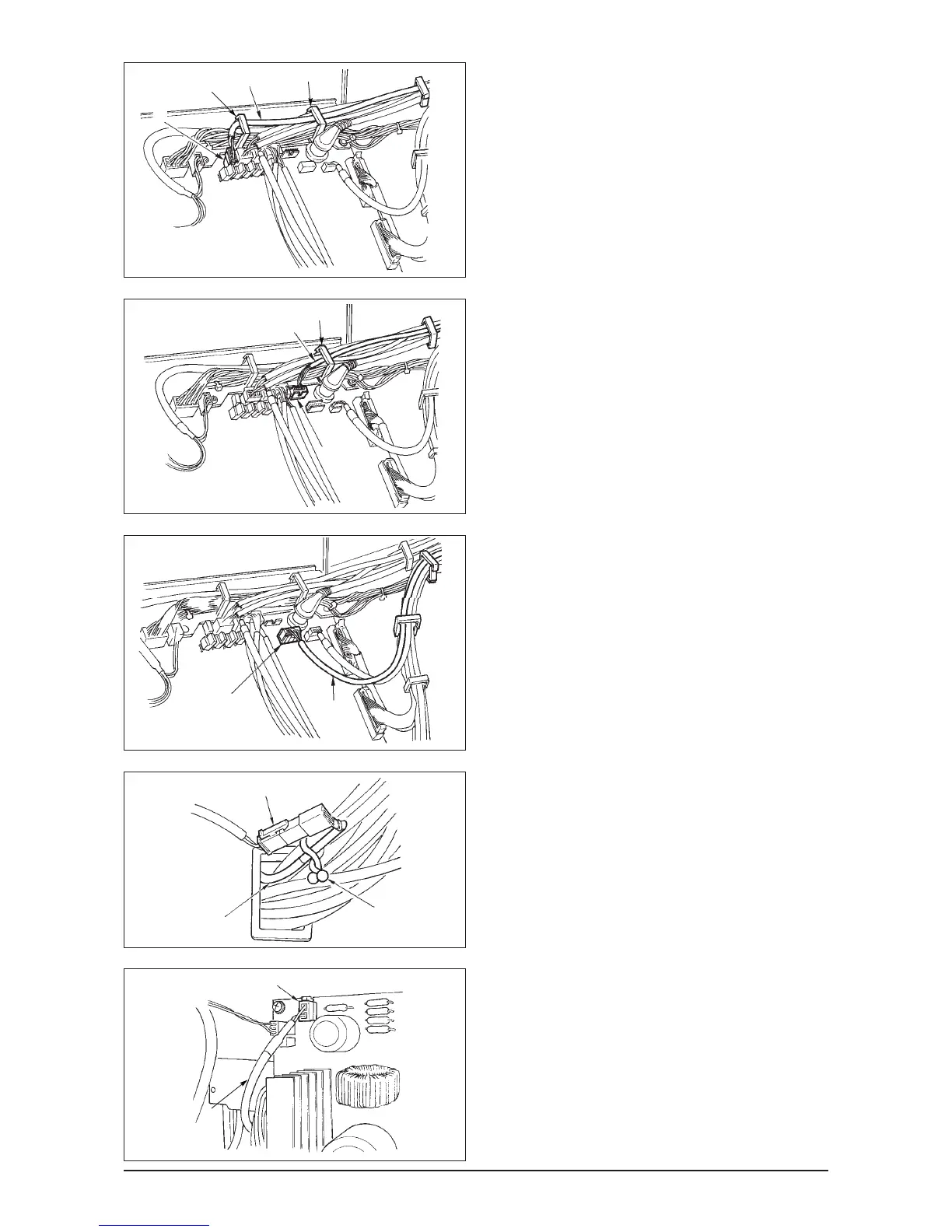

6) Adjust solenoid valve cord (asm.)
7
to the so-
lenoid valve and the hot marker of the cord, and
connect it.
Connect 6P connector
!0!1
to CM52 connector
inside the electrical box.(Refer to “When the bird’
s nest prevention device is used, p. 10".)
7) Connect air hose ø4 coming from the machine
head to the solenoid valve section and air hose
ø8 to the dust bag suction port respectively.
8) Fix the solenoid valve and the air hose on the
table with staple
8
supplied as accessories.
3
2
2
1
Upper engraved
marker line
4-13. Lubrication (LZ-2290A-SS • A-SU (-7) )
WArNING :
1. Do not connect the power plug until the lubrication has been completed so as to prevent ac-
cidents due to abrupt start of the sewing machine,
2. To prevent the occurrence of an inammation or rash, immediately wash the related portions if
oil adheres to your eyes or other parts of your body.
3. If oil is mistakenly swallowed, diarrhea or vomitting may occur. Put oil in a place where children
cannot reach.
1. Fix the staple to such an extent that
the air hose is not crushed.
2. Determine the position of the staple
so that the cord and the air hose do
not hang from the table.
• When you use a new sewing ma
-
chine or a sewing machine after an
extended period of disuse, run your
machine at 3,000 to 3,500 sti/min for
the purpose of break-in.
• For the oil for hook lubrication, pur
-
chase JUKI New Defrix Oil No. 1 (Part
No. : MDFRX1600C0).
Lower engraved
marker line
7
!1
ø 8
ø 4
!0
!1
!0
8
!2
