– 14 –

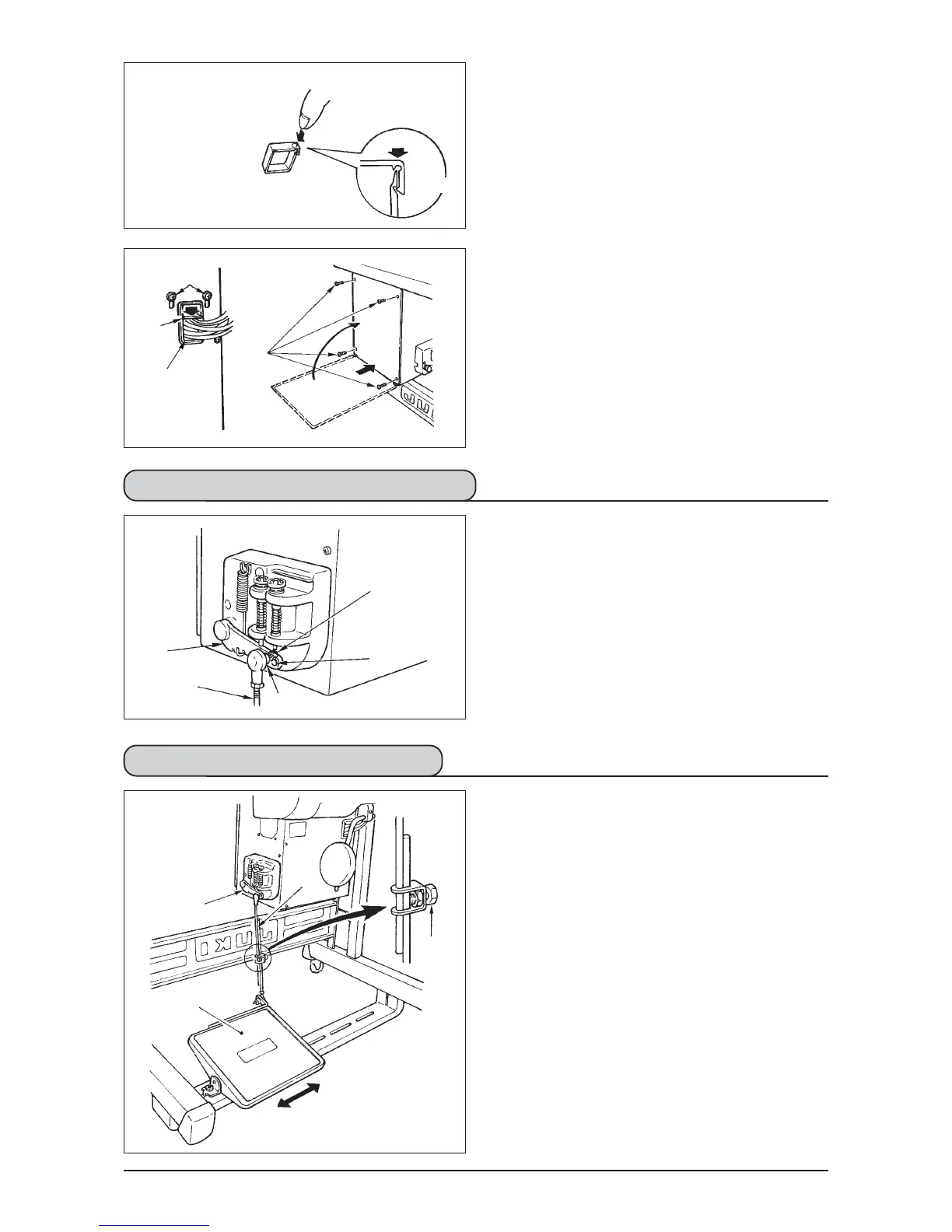

(2) How to operate the pedal
The pedal is operated in four stages.
1) Lightly depress the front part of the pedal for low-
speed operation
B
.
2) Further depress the front part of the pedal for
high-speed operation
A
. (Note that the sew-
ing machine will enter the high-speed operation
mode after the completion of reverse feed stitch-
ing if the automatic reverse feed stitching function
is specied with the corresponding switch.)
3) Bring the pedal back to its neutral position, and
the sewing machine will stop running
C
.
(The needle stops in the highest / lowest posi-
tion.)
4) Strongly depress the back part of the pedal, and
the thread trimmer will be actuated
E
.
Lightly depress the back part of the pedal, and
the presser foot will go up
D
. Further depress the
back part of the pedal, and the thread trimmer will
be actuated.
A
B
D
E
C
4-14. Test run
(1) Turn ON the power
1) When the needle bar is in its UP position, zigzag origin detection is performed.
2) When the needle bar is in the position other than UP position :
Display as shown in the gure below appears. Turn the handwheel to bring the needle bar to needle UP
position and the display changes to the next screen. Then the needle moves left and right, and zigzag
origin detection is performed.
WArNING :
• Check again the power voltage before connecting the power cord.
• Check that the power switch is turned OFF and connect the power cord to the power receptacle.
• Be sure to connect the earth wire.
• In case where the buzzer keeps beeping immediately after turning ON the power, there is a possi
-
bility of the wrong connection of cord or wrong power voltage. Turn OFF the power.
