76
Example of upload
6
6) Start of download
When all setting procedures have been completed, press 6 in the communication setting screen to start
downloading.
■During communication screen
When the screen returns to the communication setting screen after display of the during communication
screen, communication is completed.
2
4

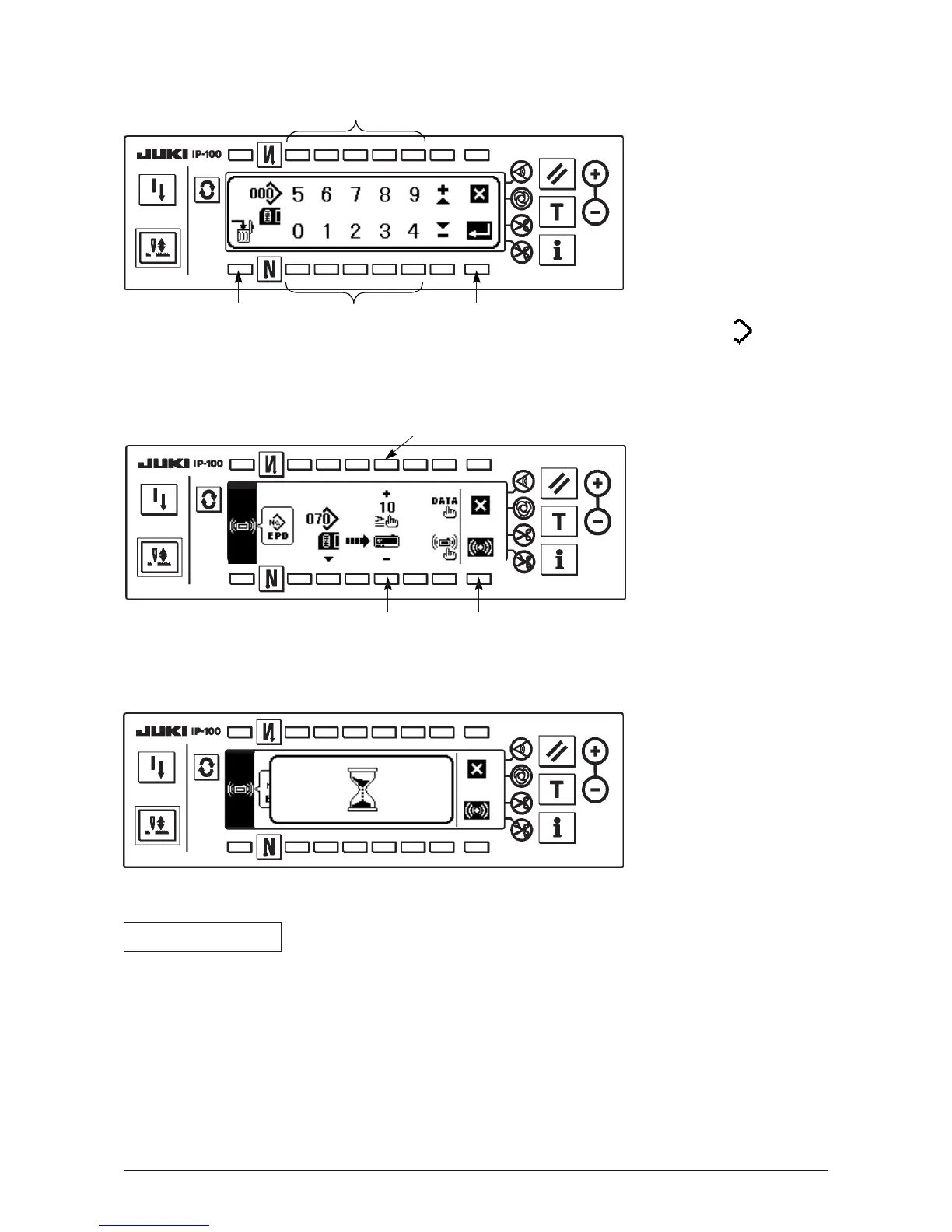

Input the file No. of smart media with 2. The file No. which has been inputted is displayed in . The No. is
determined with 1 after inputting the file No.
5) Custom pattern No. setting
Press 4 and 5 in the communication setting screen to set the custom pattern No.
■Communicationsettingscreen
2
13
4) Selection of file No. of the smart media
Press 3 in the communication setting screen to display the file No. of smart media input screen.
■File No. input screen
5
Example) Custom pattern No. 8 is uploaded as the vector form file No. 15 of the smart media.
1) Open the smart media cover and insert the smart media (Optional Part No. : HX005750000) from the
insertion opening.
* Panel function does not work with the cover opened.
2) Selection of data
Press 1 in the communication setting screen to display the data selection screen.
[Explanation of the pictograph]
EPD : Parameter data
VDT : Vector form data
Press 2 and determine with 3 after selecting the vector form data.
To Next Page
