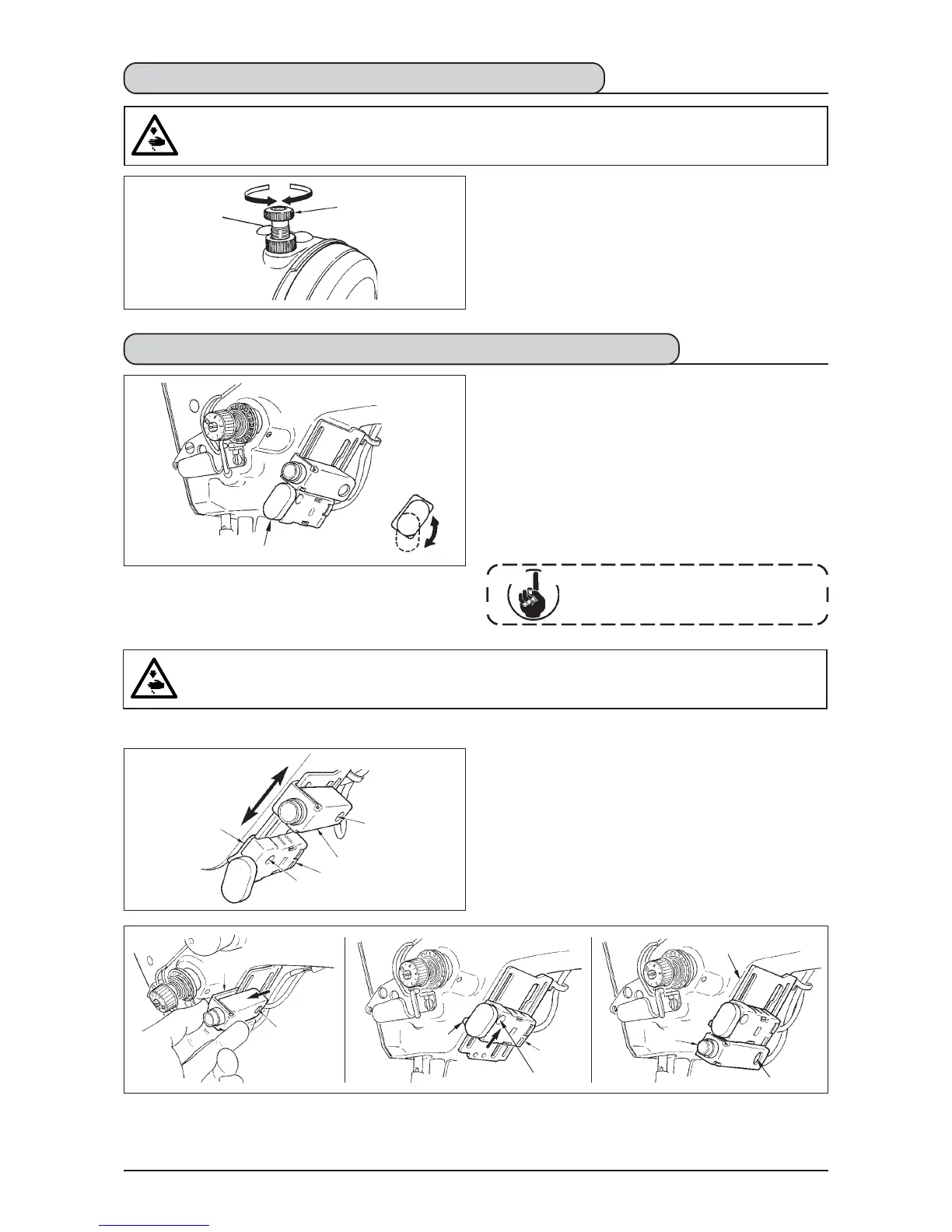

5) Put mirror SW
2
in installing base
6
and x it with setscrew
1
.
(Put mirror SW
2
in installing base
6
so that the installing base
6
is inserted in the mirror SW
2
.)
(Note) Freely adjust the height of the respective switches.
1) Loosen two setscrews
7
and remove reverse feed switch
4
.
2) Loosen setscrew
3
and remove reverse feed switch
4
from installing base
8
.
3) Slide reverse feed switch
4
from installing base
8
to remove it.
(Move the click of the reverse feed switch from the groove of the installing base. Guide
5
is used
when installing the switch.)
B. In case of the machine without the auxiliary thread take-up lever
When reverse feed switch
4
is low according to the process, adjust the height.
4) Loosen setscrew
1
to remove mirror SW
2
.
5) Put the click of reverse feed switch
4
in the groove of installing base
6
.
6) Fix reverse feed switch
4
with guide
5
and setscrew
3
.
7) Put mirror SW
2
in installing base
6
and x it with setscrew
1
.
(Put mirror SW
2
in installing base
6
so that the installing base
8
is inserted in the mirror SW
2
.)
* The position of reverse feed switch
4
and mirror
switch
2
can be reversed.
When changing the position of the switch in case
of “A. In case of the machine with the auxiliary
thread take-up lever”, refer to the items 3) through
5).
(Note) Freely adjust the height of the respective
switches.
1)
2) 3)
4) 5 , 6)
7)
