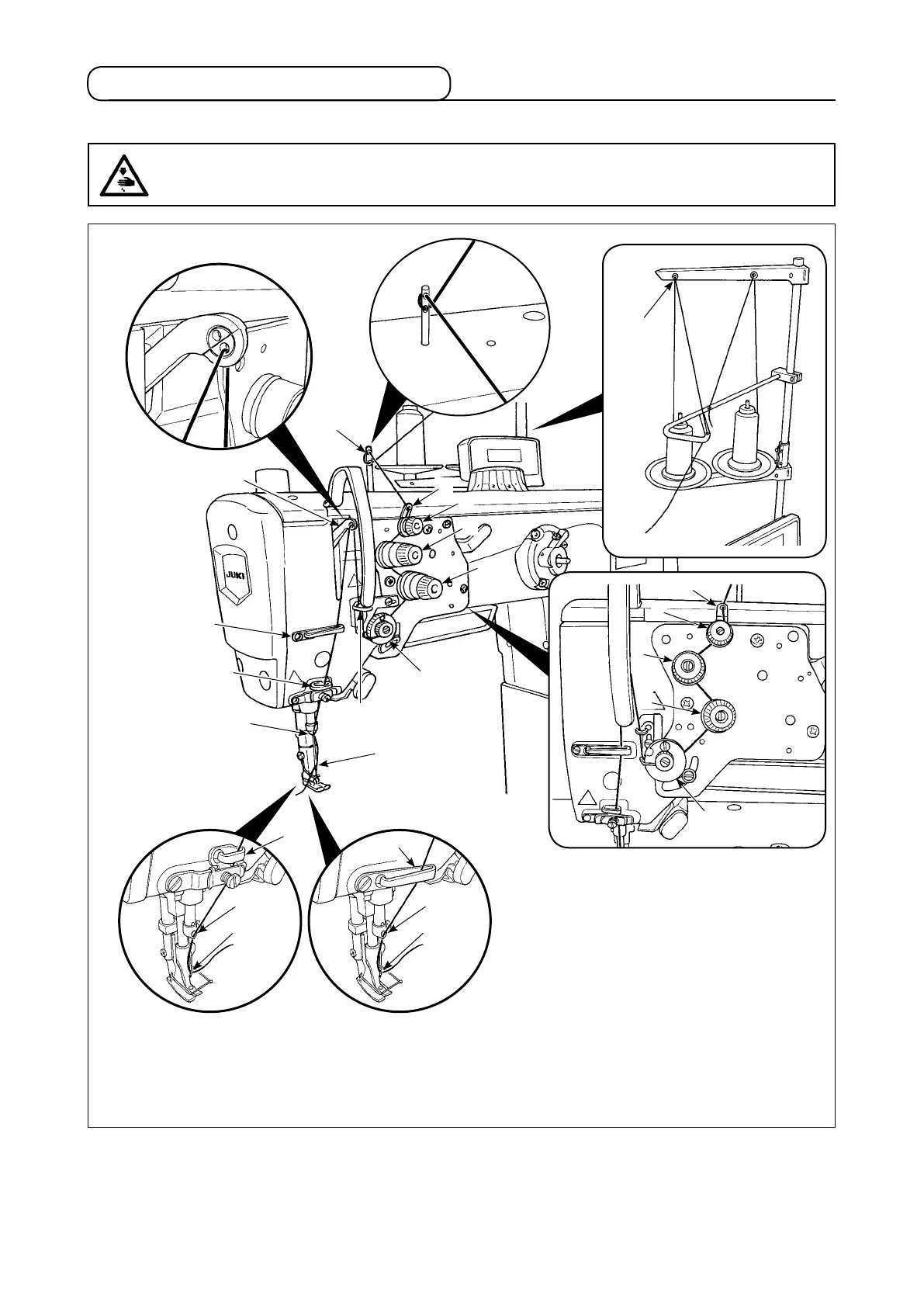

Thread the machine head following the

order as illustrated in the gure.

WARNING :

To protect against possible personal injury due to abrupt start of the machine, be sure to start the

following work after turning the power off and ascertaining that the motor is at rest.

󱀀

󱢶

󱢵

󱢶

󱀇

󱀆

󱢳

󱢴

󱢵

󱢴

󱢵

󱢶

PLC-2710-7

PLC-2710

󰿿

󱀃

󱀄

󱀁

󱀂

󱀅

󱀂

󱀁

󱀃

󱀄

󱢴

* Pass thread through

the right side of thread

guide 󱢴.

3-10. Threading the machine head
