– 6 –
Adjust the belt tension with the height of the motor so
that the belt sags 15 mm when the center of V belt is
applied with a 9.8 N load.
15mm
Motor pulley
Handwheel
9.8N
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
Do not use the screws supplied the panel
instead of screws supplied with the
machine head.

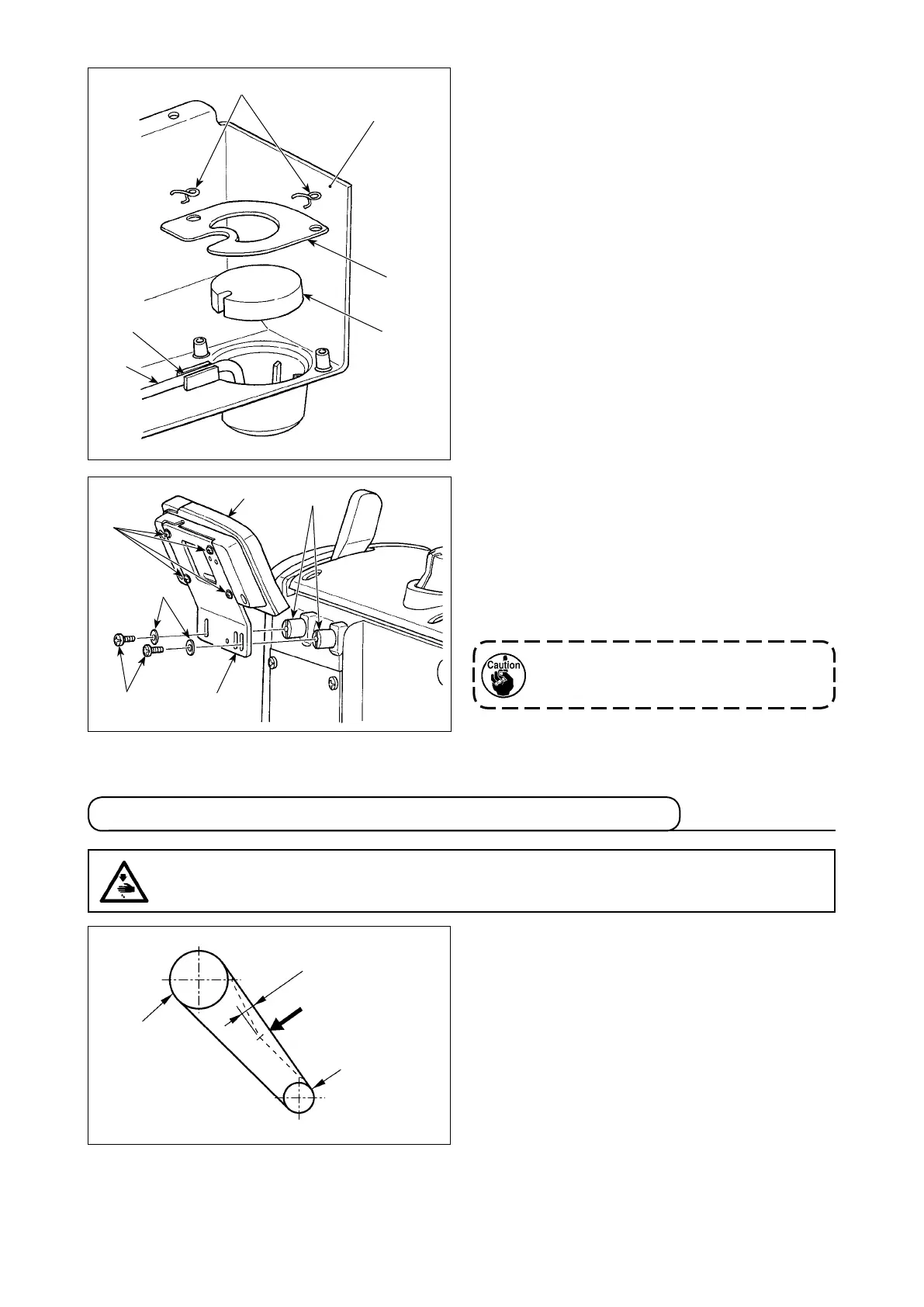

9) Put reux pipe in the oil reservoir of oil pan .
Secure the pipe in groove .
10) Fix lter and lter clamp with tting .
11) Mount spacers supplied with the machine head
on the frame.
12) Install bracket on CP panel with screws
supplied with the panel.
13) Install bracket on spacer with screws
supplied with the machine head and washers
supplied with the panel.
2-2. Adjusting the belt tension (PLC-2710, 2760, 2760L, 2765)
