JUKI RS-1 - Replacing the Bank Connector B

Maintenance Guide
8-11
8-2-4 Replacing the Bank Connector B
1) Remove the cover for the connector B.
2) Remove the cable fixing until the relay connector, and then replace the bank connector B.
3) Reassemble the components in the reverse order of disassembly.

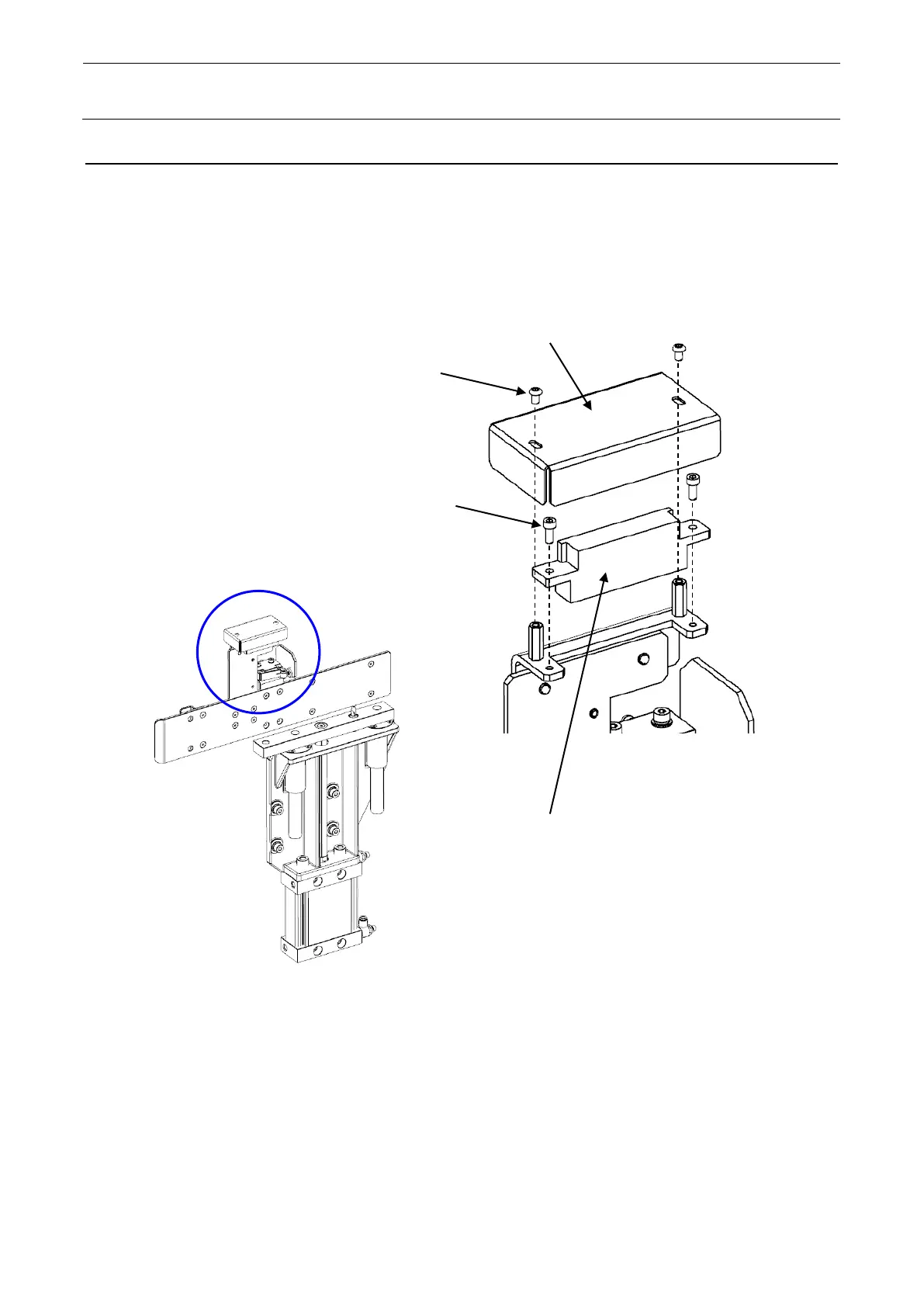

Bank connector B
Connector cover
Round screw M3 L=5
Hexagon socket head cap
bolt M3 L=8
