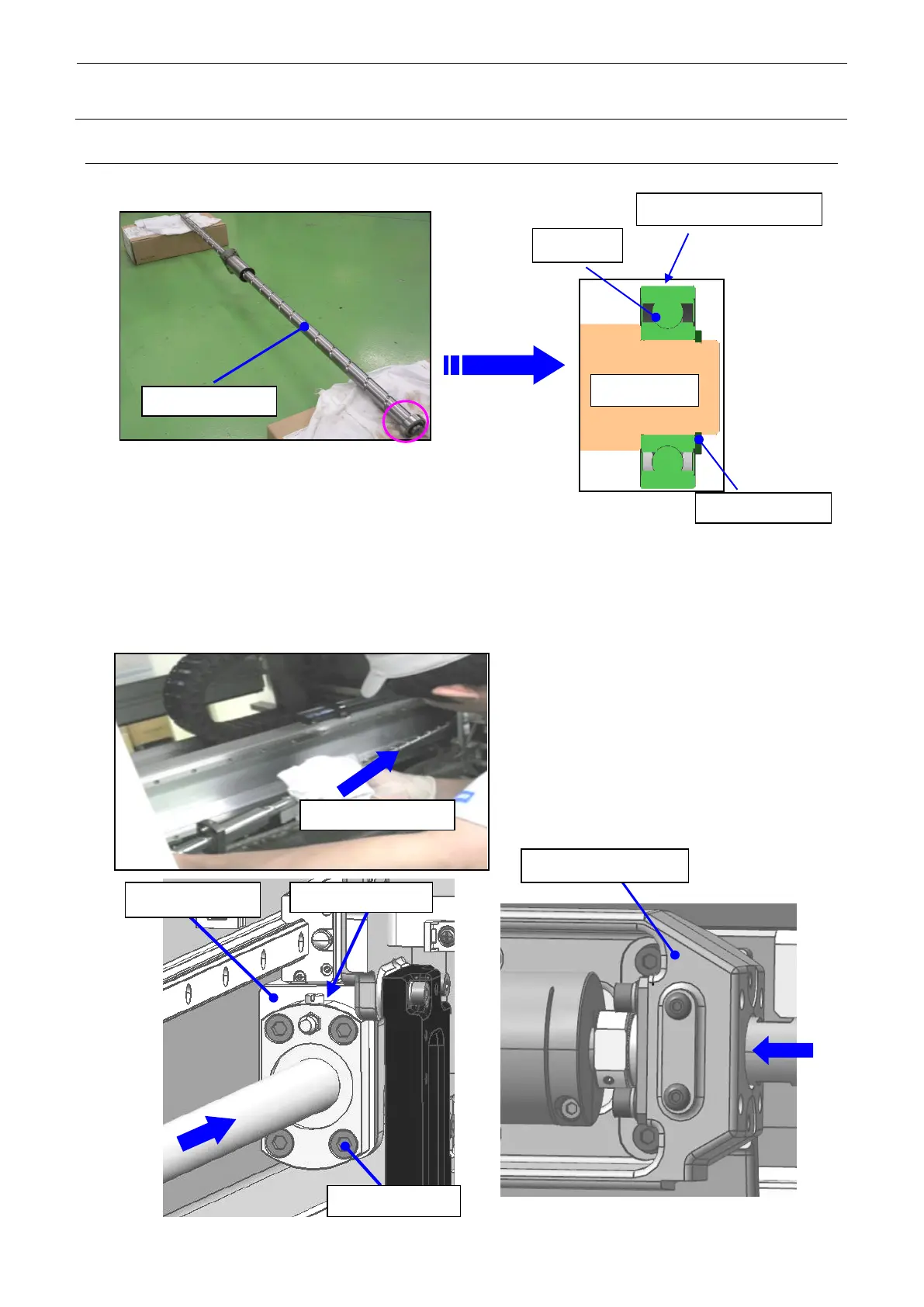

1-6-3. Mounting the X Ball Screw
(1) Mount the C-retaining ring and bearing that have been removed in step 1-6-2 (10) on a new
X ball screw (part No.: 40098047).
(2) Mount the X ball screw that has been assembled in step 1-6-3 (1).
Move the HEAD_UNIT to the right and insert the X ball screw_nut into the HEAD_PLATE.
After that, secure it temporarily with SM6061602TN (4 pcs.).
After secured temporarily, insert the X ball screw into the X_MOTOR_FRAME_2 while
moving the HEAD_UNIT leftward.
