JUKI RS-1 - Assembling the Cable

Maintenance Guide
1-24

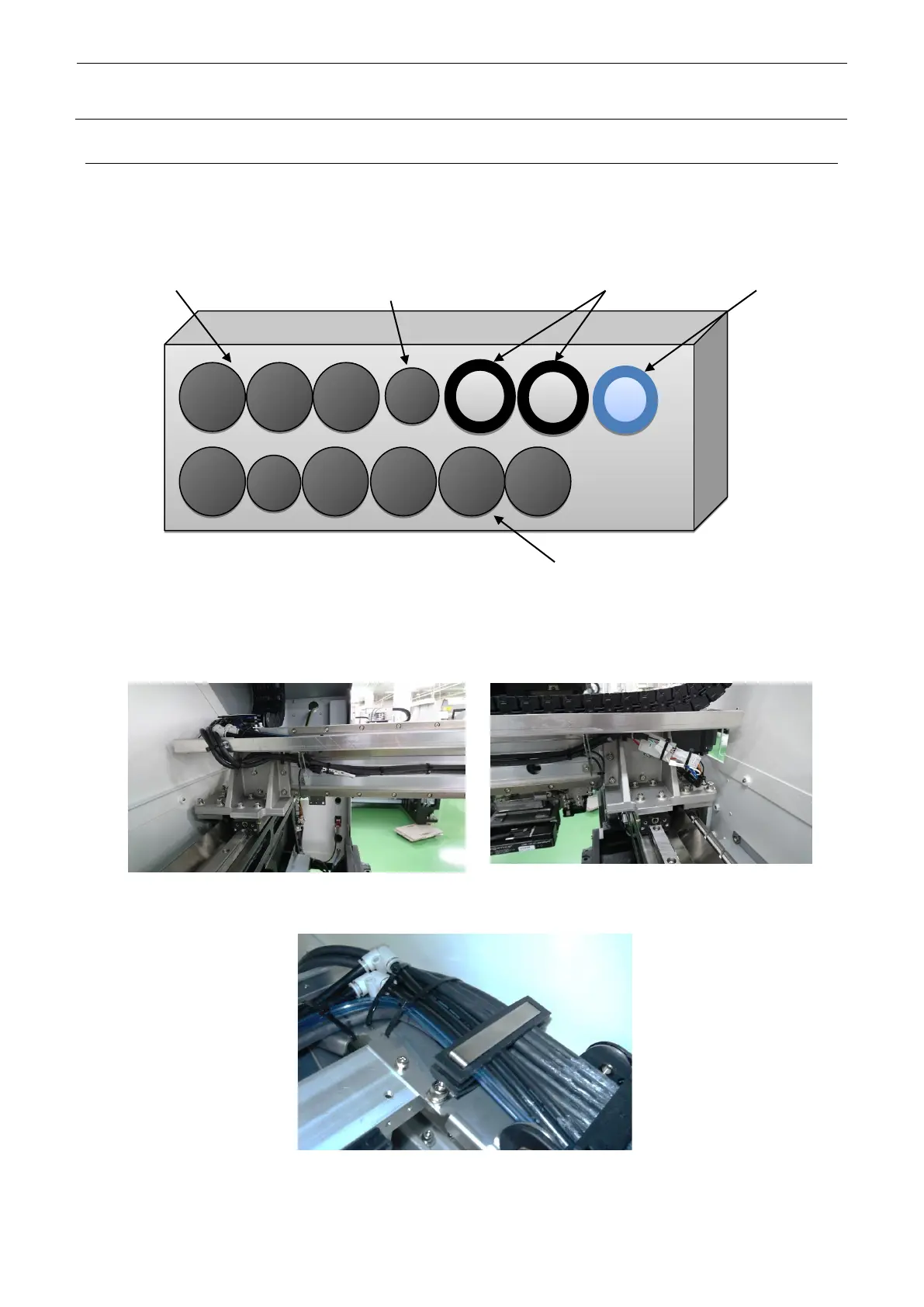

1-4-5. Assembling the Cable
1) Apply the grease to portions where the cables (Y veyor-cable, XY veyor-cable, and the
optical fiber cable 7M) are put in the cableveyor.
2) Arrange the cables as shown in Figure 1-4-5-1 and adjust their lengths.
Figure 1-4-5-1
3) Connect Y veyor-cable to motor and sensor. Fix the cable in a tensioned state so that no
tension is applied to the cable.
Figure 1-4-5-2 Figure 1-4-5-3
Figure 1-4-5-4
Air tube (blue)
Air tube (black)
OPTICAL FIBER CABLE 7m
(40048070)
XY VEYOR-CABLE ASM
Y VEYOR-CABLE ASM
