Maintenance Guide
9-2

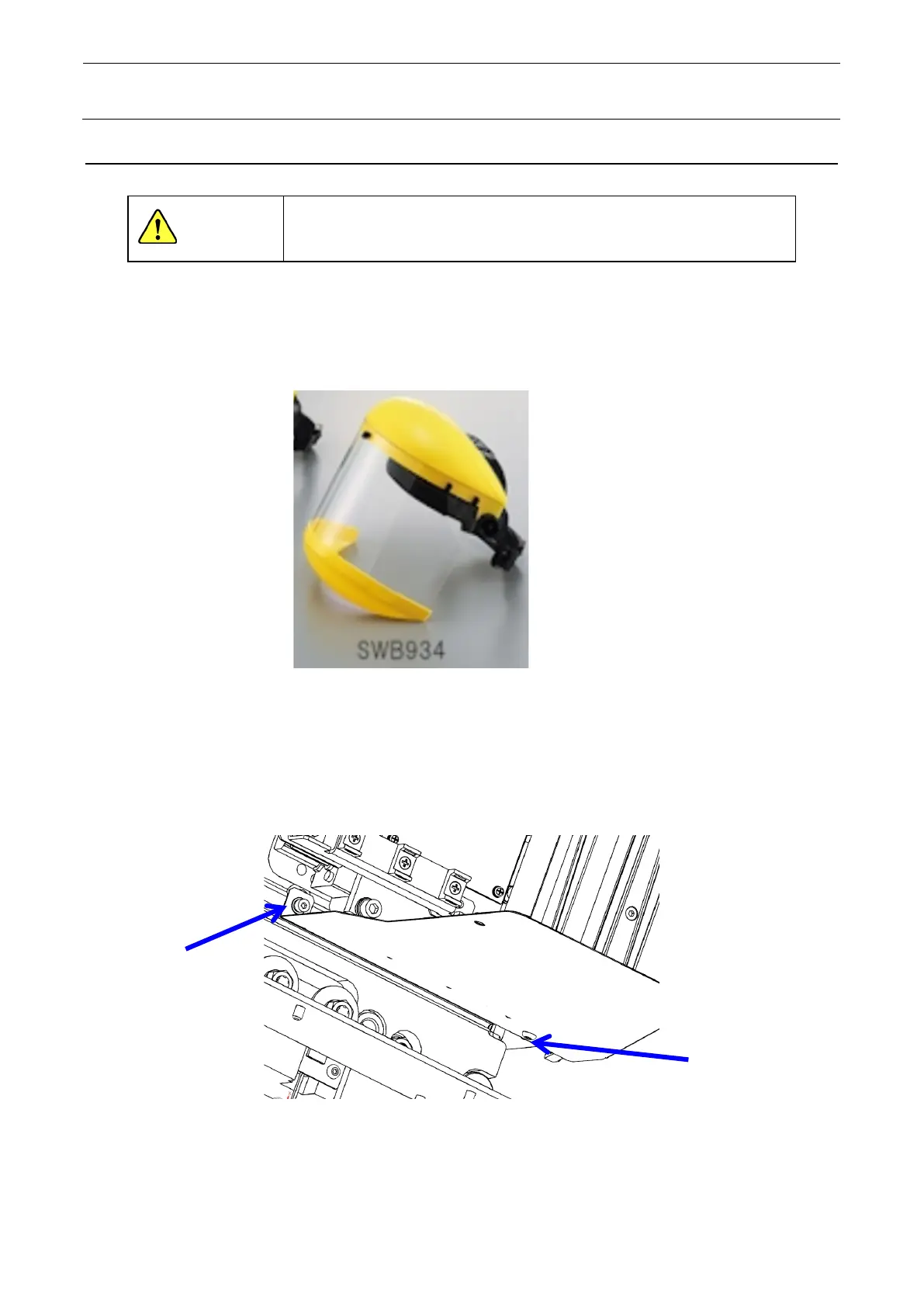

9-2 Replacing the Tape Cutter Blade
DANGER
Handle the cutter blade with great care.
Please work with two or more people.
∗ Replace the cutter blade without lowering the cutter unit from the machine.
Please prepare for falling of the blade using the following protective equipment.
Reference protective equipment Face shield (with chin guard) (SWB 934 made by AS ONE)
1) Shut down the main air of the main unit.
2) Remove the PCB cover. (See Figure 8-1-1 [Replacing the Bank PCB])
3) Remove the fixing bolts (hexagon socket head cap bolt with washer M4 L=8 and round
screws M4 L=6) to detach the cutter cover.
The fixing bolts are also located on the opposite side of the figure below. (4 points in total)
To Next Page
