JUKI RS-1 - Replacing the X Ball Screw

Maintenance Guide
1-31
1-6. Replacing the X Ball Screw
1-6-1. Preparations for X Ball Screw Replacement

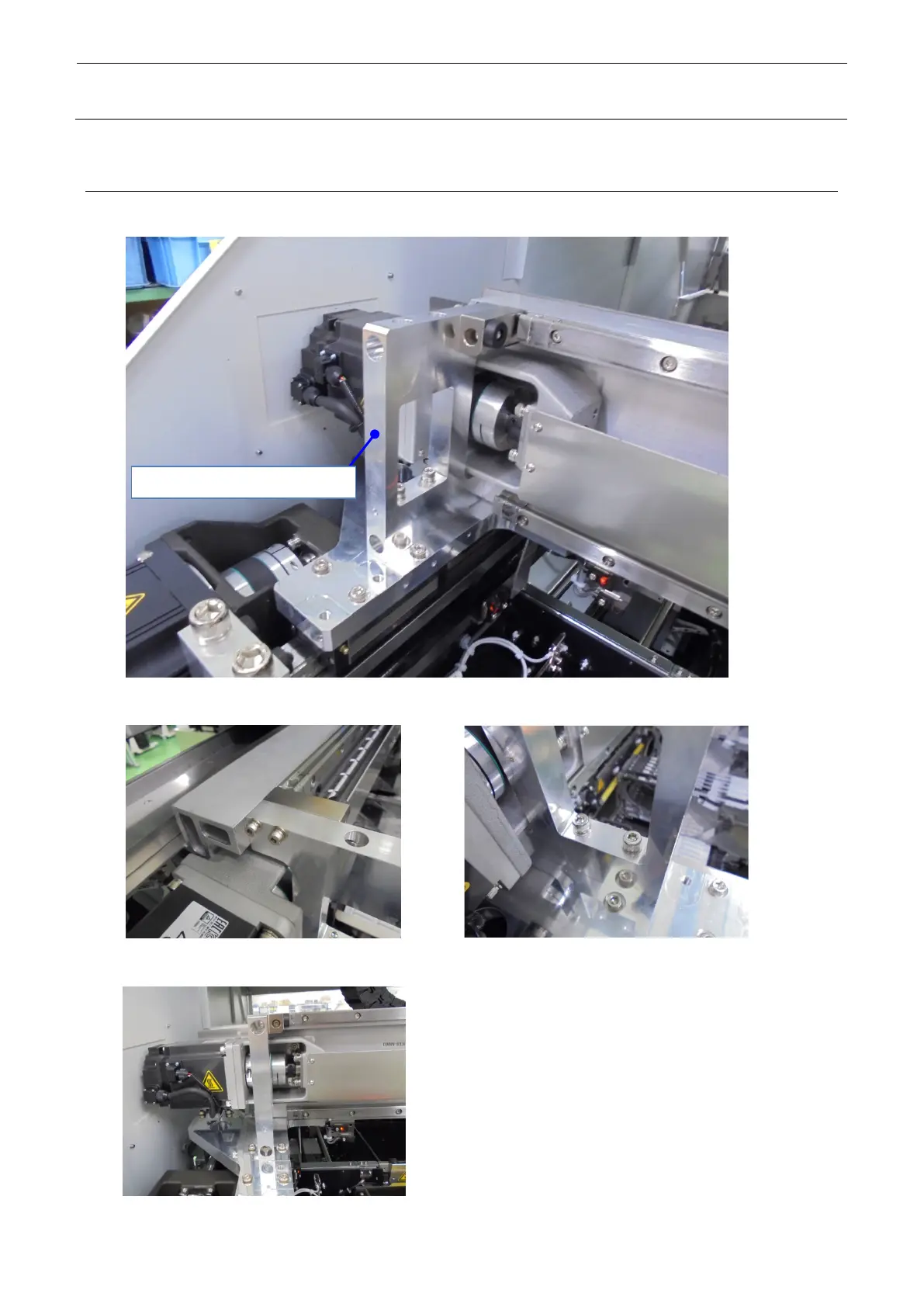

(1) Detach the X_FRAME_END_SUPPORT_F on the left side. [To be conducted in the RS-1R
only.]
X_FRAME_END_SUPPORT_F
①
Remove SL6042592TN (2 pcs.).
②
Remove SL6054592TN (2 pcs.).
③
Remove SL6053592TN (2 pcs.).
