JUKI RS-1 - Removing the y Veyor-Cable

Maintenance Guide
1-23
1-4-4. Removing the Y Veyor-Cable
1) Disconnect the binding of the connector bracket at the entrance of the Y-axis cableveyor
and the relay connector.

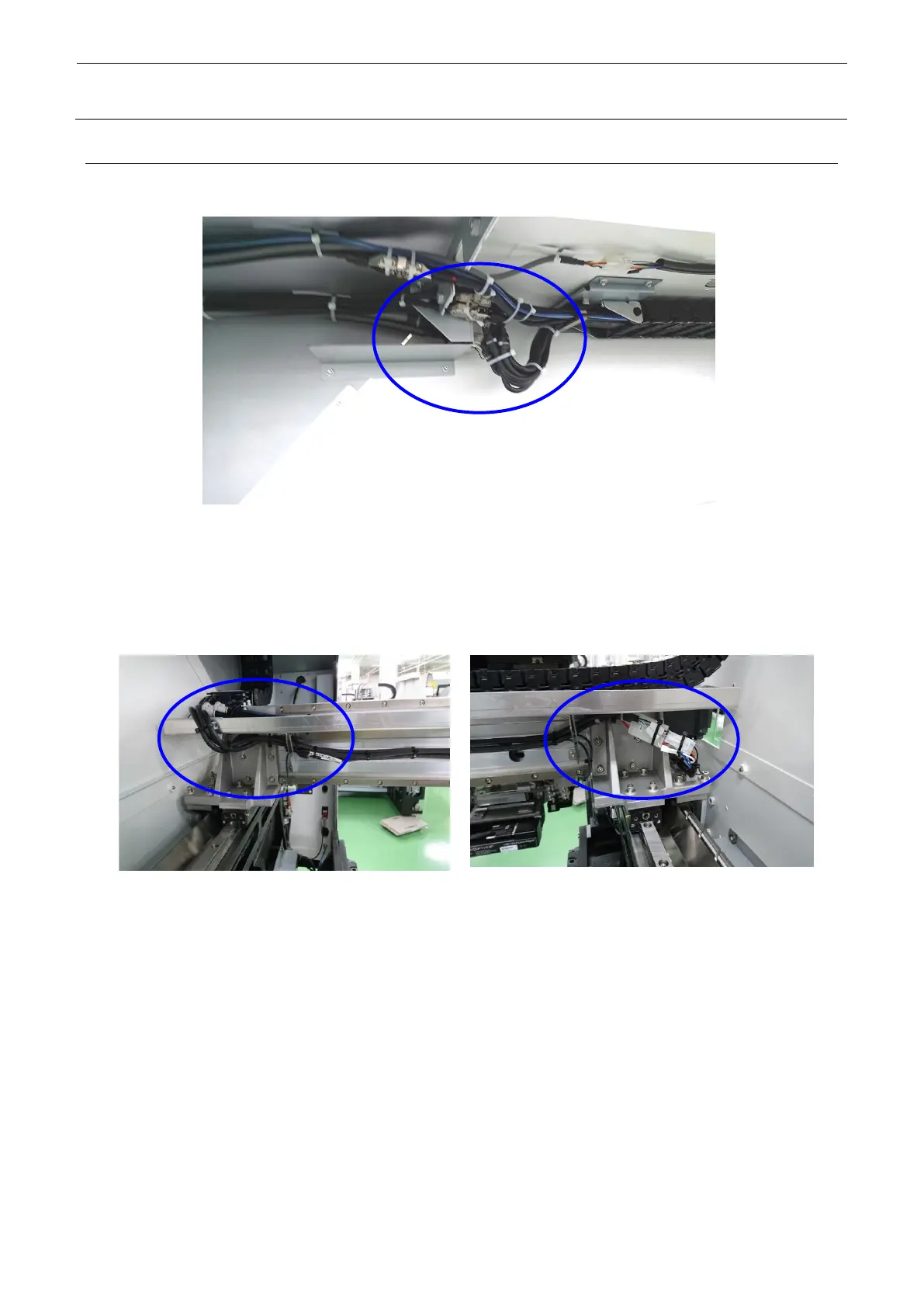

Figure 1-4-4-1
2) Disconnect the binding of the connector bracket at the Exit of the Y-axis cableveyor and the
relay connector.
Figure 1-4-4-2 Figure 1-4-4-3
3) Detach the cover of the Y cableveyor and remove the cable to be replaced.
