JUKI RS-1 - RS-1 Appendix: Jig Lists

Maintenance Guide
A-1

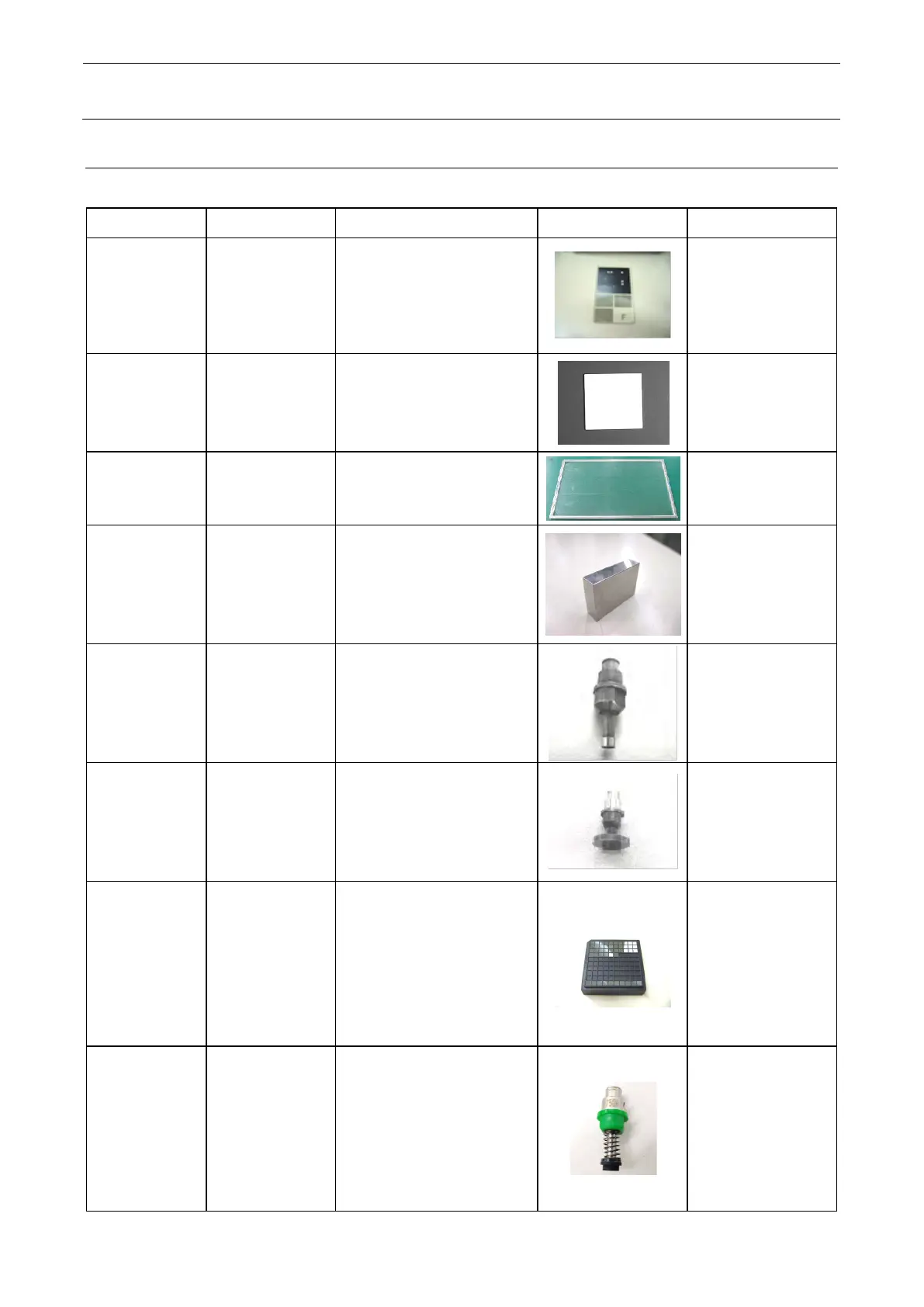

RS-1 Appendix Jig Lists
Part No. Part name Purpose Figure Remarks
40128108
Camera
adjustment jig
board
Adjustment of OCC focus
OCC camera offset
VCS camera focus offset
Common for
RX-6/RX-6B/RX-6R
E2107998000 Ceramic board
(2 inch)
Adjustment of OCC
camera illumination
Common for
KE-3020V
40092139
40092140
Glass plate 2XL
Glass plate
frame 2XL
Square adjustment
Common for
JX-350
40186735
Gauge block
25mm
ZA-axis height offset
Dedicated to RS-1
40185343
Jig nozzle RS1 Laser offset
Load cell offset
Coplanarity offset
Dedicated to RS-1
40185344
Jig nozzle LNC Laser offset
Dedicated to RS-1
40035043
3.7 dummy
wafer
Head offset
VCS offset
VCS Multi-recognition
offset
Bare station offset
Measurement of
component speed
Common for CX-1,
RX-6 / RX-6B /
RX-6R
40183426
Nozzle
assembly 7506
Head offset
VCS offset
VCS Multi-recognition
offset
Extension T axes offset
Measurement of
component speed
Dedicated to RS-1
