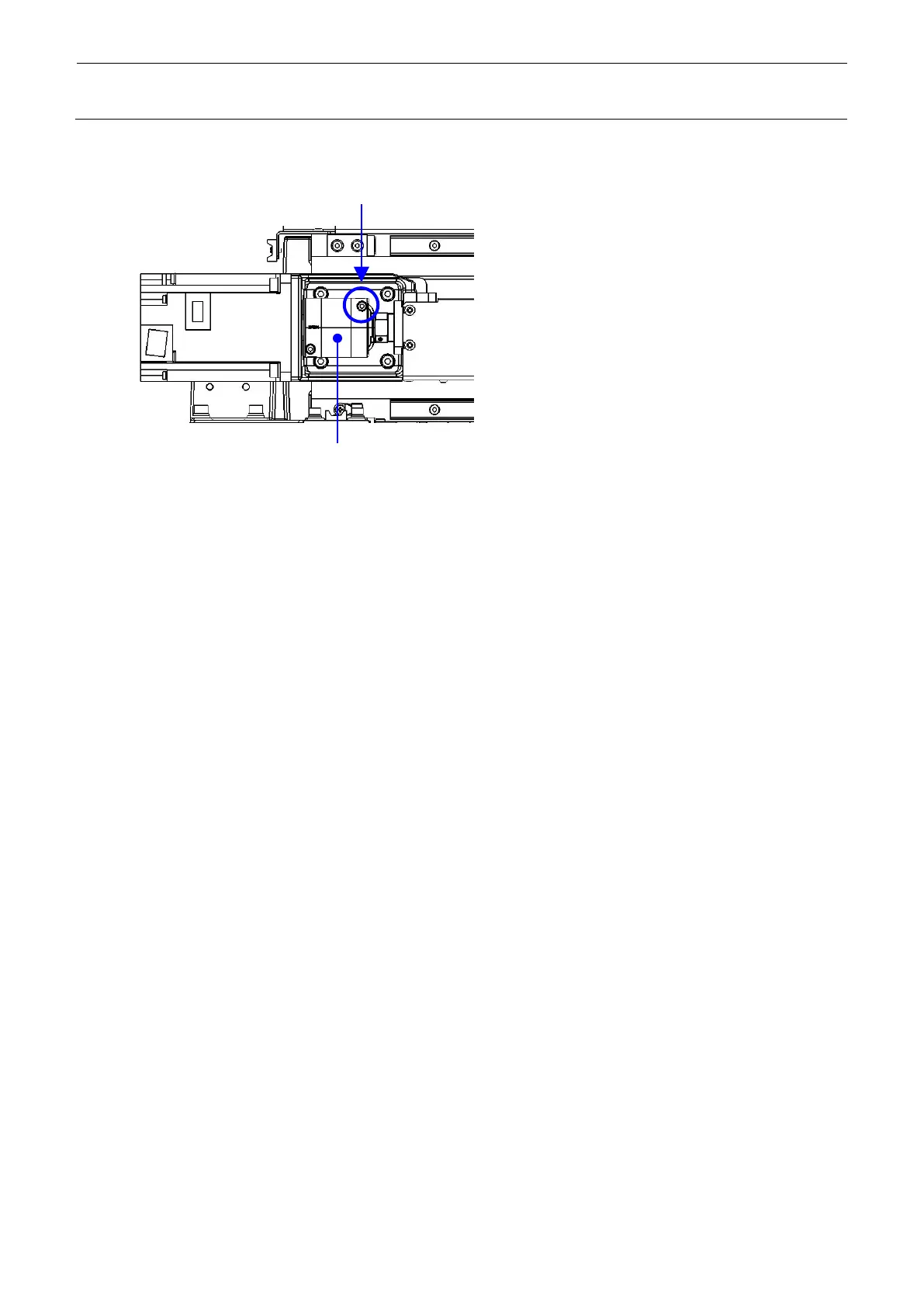

(7) Tighten the screw of the coupling_X. (Screw tightening torque: 3.7 [N⋅m])
(8) Mount the X_OIL_GUARD.
Mount the X_MOTOR cable, the X_OIL_GUARD_F_L and X_OIL_GUARD_U_3010.
(Perform the work in the reverse order of the work described in Chapter 1-6-1.)
(9) Mount the X_FRAME_END_SUPPORT_F. [To be conducted in the RS-1R only.]
Mount the X_FRAME_END_SUPPORT_F.
(Perform the work in the reverse order of the work described in Chapter 1-6-1.)
(10) Readjust the home position rough adjustment and check the operation.
1) Turn ON the power to the machine main unit and perform the home position rough
adjustment.
2) Turn OFF the power to the machine main unit, and then turn it ON again. After that, check
that the machine units return to their home positions.
3) Perform the aging (warm-up_diagonal/high-speed 2) for about 8 hrs.
∗ 8 hrs. are reference value.
