Maintenance Guide

2-7

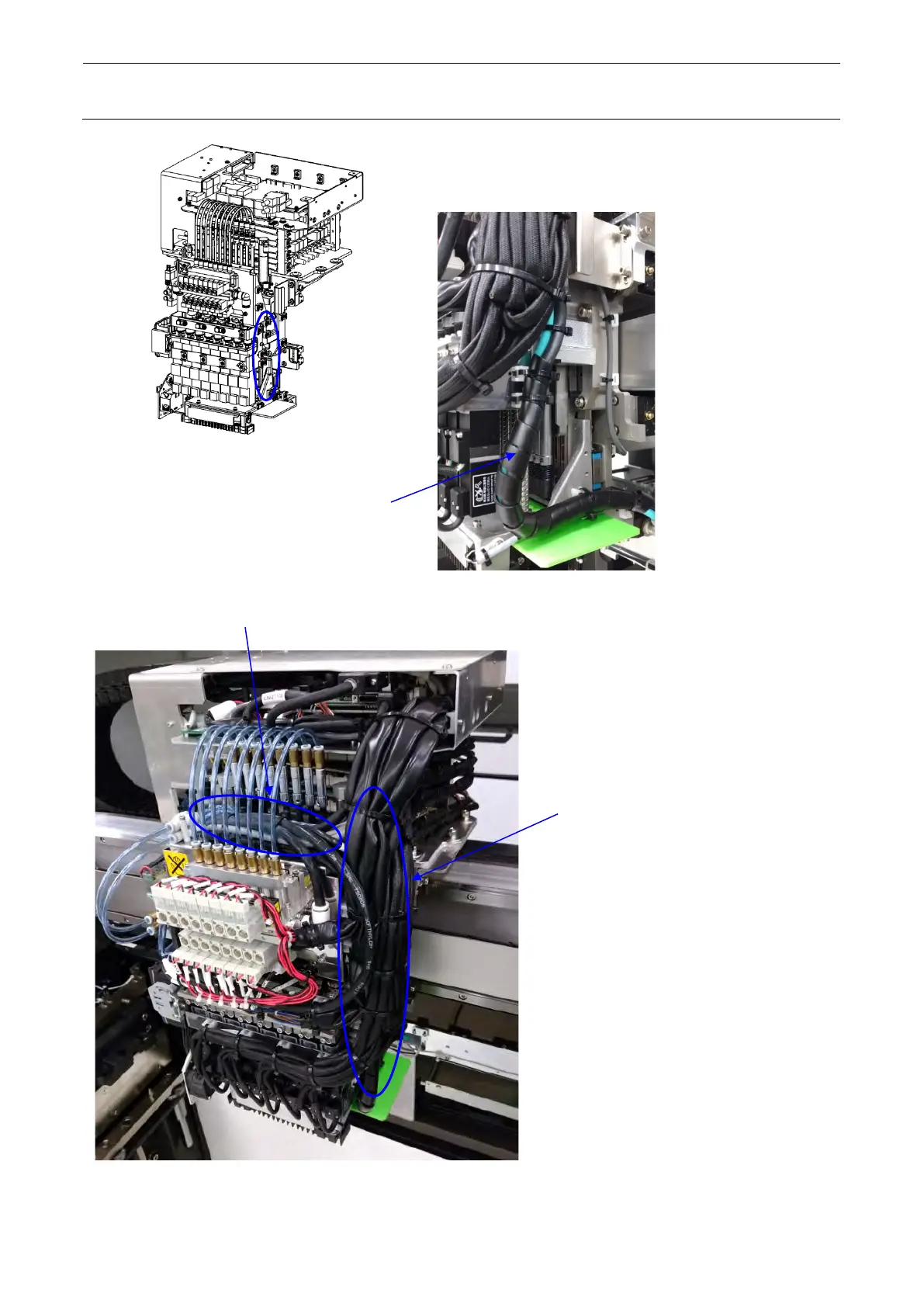

LNC120 cable

(spiral tube)

Cable fixing

(on the head right side)

Cable fixing (on top of head SV bracket)
