Industrial Sewing Machine SADE
31

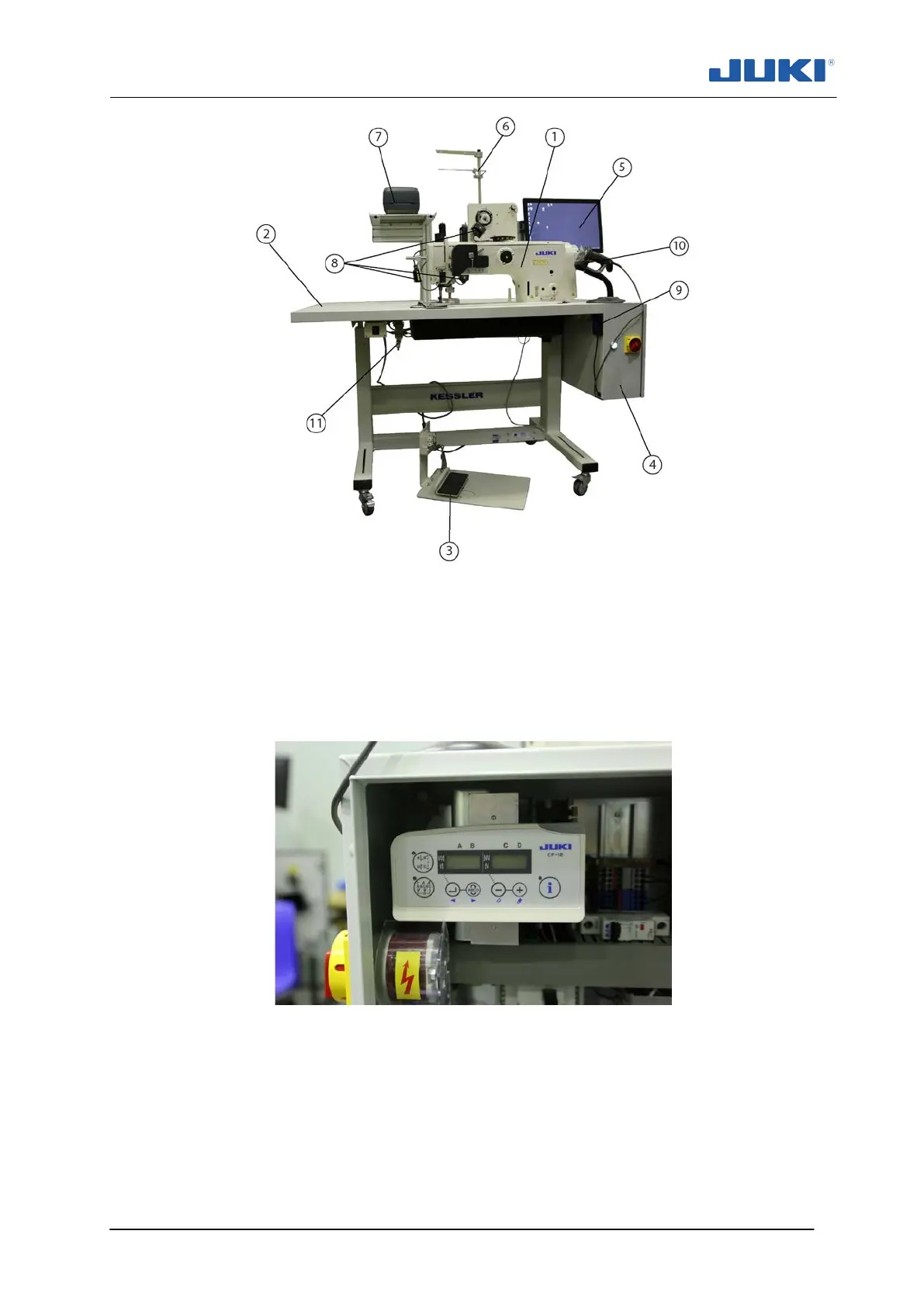

1 – sewing machine head
7 – printer
2 – sewing machine stand
8 – set of laser sensors
3 – pedal switch
9 – card reader
4 – control box
10 – barcode reader
5 – control touch panel
11 – pneumatic regulator
6 – stand for thread spools
Fig. 3. The industrial sewing machine LU-2810-7 SADE - construction
Fig. 4. CP-18 driver
Each operator receives his own identification card. He logs on to a computer program
installed on a machine by a card reader (fig. 3, 9). Detailed description about program
configuration and usage see sections 7.1.2, 7.2 and 7.3.
