Industrial Sewing Machine SADE
91
tinue sewing. An alternative use of this feature is the “Minimum end stitches”-effect. The
operator will be able to end the seam and start a new seam without ending the produc-
tion cycle for as long as the set-point hasn’t been reached;
7.1.2.18 Tension monitor
Before start of the production cycle, these settings will be transmitted to the Juki PLC
control, and evaluated accordingly. Max NOKs or Max NOKs in a row filter can be used
to allow a certain number of successive stitches to be outside tolerance settings. The
BTSR thread tension monitor can be calibrated by the optional software license and a
set of weights and special stand. Please ask your local Juki distributor for details.

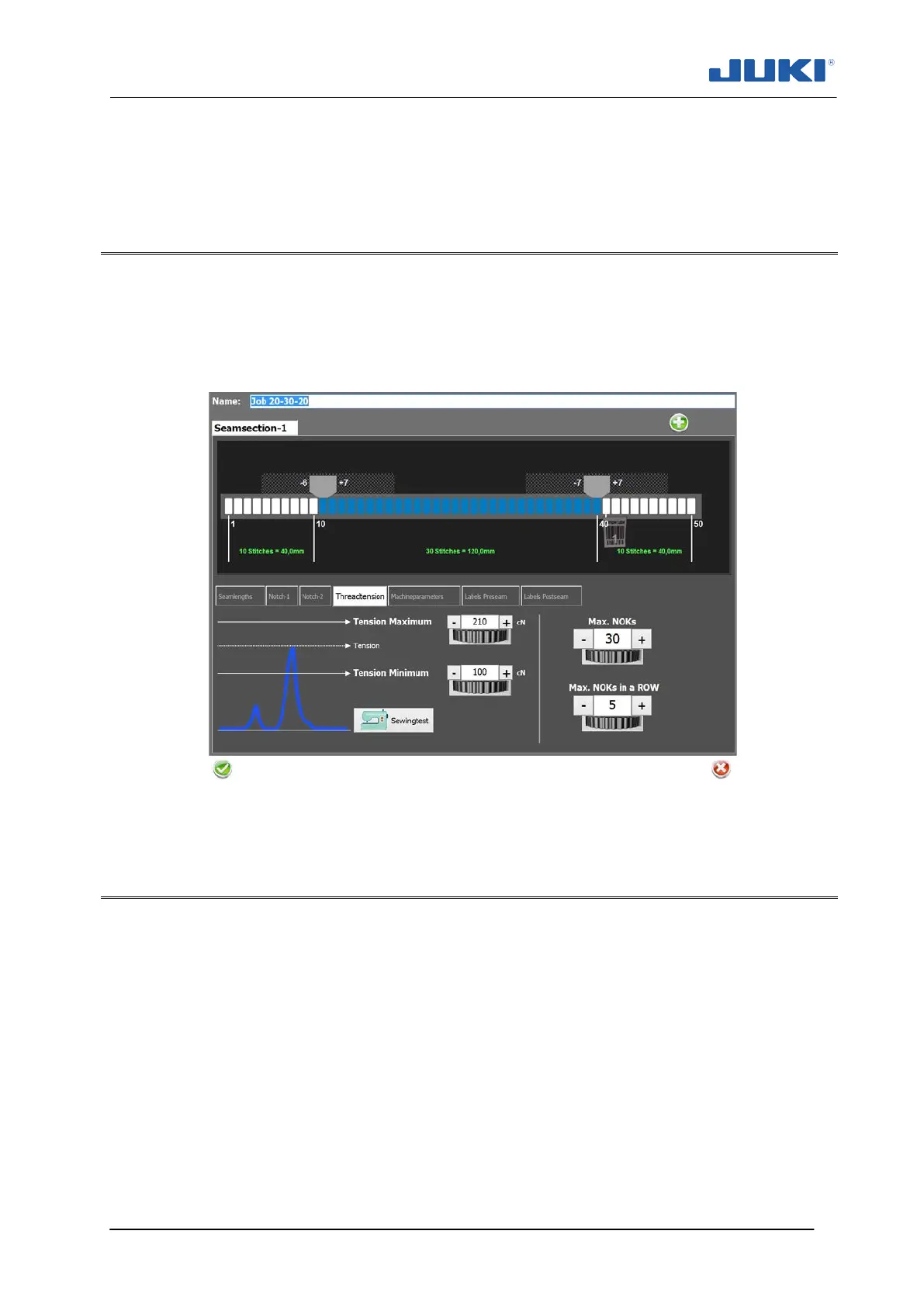

Fig. 63. Tension monitor
7.1.3 Product definition editor
Click on [Products] to access the editor (figure 42, section 7.1.2.7). The following screen
will appear:
