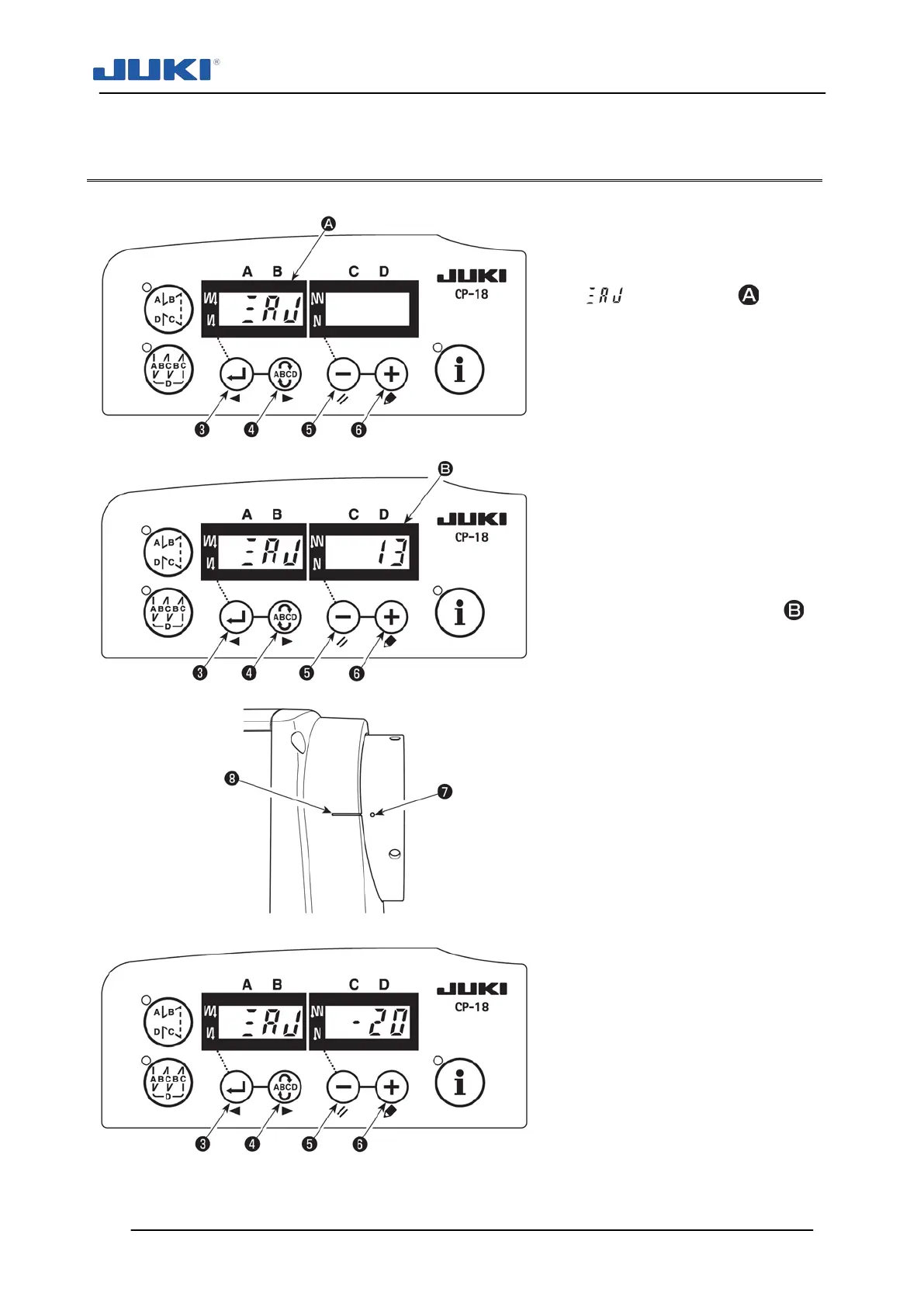

6.11 Adjusting the machine head
1) Simultaneously pressing
switch
❹
and switch
❺
, turn
ON the power switch.
2) is displayed
in the
indicator
and the mode is
changed over to the adjust-
ment mode.
3) Turn the pulley of the machine
head by hand until the main-
shaft reference signal is de-
tected. At this time, the de-
gree
of an angle from the
main-shaft reference signal is
displayed on the indicator .
(The value is the reference
value.)
4) In this state, align one of the
marker dots
❼
on the pulley
with marker line ❽
on the
pulley cover as shown in the
figure.
5) Press switch
❻
to finish the
adjustment work. (The value
is the reference value.)
6) Turn the power OFF.
