Industrial Sewing Machine SADE
43

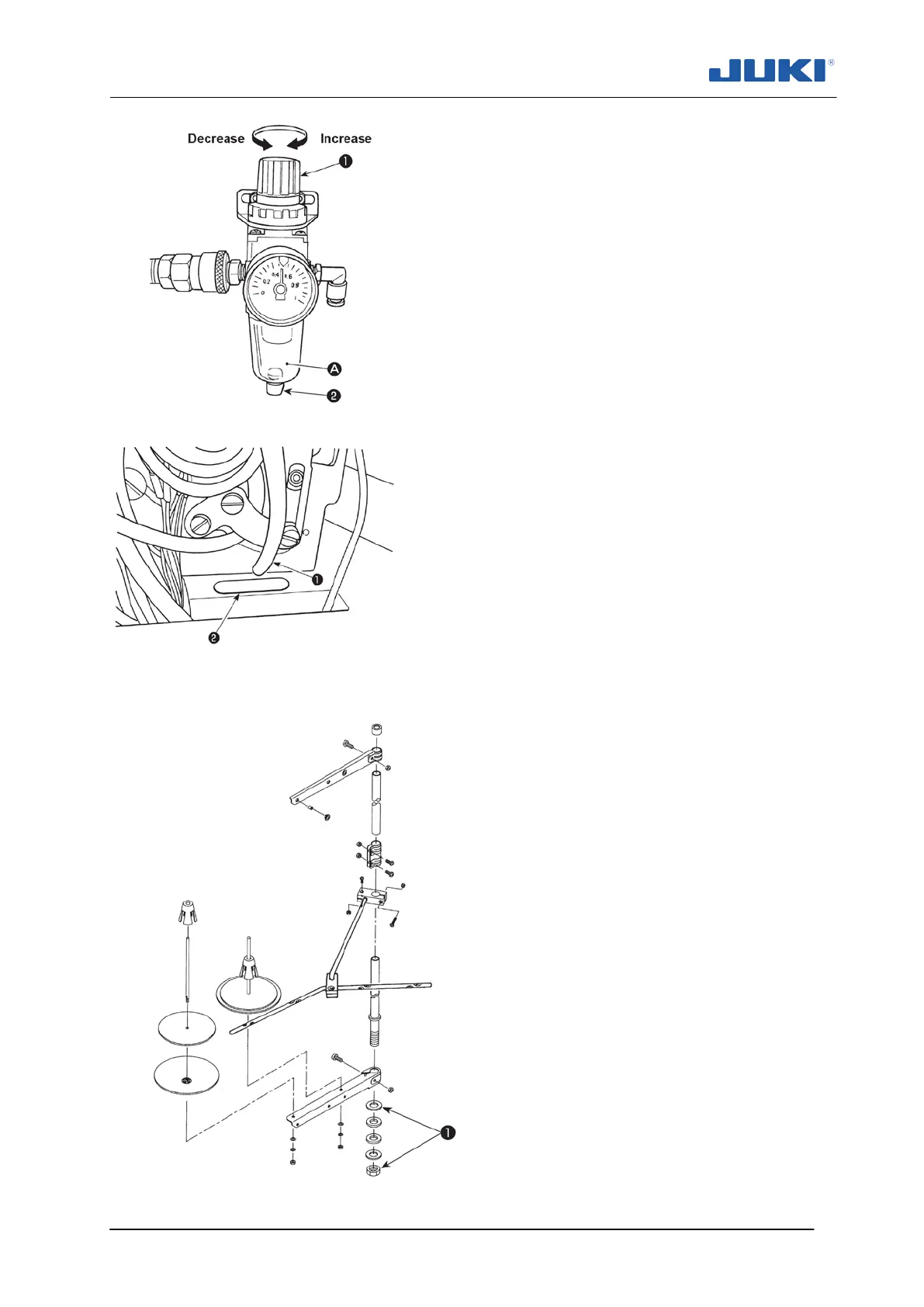

(2) Adjusting the air pressure
1) The
operating air pressure is 0.5 to
0.55 MPa.
Adjust the air pressure using air pres-
sure regulating knob ❶
regulator.
Check whether ø 8 exhaust tube
coming
from the sewing machine passes through
hole ❷ in the table.
In the case of high humidity, water may flow
out from the exhaust tube.
Installing the thread stand
Assemble the thread stand, set it up on the
machine table using the installation hole in the
basis and tighten nut ❶ gently.
The scanners are fixed in places, do not move
them.
