4-10. Replacement and adjustment of tray pulled-out detection (+) switch
Adjust the width of conveyor rails to the minimum, then detach the Y cover, and replace the
sensor.

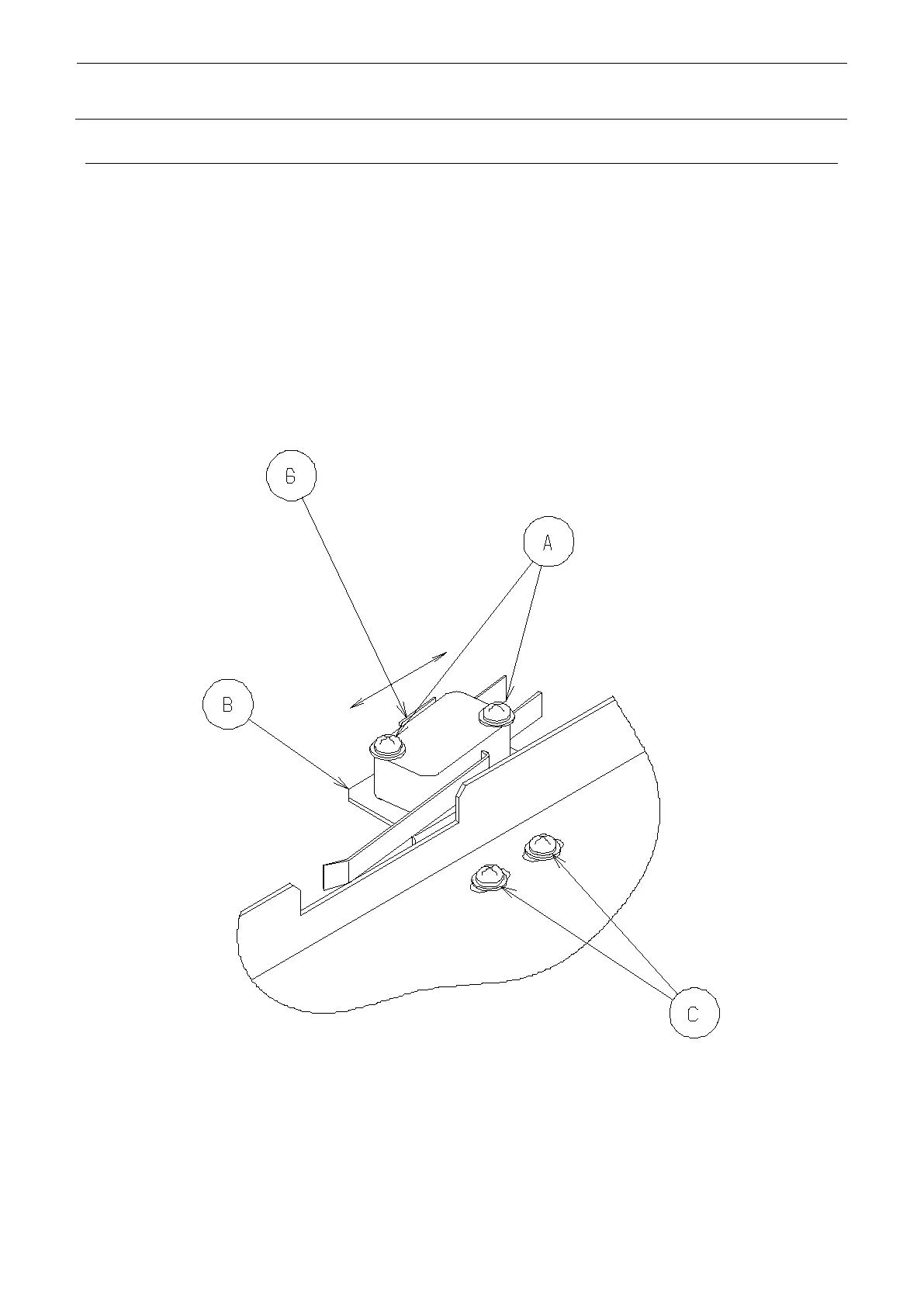

Take out the tray pulled-out detection (+) switch using the mounting screw A, and replace the
switch.
When the replacement is finished, confirm that tray pulled-out detection (+) switch turns ON
while the tray base is kept pulled out.
If it does not turn ON, loosen the mounting screw C, and make adjustment by moving Y tray
switch bracket B in the arrow direction so that the switch will turn ON.
Tray pulled-out detection (+) (part No.: HA001310000)
4-10
