JUKI TR6SNR - 5 ． Replacement and Adjustment of Motors; Layout Diagram of Motors

Maintenance Guide
5-1
5
．
Replacement and Adjustment of Motors

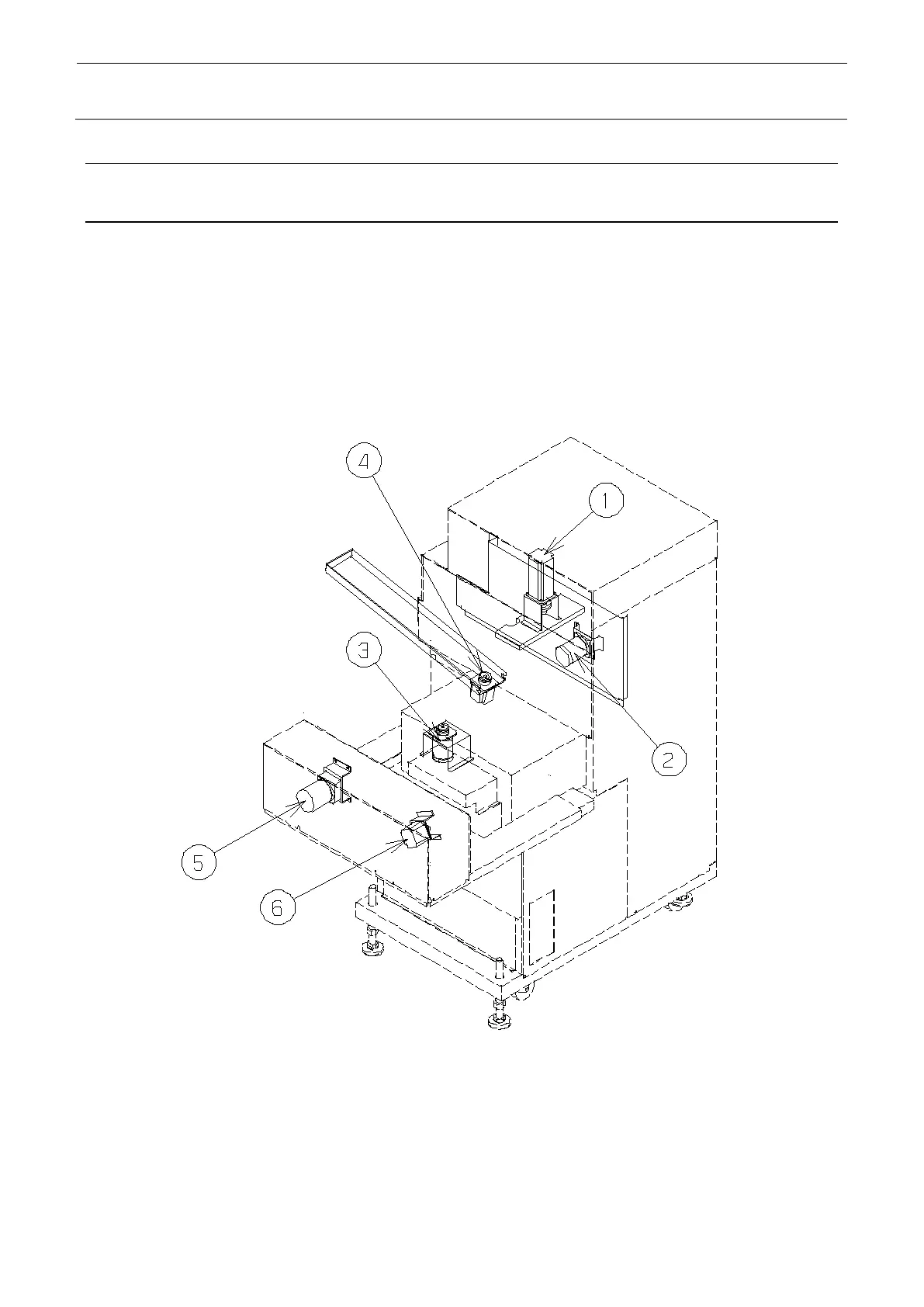

5-1. Layout diagram of motors
 ZM motor (part No.: 40045703)
 X motor ASM (part No.: 40045057)
 Y motor ASM (part No.: 40045060)
 S motor ASM (part No.: 40045063)
 Transfer motor (part No.: 40045718)
 Automatic width adjustment motor (part No.: 40045712)
