7-16. Replacement of shuttle vacuum pad

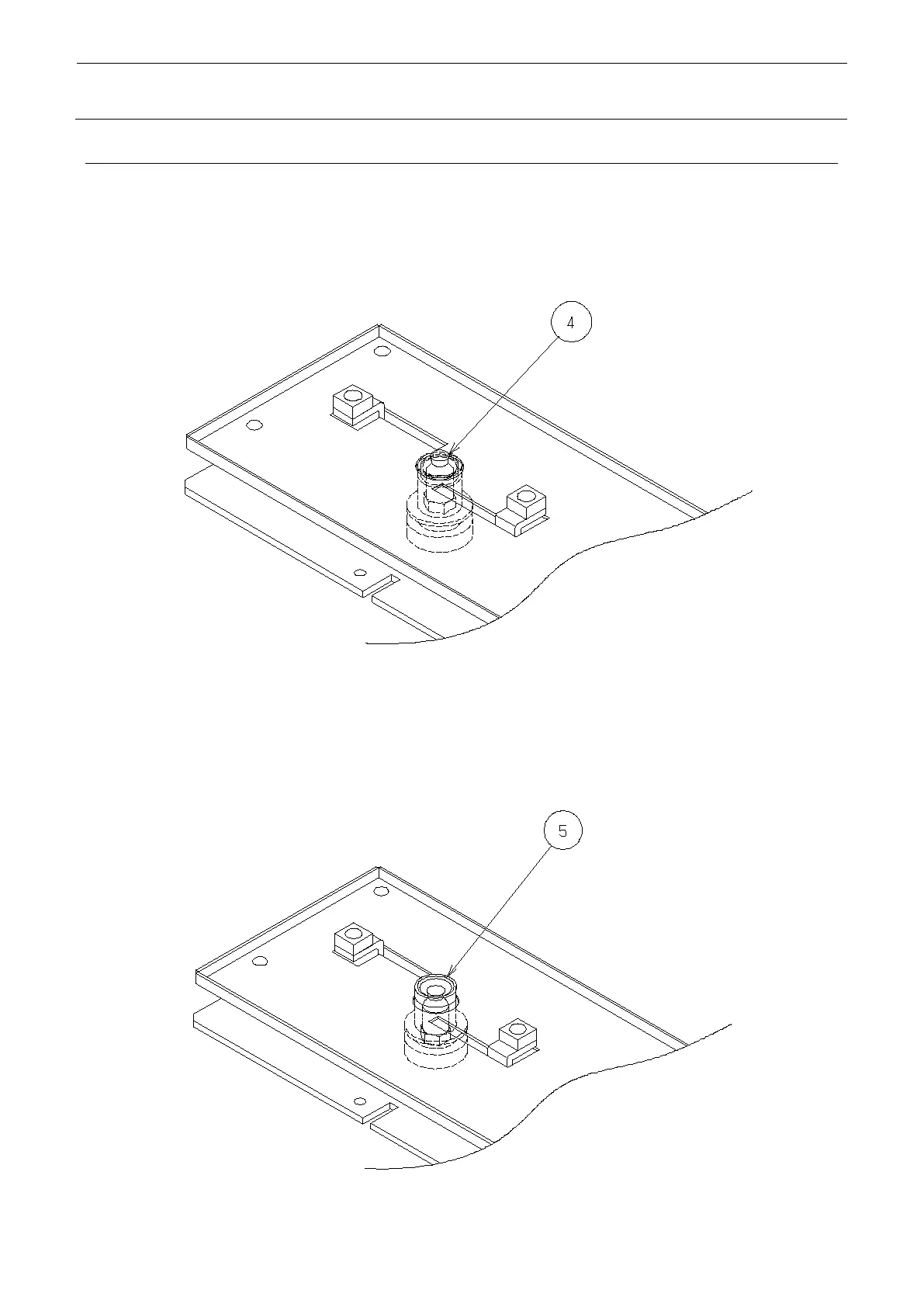

Put a pair of long-nose pliers or other similar tools in the hole of picking pad , and gradually
draw out the body of the picking pad.
Vacuum pad (part No.: PX500060000)
With a large pad having been selected, remove the black rubber portion from the tip.
Note that the surface of which rubber end face is glittering is the polished face, and therefore,
mount the pad so that this surface must be facing upward when replacing the pad.
Rubber ring (part No.: E2151723000)
