JUMO LOGOSCREEN - Page 82

4 Configuration parameters
82

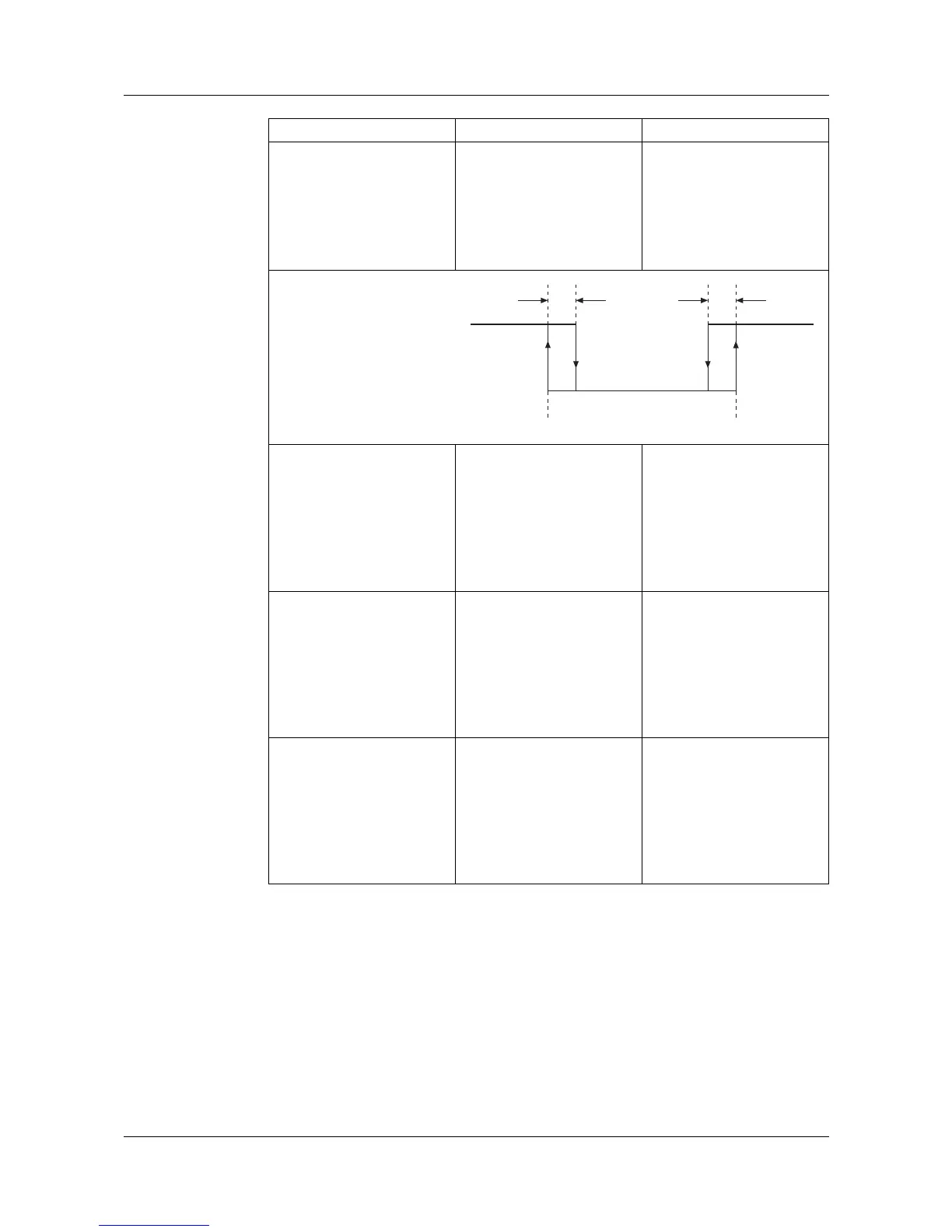

Differential
(hysteresis)
(analog channels,
group 1 — 6)
Configuration
➔ Group config.
➔ Group 1 — 6
➔ Analog channels
➔ Analog channel
1—6
➔ Differential
-99999 to 0 to +99999
(1) = Low limit
(2) = High limit
(3) = Differential
Text low alarm
(analog channels,
group 1 — 6)
Configuration
➔ Group config.
➔ Group 1 — 6
➔ Analog channels
➔ Analog channel
1—6
➔ Text
low alarm
Standard text,
Text 1 — 146,
No text
v Chapter 3.5 “Event list”
v Configuration ➔ Texts,
page 90
Text high alarm
(analog channels,
group 1 — 6)
Configuration
➔ Group config.
➔ Group 1 — 6
➔ Analog channels
➔ Analog channel
1—6
➔ Text
high alarm
Standard text,
Text 1 — 146,
No text
v Chapter 3.5 “Event list”
v Configuration ➔ Texts,
page 90
Alarm delay
(analog channels,
group 1 — 6)
Configuration
➔ Group config.
➔ Group 1 — 6
➔ Analog channels
➔ Analog channel
1—6
➔ alarm
delay
0 — 32767s Alarm delay is activated at
a value of <> 0.
When activated, an alarm
will only be generated
when it has been present
for at least as long as it
takes for the set time to
elapse.
Parameter Value/selection Description
(1)
(2)
(3)
(3)
Alarm ON
Alarm OFF
