4. Determine the required servo/channel:
With 32 output channels available, you can assign channels completely freely. Normally, the channel
with the lowest number will be assigned to the servo because the channel number maps directly to the
channel in the receiver.
CH1: Lifting left.
CH2: Right up and down.
5. Determine which physical input (joystick, knob, slider) to use:
Aileron rocker: aileron.
Lifting rocker: lifting.
6. Programming input:

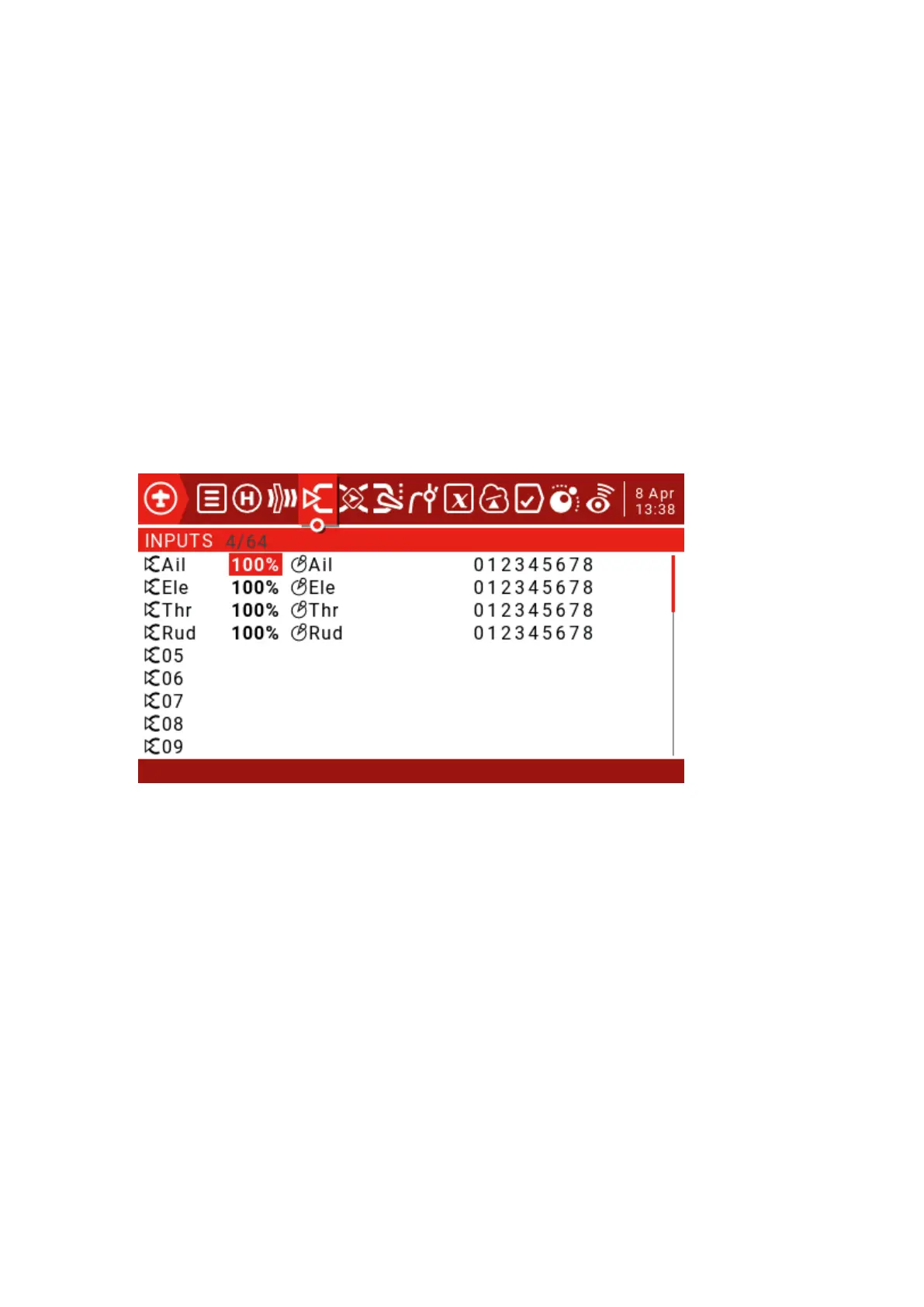

Go to the Inputs page.
Since we only need two Aileron and Elevator inputs, we can delete the other two. Select the option you
want to delete, long press the ENT key to bring up the editing window, then select the Delete option and
press ENT.
