Art. No. SC 1000 KNX

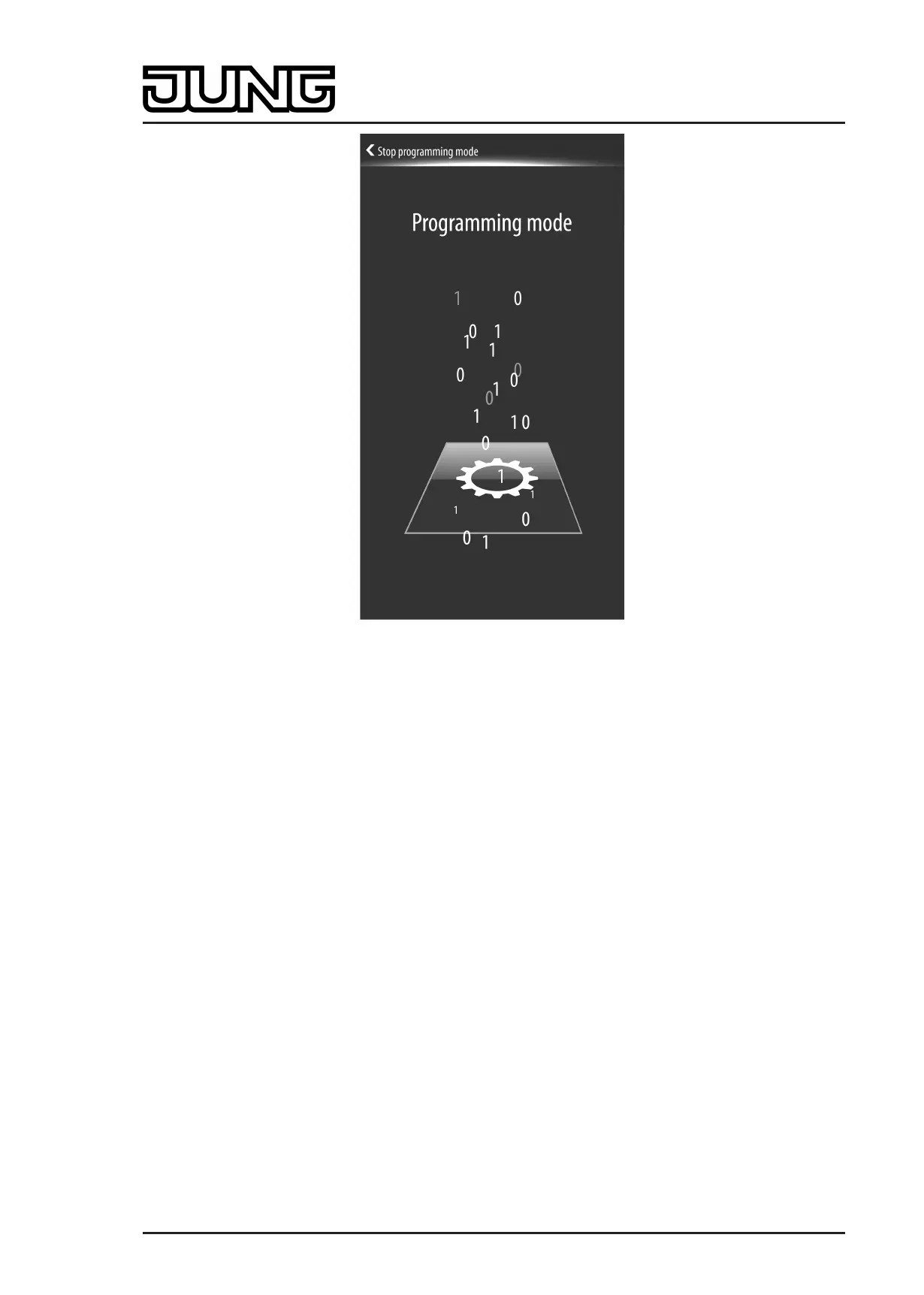

Figure 6: Programming screen
The programming status is terminated automatically after successfully programming the
physical address by the ETS. The device returns to the administrator page or branches to the
main menu level once the return time to the start page has elapsed since activating the
programming mode. If the programming mode was activated via the start page in the as-
delivered state, the display then returns to the start page.
Optionally, the programming mode can also be terminated manually by touching the sensor
surface "Stop programming mode" in the header of the programming screen.
i The push-button extension module does not receive any physical address of its own. It is
activated by the application program loaded in the Smart Control.
Programming the application
ETS3.0version f or ETS4.0.6 or higher is required for commissioning the device. After assigning
the physical address, the application must be programmed into the device using the ETS. The
aforementioned ETS versions detect automatically whether a valid application has already been
previously programmed into the device. To reduce the download time, the whole application is
programmed only if the device was programmed beforehand with another application or with no
application at all. In all other cases, the ETS makes a time-optimised partial download in which
only the modified data is loaded into the device.
During programming of the application data, the device display shows the programming screen
(figure 6).
i After completion of the programming operation, the device stores the new configuration into
the device memory. This operation takes some time. In this state, the device still displays
the programming screen. After this, the device initialises the control and display elements.
In this state, the start screen (figure 8) is displayed. Afterwards, the device is immediately
ready again for operation.
Page 16 of 347
Installation, electrical connection and operation
