Jung Smart Control SC 1000 KNX User Manual

Art. No. SC 1000 KNX
2.2 Device components

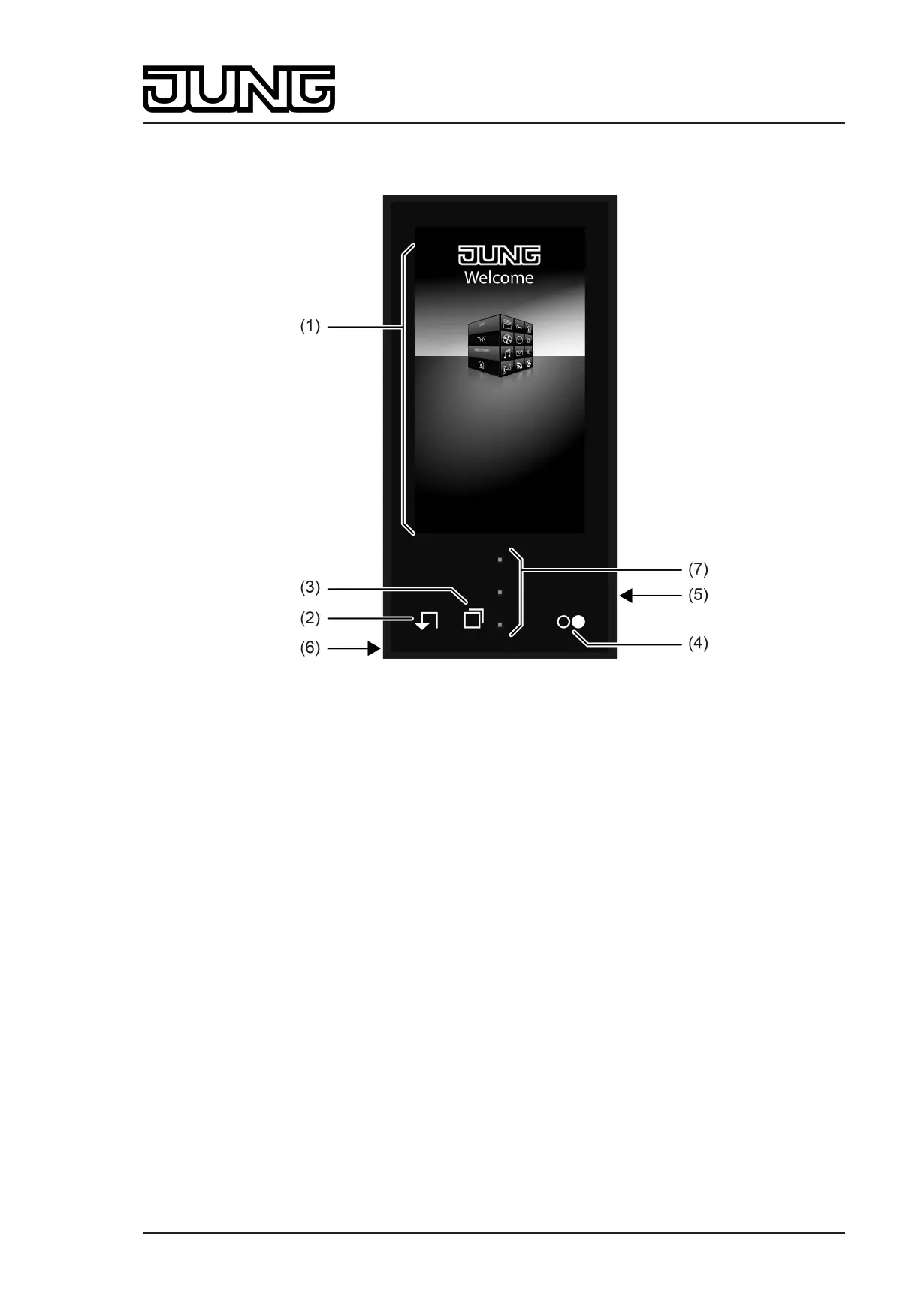

Figure 1: Device components front side
(1) The device has a TFT graphic colour screen (10.9 cm, 800 x 480 pixels) with a
touchscreen sensor surface
(2) Button V "Return" to the start page
(3) Button "Scroll" U in the main menu level
(4) Master button W
(5) Slot for micro SD card
(6) Internal loudspeaker
(7) Operation LED (above), brightness sensor (middle), status LED (below - reserved for future
applications)
Page 9 of 347

Installation, electrical connection and operation

Jung Smart Control SC 1000 KNX Specifications

General

Brand	Jung
Model	Smart Control SC 1000 KNX
Category	Controller
Language	English
