Jung Smart Control SC 1000 KNX User Manual

Art. No. SC 1000 KNX
2.3 Fitting and electrical connection
DANGER!
Electrical shock on contact with live parts in the installation environment.
Electrical shocks can be fatal.
Before working on the device, disconnect the power supply and cover up live
parts in the working environment.
Mounting and connecting the device

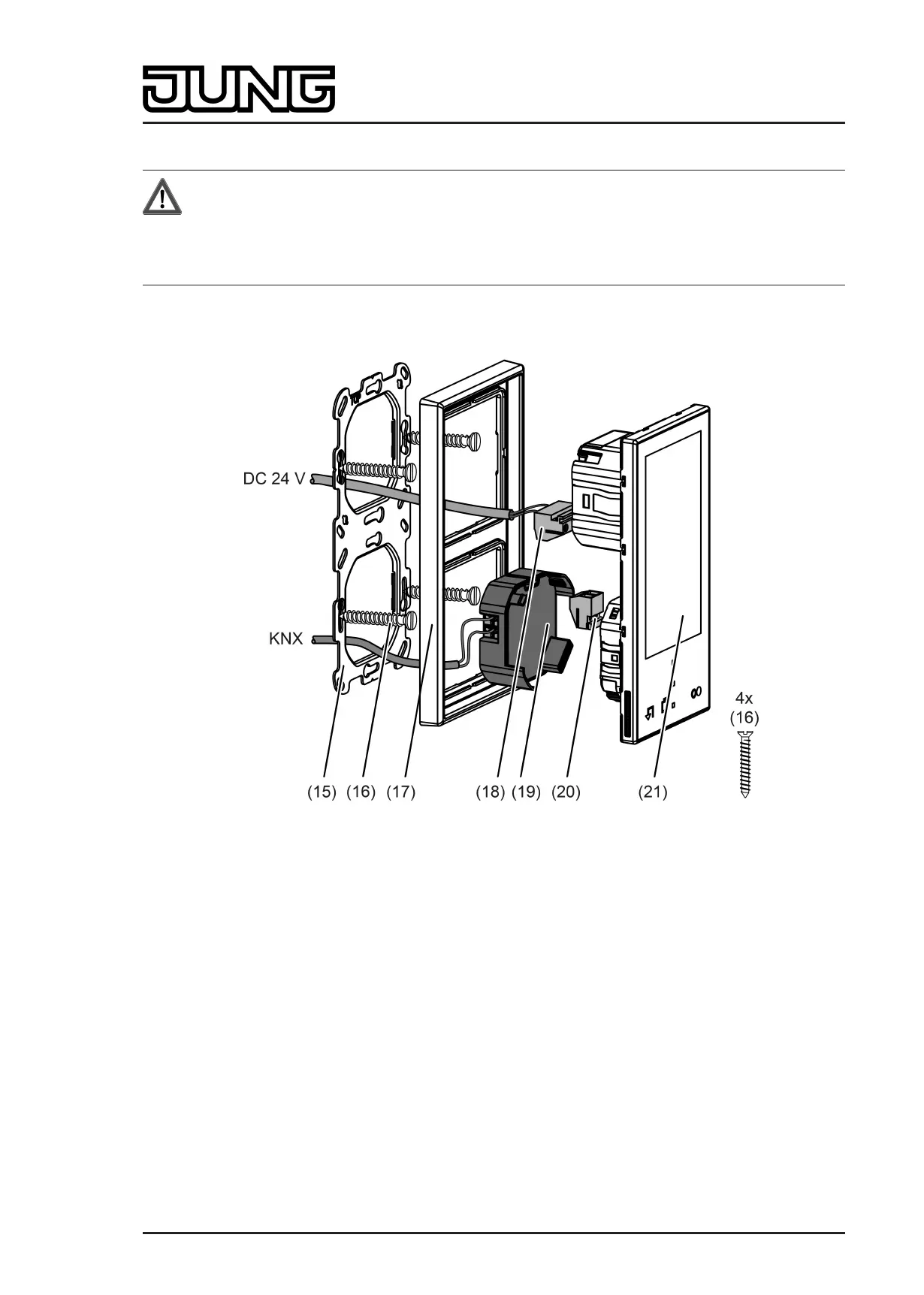

Figure 3: Device fitting with 2-gang supporting frame
(15) Supporting frame 2-gang
(16) Box screws
(17) Design frame
(18) Connection terminals for external power supply
(19) KNX communication module
(20) Terminals for future extension
(21) Smart Control
Recommended installation height: 1.40 m
Installation in two flush-mounted appliance boxes or in double appliance box. Use 2-gang
supporting frame from the scope of supply of the Smart Control.
Installation solely with frame from the LS ranges or FD design.
o Mount supporting ring (15) in the right orientation on the appliance boxes. Note marking
TOP. Use the enclosed box screws (16).
Page 11 of 347

Installation, electrical connection and operation
