4.2.4.5 Room temperature controller page
Definition and function
The device offers the option of displaying specific functions for the operation of the room
temperature controller on a special page. In this view, the channel functions "Operating mode
switchover", "Setpoint shift" and "Fan controller" can be shown clearly and on one page
(figure 107).

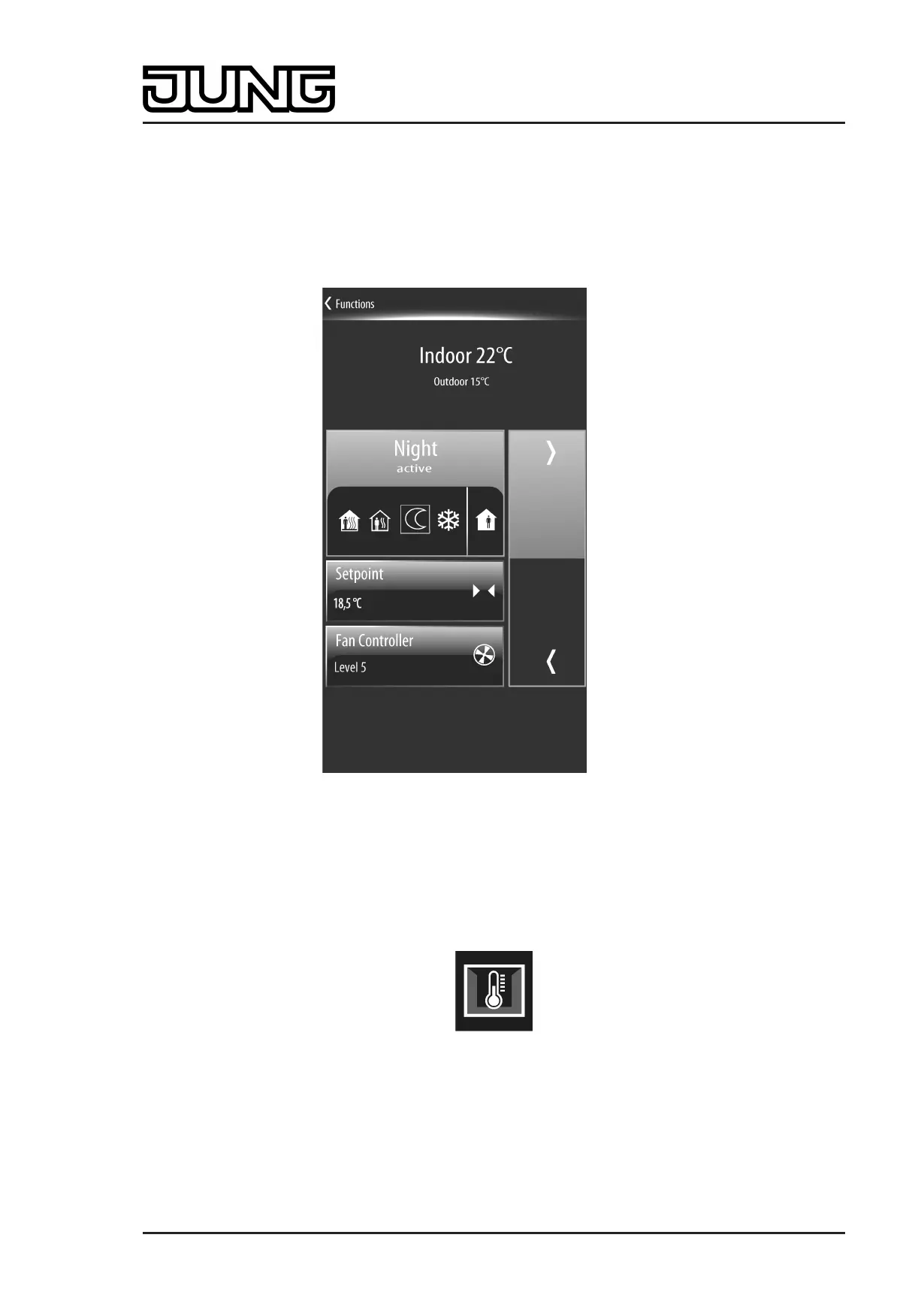

Figure 107: Example of a room temperature controller page (here with active channel function
"Operating mode switchover")
This room temperature controller page can be opened via the function page of the device, if
enabled in the parameters. On the function page, the room temperature controller page has a
separate display icon (figure 108), which is displayed in its own tile. Selection is carried out in
the same manner, for example calling up the timer or the weather station.
Figure 108: Status icon of the room temperature controller page
i The project planning of the three functions "Operating mode switchover, internal" (see
page 109-110), "Setpoint shift, internal" (see page 111) and "Fan controller, internal" (see
page 113-114) is carried out, as described, in the "Display" and "Room temperature
control" parameter nodes.
Page 224 of 347
Software "Smart Control 501511"
Functional description
