Jung Smart Control SC 1000 KNX - Page 66

Art. No. SC 1000 KNX

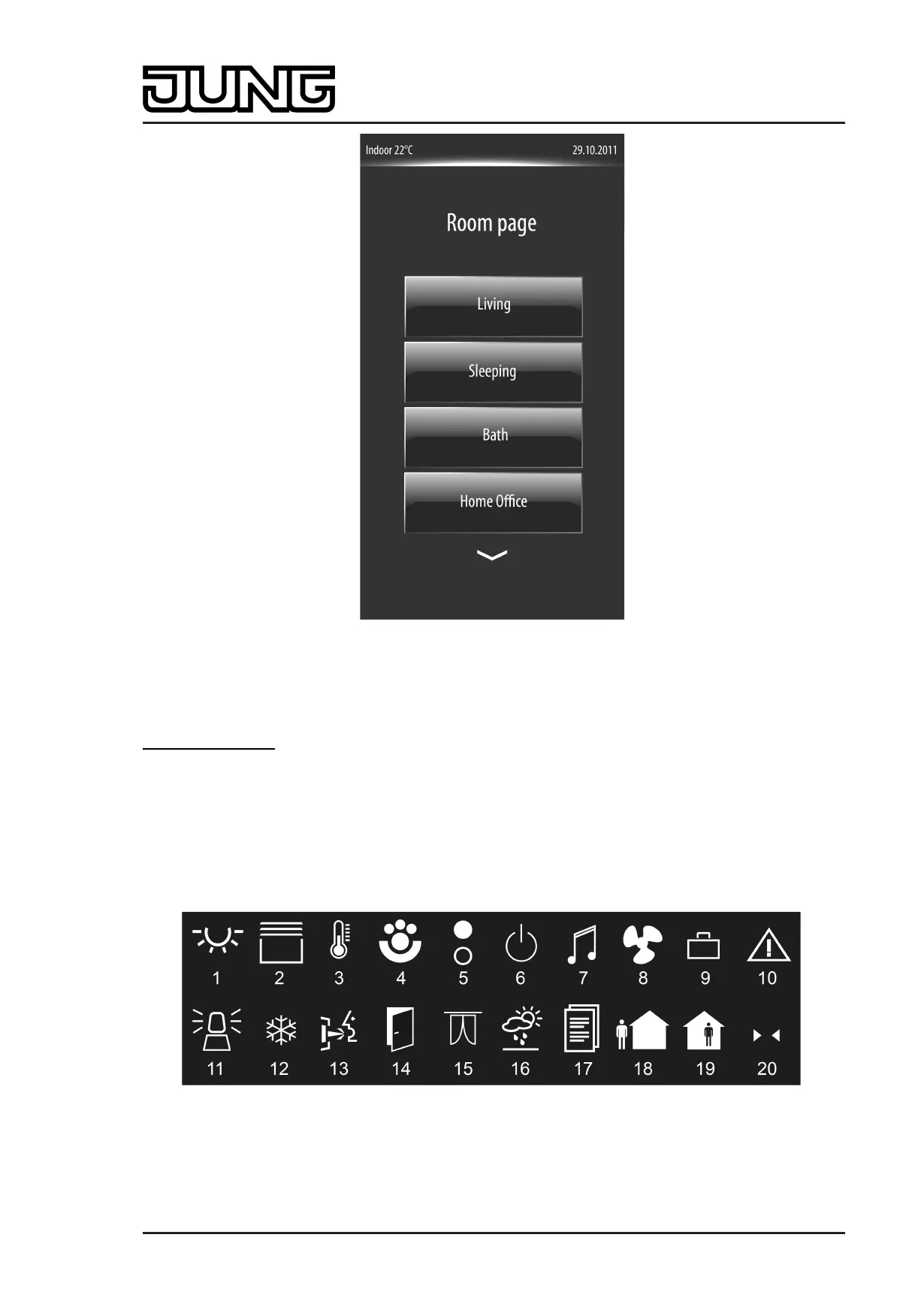

Figure 11: Example of a room page
The function page
Each controllable KNX channel is allocated to a function unit (light, shading, heating, ...). Up to
8 function units are available for assignment. The first 4 function units are enabled as standard
and defined as follows: Function unit 1 = "Light", Function unit 2 = "Venetian blind", Function
unit 3 = "Temperature", Function unit 4 = "Scenes". The designation and the symbol of the
function unit can be adapted according to the user. It is possible to plan 4 additional function
units as an option and configure them with freely definable names in the ETS. A display icon
must be assigned to each user-defined function unit. A collection of 20 symbols is available in
the ETS for this purpose (figure 12).
Figure 12: Assignable symbols for the function units
Page 66 of 347
Software "Smart Control 501511"
Functional description
