Art. No. SC 1000 KNX

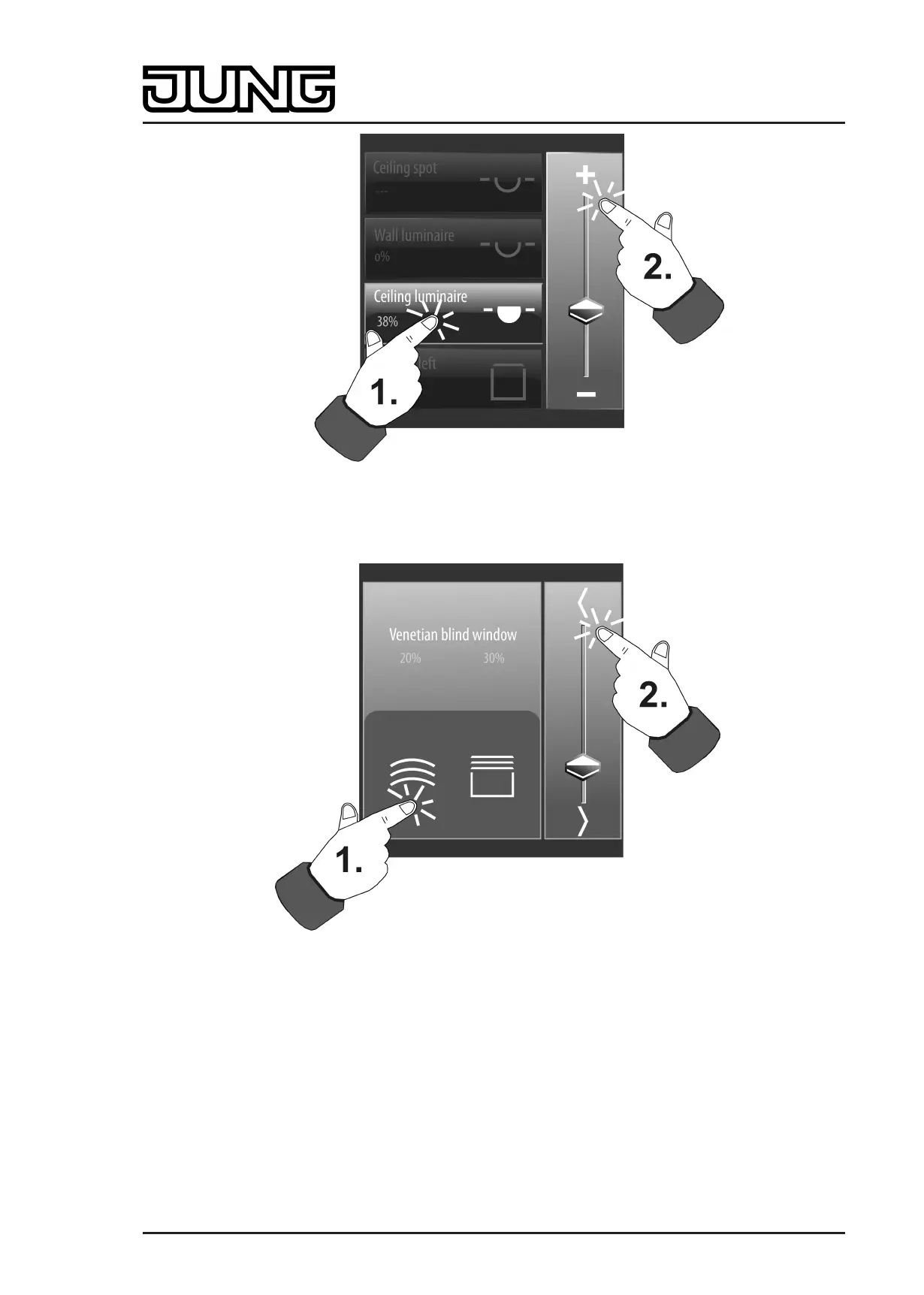

Figure 23: Example of a selection operation on the start or favourite page
(here: Channel function "dimming (brightness value)")
Figure 24: Example of a selection operation on the room or function page
(here: Channel function "Venetian blind/shutter (position)")
i A KNX channel, for example, can be visible on the start page and on a room page. It is
quite possible to activated such a channel on the start page by direct operation and on the
room page by selection operation. The configured KNX function, i.e. the actual control
command, thus remains unchanged.
i For the channel functions "dimming (brightness value)" and "Venetian blind/shutter
(position)" the brightness value or blind/slat position can be changed continuously in the
selection operation by a value slider. It should be noted here that for a direct operation no
slider is available for continuously changing the value or position! Here, a value can be
adjusted to the value transmitter levels configured in the ETS by means of a long top-
bottom operation (rocker function) of the sensor surfaces.
Page 77 of 347
Software "Smart Control 501511"
Functional description
