Art. No. SC 1000 KNX

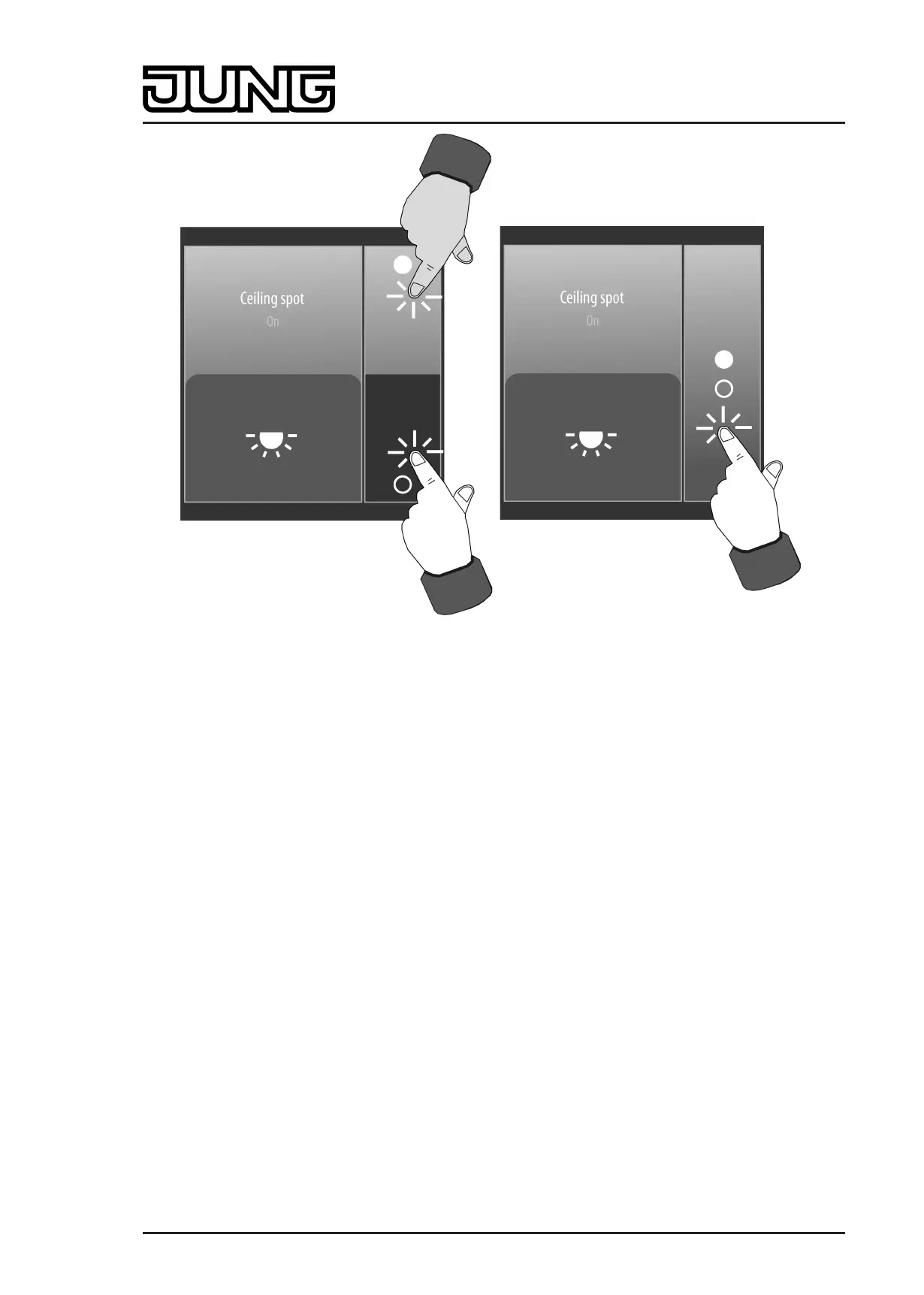

Figure 26: Example of sensor evaluation for selection operation (channel function: Switching)
left: rocker / right: button
i The sensor areas of a button or rocker are labelled with icons that indicate the command
executed when touched. These operating icons are dependent on the configured channel
function. Both figures above show the operating icons of the Switching channel function as
a example ( e = ON / \ = OFF). These icons are also used to identify an operation of other
channel functions that execute a definite command as a push-button function (e.g. recall a
light scene or value).
Other channel functions display varying operating icons (Dimming / Setpoint shift / Fan
controller: Z / ^, Venetian blind: < / >, Slat: Y / X).
i Operating icons always indicate the two operational sensor areas of a rocker switch (top /
bottom). Consequently, two icons are then always visible. For a button the visibility of the
operating icons is dependent on the operation concept (direct operation / selection
operation) and on the configured channel function. Thus, two operating icons at the top and
bottom in the sensor surface of a button can quite possibly be visible (e.g. Dimming Start/
Stop with +/-), touching this sensor surface indicates the button response, however (e.g.
TOGGLE).
The commands transmitted to the bus during operation of a button or rocker switch are
predefined for some functions, for other functions the command can be configured in the ETS
(figure 27).
Page 79 of 347
Software "Smart Control 501511"
Functional description
