Jung Smart Control SC 1000 KNX User Manual

Art. No. SC 1000 KNX

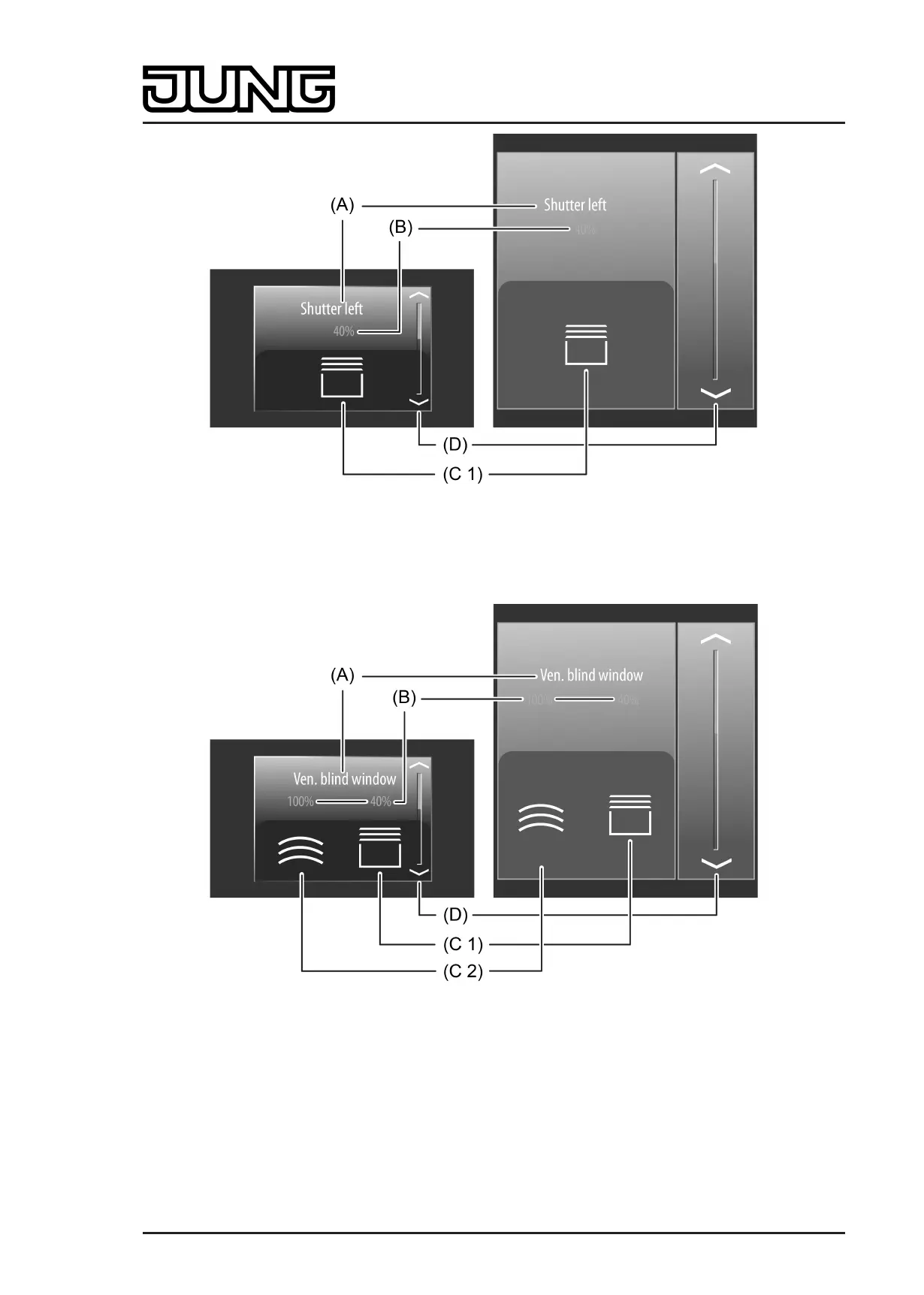

Figure 33: Example of an operating and display element of the channel function
"Venetian blind/shutter (Step/Move/Step)" and the "rolling shutter" shading method
left: direct operation / right: selection operation
Figure 34: Example of an operating and display element of the channel function
"Venetian blind/shutter (Step/Move/Step)" and the "rolling shutter" shading method
left: direct operation / right: selection operation
(A) Text name
(B) Status value
(C1) Status icon blind (configurable)
(C2) Status icon slat (only with Venetian blind)
(D) Bar graph in the sensor area
Page 90 of 347
Software "Smart Control 501511"
Functional description
