Juniper ACX7348 - Air Filter Unit

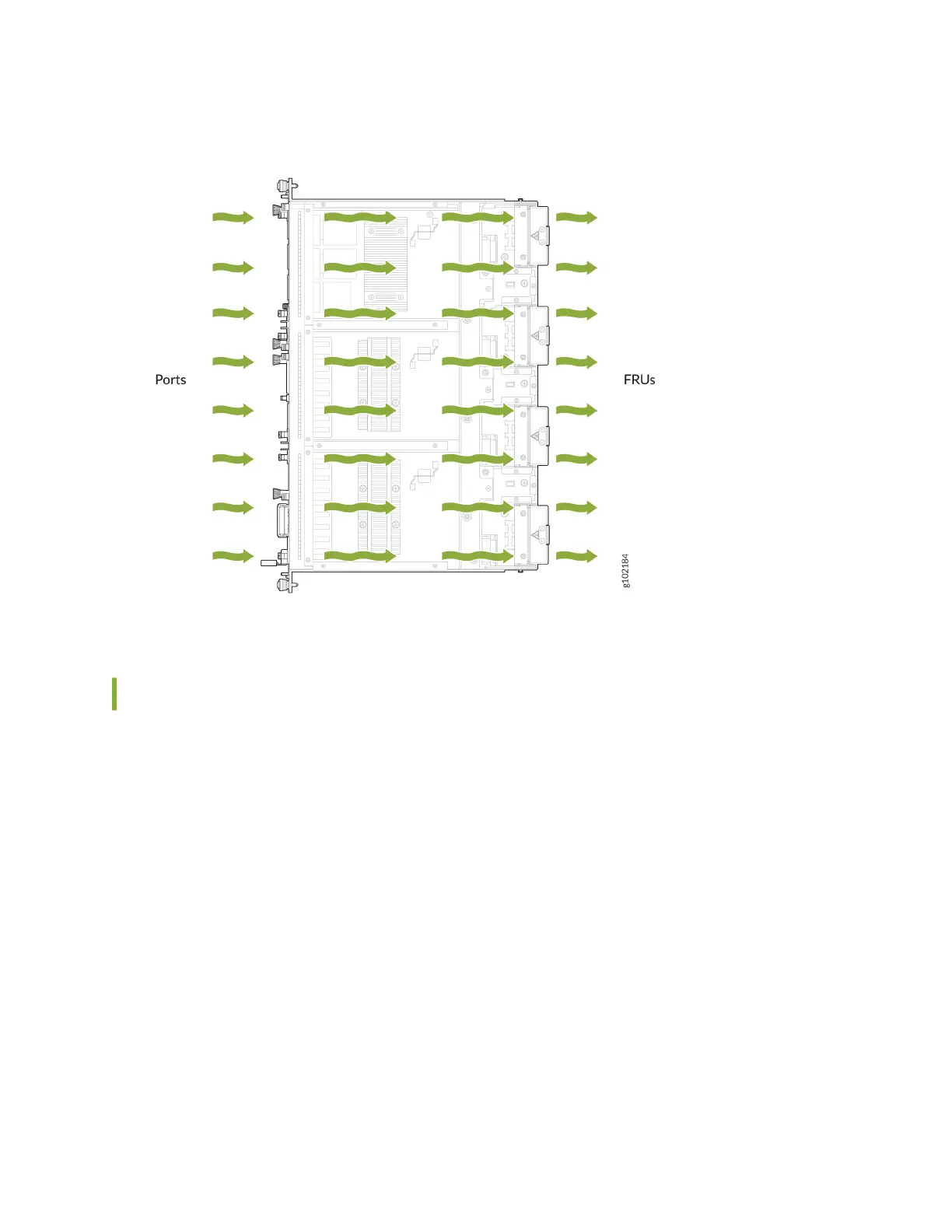

Figure 9: Airow Through the Chassis
Air Filter Unit
The air lter unit consists of four parts: the outer lter cover, the air lter, the inner cage, and the side
brushes. The air lter sits right inside the outer lter cover and the inner cage. The air lter unit is
installed in the front of the chassis and is secured to the rack rails by capve screws.
20
