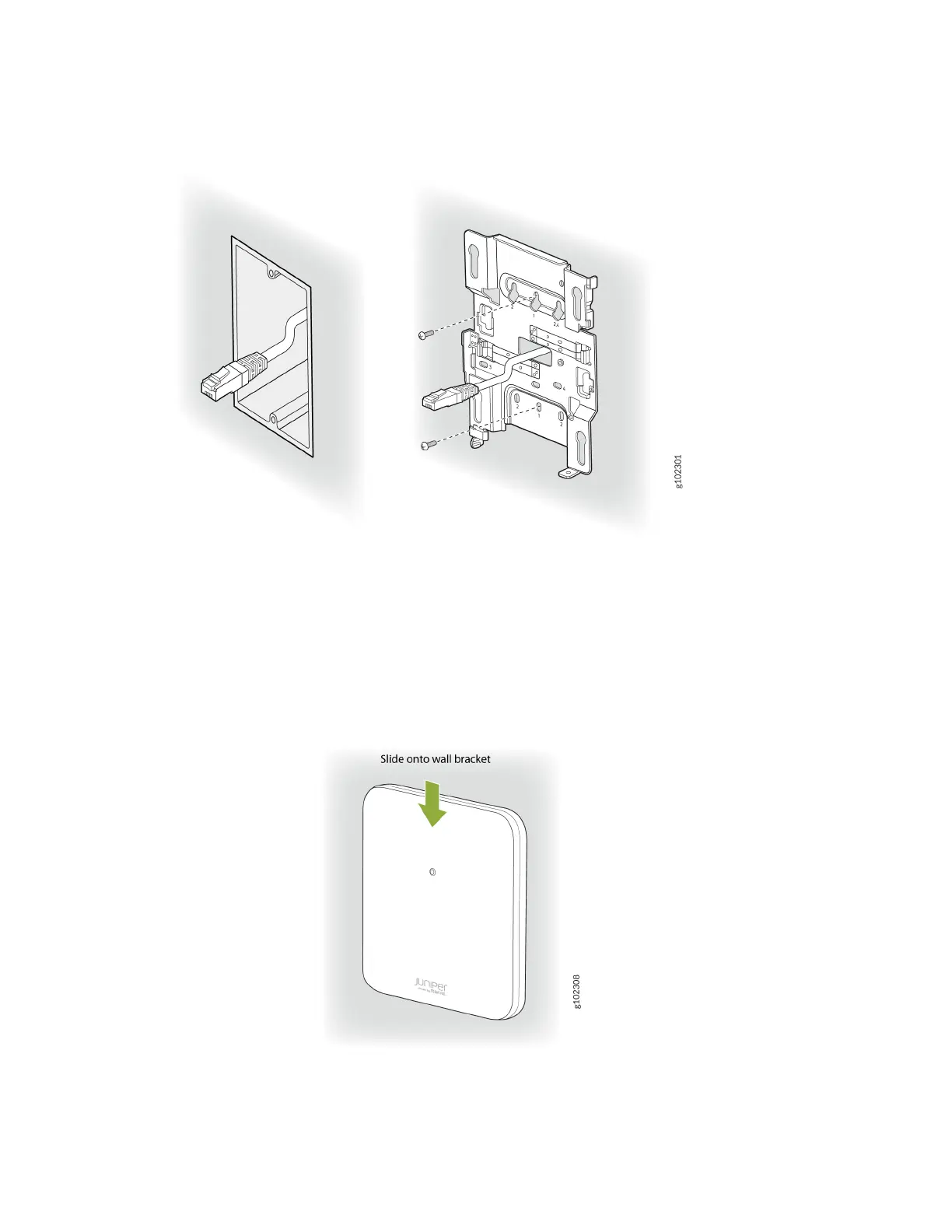

Figure 4: Aach the APBR-U Mounng Bracket to the Single-Gang Juncon Box
2. Extend the Ethernet cable through the bracket.
3. Posion the AP such that the shoulder screws on the AP engage with the keyholes of the mounng
bracket. Slide and lock the AP in place.
Figure 5: Mount the AP on the Single-Gang Juncon Box
