Mount an Access Point on a US 4-Inch Square Juncon Box
To mount an access point (AP) on a US 4-in. square juncon box:
1. Aach the mounng bracket to the 4-in. square juncon box by using two screws. Ensure that you
insert the screws in the holes marked 3 as shown in Figure 10 on page 24.

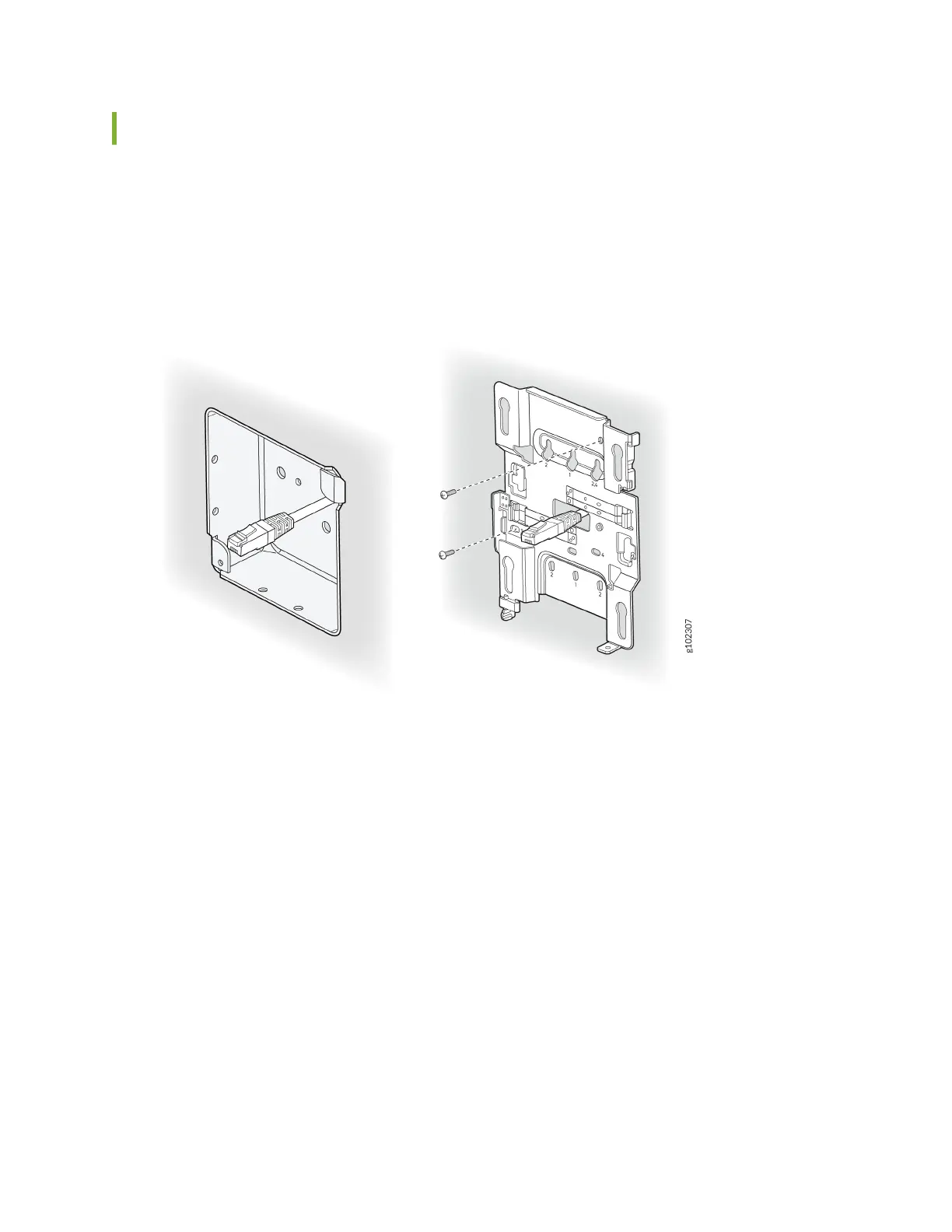

Figure 10: Aach the Mounng Bracket (APBR-U) to a US 4-Inch Square Juncon Box
2. Extend the Ethernet cable through the bracket.
3. Posion the AP such that the shoulder screws on the AP engage with the keyholes of the mounng
bracket. Slide and lock the AP in place.
24
