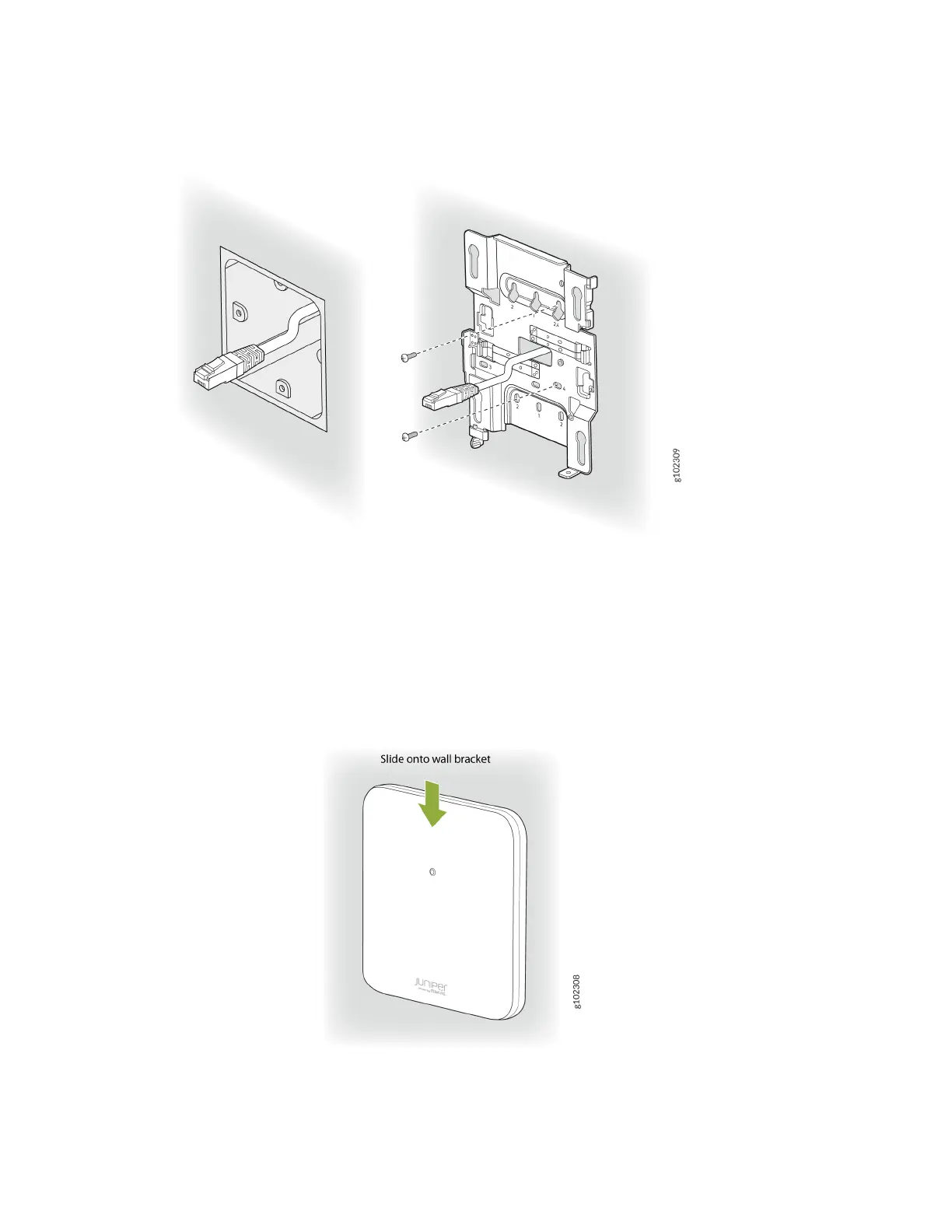

Figure 8: Aach the APBR-U Mounng Bracket to an EU Juncon Box
2. Extend the Ethernet cable through the bracket.
3. Posion the AP such that the shoulder screws on the AP engage with the keyholes of the mounng
bracket. Slide and lock the AP in place.
Figure 9: Mount an Access Point on an EU Juncon Box
23
