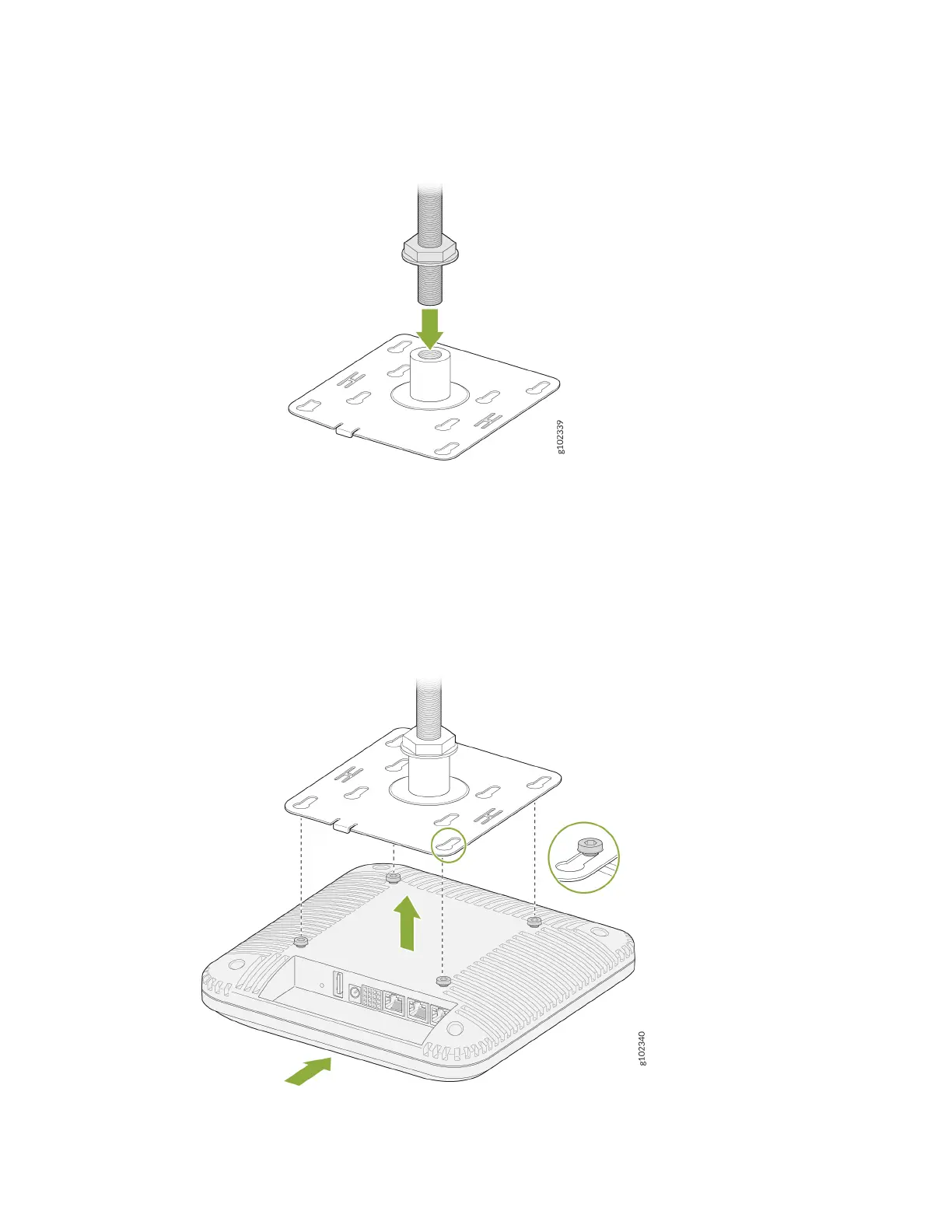

Figure 31: Aach the APBR-T58 Bracket to a 16-mm Threaded Rod
2. Install four shoulder screws on the AP if the AP did not ship with shoulder screws installed.
3. Posion the AP such that the shoulder screws on the AP engage with the keyholes of the mounng
bracket. Slide and lock the AP in place.
Figure 32: Mount the AP32, AP33, AP41, or AP43 on a 16-mm Threaded Rod
