Juniper CTP2024 User Manual

CHAPTER 2
CTP2000 Series Interface Modules
•
CTP2000 Serial Interface Modules on page 11
•
CTP2000 T1/E1 Interface Module on page 12
•
CTP2000 Compression Interface Module on page 12
•
CTP2000 Compression 2 High Density Interface Module on page 13
•
CTP2000 4WE&M Interface Module on page 14
•
CTP2000 2W-FXS and 2W-FXO Interface Modules on page 19
•
CTP2000 8P-IRIG Interface Module on page 25
•
CTP2000 Clock Interface Modules on page 25
CTP2000 Serial Interface Modules
The Juniper Networks CTP2008, CTP2024, and CTP2056 Circuit to Packet platforms
have up to one, three, and seven serial interface modules, respectively. The interface
modules are interchangeable between the platforms.
The following interface modules have two 100-pin connectors similar to the connectors
provided on the CTP1004 and CTP1012 platforms. Each connector provides four ports
by means of the quad cable. (See “Cabling the CTP2000 Platform Overview” on page 101.)
The lowest-numbered ports start at the top right.
•
CTP2000 IM-8P—Provides the standard software-configurable data interfaces,
including EIA530, EIA530A, RS-232, and V.35; 8 port.
•
CTP2000 IM-8P-T1—Provides the standard software-configurable data interfaces,
plus a configurable T1/E1 interface; 8 port.
•
CTP2000 IM-8P-V—Provides the standard software-configurable data interfaces,
plus a configurable 4WTO interface; 8 port.

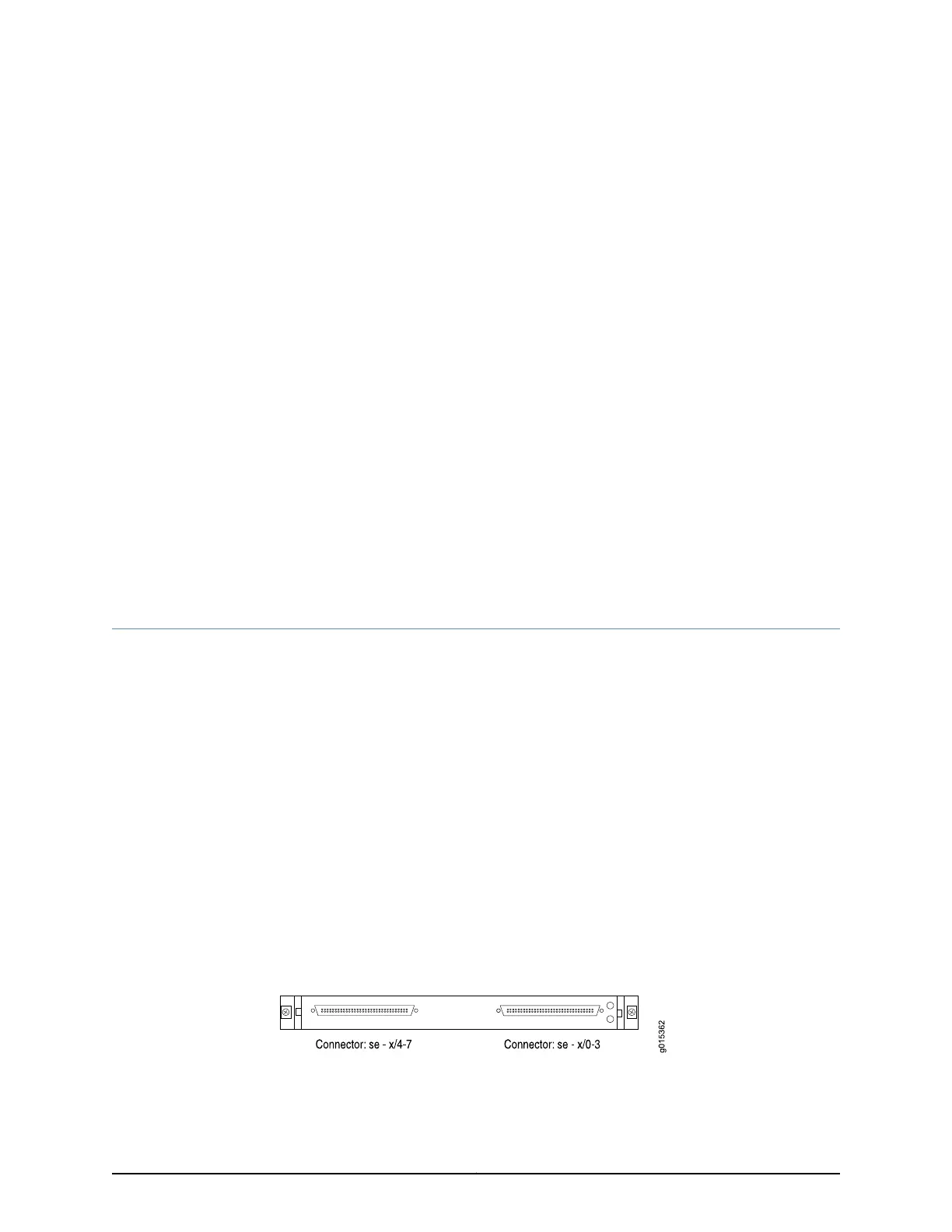

Figure 11: Sample Serial Interface Module
Related
Documentation
CTP2000 T1/E1 Interface Module on page 12•
11Copyright © 2017, Juniper Networks, Inc.
