Flow control: Xon/Xoff
•
Parity: none

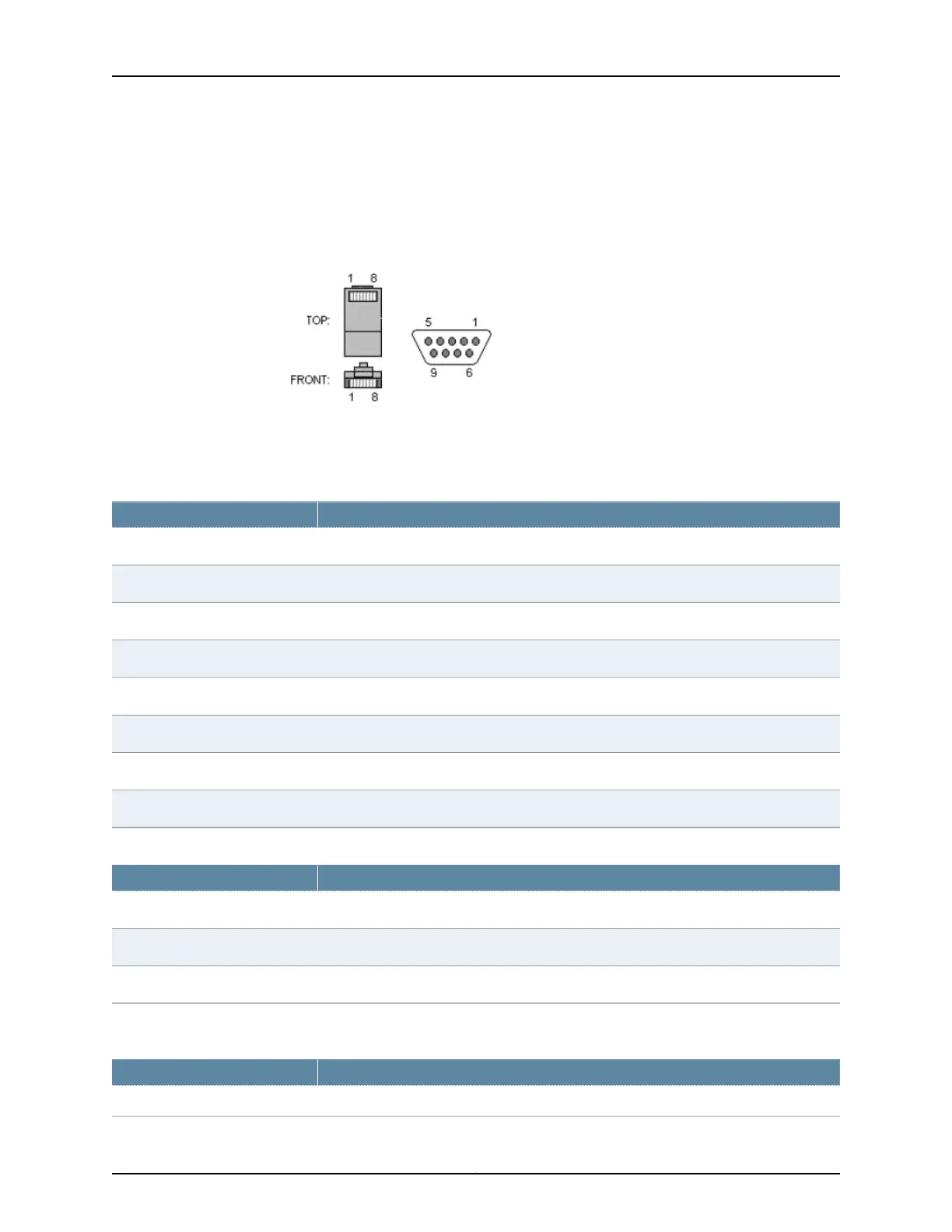

Figure 29: CTP2000 Series Console Cable Pin Configurations for PP310
and PP332 Processors
Table 20 on page 59 and Table 21 on page 59 list console cable pinouts for CTP2000
Series devices based on the pin configurations.
Table 20: CTP2000 Series Console Cable Pinouts for PP310 and PP332 Processors
Console DB-9 PinCTP RJ-45 Pin
8 CTS1 RTS
6 DSR2 DTR
5 GND3 TXD
2 RXD4 GND
3 TXD5 GND
1 DCD6 (tied to pin 7) RXD
4 DTR7 DSR
7 RTS8 CTS
Table 21: CTP2000 Series Console Cable (p/n 720-071594) Pinouts for the PP833 Processor
DB-9 MaleUSB Console Connector
3 TXD2 RXD
2 RXD3 TXD
5 GND4 GND
Table 22: DB9-to-RJ45 Adapter (p/n 450-071855) Pinouts for Connecting PP833 Processor
with Console
DB-9RJ-45
5 GND3 TXD
59Copyright © 2017, Juniper Networks, Inc.
