Juniper MX80 Hardware Guide

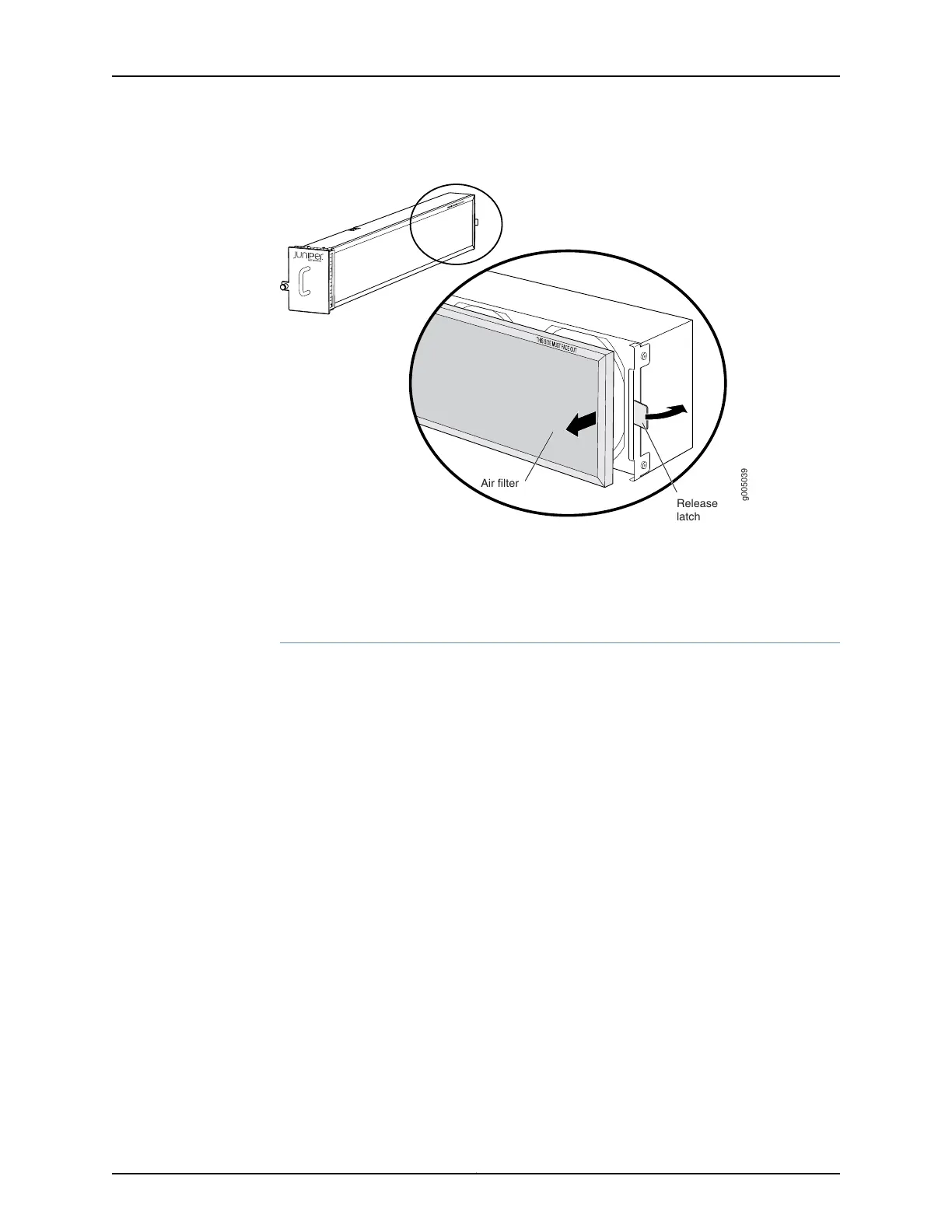

Figure 39: Removing the Air Filter
g005039
Air filter
Release
latch
See Also Preventing Electrostatic Discharge Damage to an MX5, MX10, MX40, and MX80 Router
on page 146
•
Installing an MX5, MX10, MX40, and MX80 Air Filter
The air filter installs on the right side of the fan tray. To install the air filter (see
Figure 40 on page 101):
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Locate the THIS SIDE MUST FACE OUT label, and ensure that the air filter is right side
up.
3. Insert the air filter into the groove located toward the front of the fan tray.
4. Press the tab on the rear of the fan tray to allow the air filter to slide into place.
5. Release the tab to secure the air filter.
Copyright © 2019, Juniper Networks, Inc.100
MX5, MX10, MX40, and MX80 Universal Routing Platforms Hardware Guide

Juniper MX80 Specifications

General

Model	MX80
Category	Network Router
Throughput	80 Gbps
Power Supply	AC or DC
Operating System	Junos OS
Memory	4 GB
Height	1U
